Socket Head Cap Screws - Scroll down to Request a Quote




Nominal Screw Size 0000 thru 00 0 thru 12 1/4 thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., incl. -0.01 -0.02 -0.03
Over 1/2 to 1 in., incl. -0.02 -0.03 -0.03
Over 1 to 2 in., incl. - -0.06 -0.06
Over 2 in. - -0.09 -0.09
    May also be available in other thread pitches and alternative materials.

Socket Head Cap Screws Variations

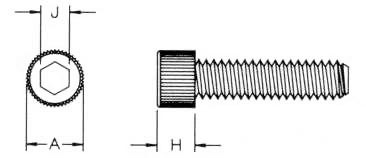

Description A H J Key Eng. Min. Length Thread Size Quote
2-56 X 3/32 .132 - .142 .080 - .090 5/64 .038 .093 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 1/8 .132 - .142 .080 - .090  5/64 .038 .125 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 3/16 .132 - .142 .080 - .090  5/64 .038 .187 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 1/4 .132 - .142 .080 - .090 5/64 .038 .250 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 9/32 .132 - .142 .080 - .090 5/64 .038 .281 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 5/16 .132 - .142 .080 - .090 5/64 .038 .312 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 3/8 .132 - .142 .080 - .090 5/64 .038 .375 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 7/16 .132 - .142 .080 - .090 5/64 .038 .437 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 1/2 .132 - .142 .080 - .090 5/64 .038 .500 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 9/16 .132 - .142 .080 - .090 5/64 .038 .562 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 5/8 .132 - .142 .080 - .090 5/64 .038 .625 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 3/4 .132 - .142 .080 - .090 5/64 .038 .750 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 7/8 .132 - .142 .080 - .090 5/64 .038 .875 256 Request for Quote on Hex Socket Cap Mach. Screws
2-56 X 1 .132 - .142 .080 - .090 5/64 .038 1.00 256 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 3/32 .175 - .182 .107 - .112 3/32 .050 .093 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1/8 .175 - .182 .107 - .112 3/32 .050 .125 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 3/16 .175 - .182 .107 - .112 3/32 .050 .187 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1/4 .175 - .182 .107 - .112 3/32 .050 .250 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 9/32 .175 - .182 .107 - .112 3/32 .050 .281 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 5/16 .175 - .182 .107 - .112 3/32 .050 .312 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 3/8 .175 - .182 .107 - .112 3/32 .050 .375 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 7/16 .175 - .182 .107 - .112 3/32 .050 .437 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1/2 .175 - .182 .107 - .112 3/32 .050 .500 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 9/16 .175 - .182 .107 - .112 3/32 .050 .562 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 5/8 .175 - .182 .107 - .112 3/32 .050 .625 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 11/16 .175 - .182 .107 - .112 3/32 .050 .687 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 3/4 .175 - .182 .107 - .112 3/32 .050 .750 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 7/8 .175 - .182 .107 - .112 3/32 .050 .875 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1 .175 - .182 .107 - .112 3/32 .050 1.00 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1-1/8 .175 - .182 .107 - .112 3/32 .050 1.125 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1-1/4 .175 - .182 .107 - .112 3/32 .050 1.25 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1-3/8 .175 - .182 .107 - .112 3/32 .050 1.375 440 Request for Quote on Hex Socket Cap Mach. Screws
4-40 X 1-1/2 .175 - .182 .107 - .112 3/32 .050 1.50 440 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 3/32 .220 - .230 .130 - .140 7/64 .064 .093 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1/8 .220 - .230 .130 - .140 7/64 .064 .125 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 5/32 .220 - .230 .130 - .140 7/64 .064 .156 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 3/16 .220 - .230 .130 - .140 7/64 .064 .187 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1/4 .220 - .230 .130 - .140 7/64 .064 .250 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 5/16 .220 - .230 .130 - .140 7/64 .064 .312 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 3/8 .220 - .230 .130 - .140 7/64 .064 .375 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 7/16 .220 - .230 .130 - .140 7/64 .064 .437 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 0.5 .220 - .230 .130 - .140 7/64 .064 .500 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 5/8 .220 - .230 .130 - .140 7/64 .064 .625 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 11/16 .220 - .230 .130 - .140 7/64 .064 .687 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 3/4 .220 - .230 .130 - .140 7/64 .064 .750 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 7/8 .220 - .230 .130 - .140 7/64 .064 .875 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1 .220 - .230 .130 - .140 7/64 .064 1.00 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1-1/8 .220 - .230 .130 - .140 7/64 .064 1.125 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1-1/4 .220 - .230 .130 - .140 7/64 .064 1.25 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1-1/2 .220 - .230 .130 - .140 7/64 .064 1.50 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1-3/4 .220 - .230 .130 - .140 7/64 .064 1.75 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 1-7/8 .220 - .230 .130 - .140 7/64 .064

1.875

 632 Request for Quote on Hex Socket Cap Mach. Screws
6-32 X 2 .220 - .230 .130 - .140 7/64 .064 2.00 632 Request for Quote on Hex Socket Cap Mach. Screws
6-40 X 1/4 .220 - .230 .130 - .140 7/64 .064 .250 640 Request for Quote on Hex Socket Cap Mach. Screws
6-40 X 3/8 .220 - .230 .130 - .140 7/64 .064 .375 640 Request for Quote on Hex Socket Cap Mach. Screws
6-40 X 3/4 .220 - .230 .130 - .140 7/64 .064 .750 640 Request for Quote on Hex Socket Cap Mach. Screws
6-40 X 1 .220 - .230 .130 - .140 7/64 .064 1.00 640 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1/8 .260 - .270 .157 - .167 9/64 .077 .125 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 3/16 .260 - .270 .157 - .167 9/64 .077 .187 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1/4 .260 - .270 .157 - .167 9/64 .077 .250 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 9/32 .260 - .270 .157 - .167 9/64 .077 .281 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 5/16 .260 - .270 .157 - .167 9/64 .077 .312 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 3/8 .260 - .270 .157 - .167 9/64 .077 .375 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 7/16 .260 - .270 .157 - .167 9/64 .077 .437 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1/2 .260 - .270 .157 - .167 9/64 .077 .500 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 5/8 .260 - .270 .157 - .167 9/64 .077 .625 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 3/4 .260 - .270 .157 - .167 9/64 .077 .750 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 7/8 .260 - .270 .157 - .167 9/64 .077 .875 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1 .260 - .270 .157 - .167 9/64 .077 1.00 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1-1/8 .260 - .270 .157 - .167 9/64 .077 1.125 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1-1/4 .260 - .270 .157 - .167 9/64 .077 1.25 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1-3/8 .260 - .270 .157 - .167 9/64 .077 1.375 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1-1/2 .260 - .270 .157 - .167 9/64 .077 1.50 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 1-3/4 .260 - .270 .157 - .167 9/64 .077 1.75 832 Request for Quote on Hex Socket Cap Mach. Screws
8-32 X 2 .260 - .270 .157 - .167 9/64 .077 2.00 832 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 1/8 .307 - .317 .185 - .195 5/32 .090 .125 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 3/16 .307 - .317 .185 - .195 5/32 .090 .187 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 1/4 .307 - .317 .185 - .195 5/32 .090 .250 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 5/16 .307 - .317 .185 - .195 5/32 .090 .312 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 3/8 .307 - .317 .185 - .195 5/32 .090 .375 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 1/2 .307 - .317 .185 - .195 5/32 .090 .500 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 5/8 .307 - .317 .185 - .195 5/32 .090 .625 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 3/4 .307 - .317 .185 - .195 5/32 .090 .750 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 1 .307 - .317 .185 - .195 5/32 .090 1.00 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 1-1/4 .307 - .317 .185 - .195 5/32 .090 1.25 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-24 X 1-1/2 .307 - .317 .185 - .195 5/32 .090 1.50 1024 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 1/8 .307 - .317 .185 - .195 5/32 .090 .125 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 3/16 .307 - .317 .185 - .195 5/32 .090 .187 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 1/4 .307 - .317 .185 - .195 5/32 .090 .250 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 5/16 .307 - .317 .185 - .195 5/32 .090 .312 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 3/8 .307 - .317 .185 - .195 5/32 .090 .375 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 1/2 .307 - .317 .185 - .195 5/32 .090 .500 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 5/8 .307 - .317 .185 - .195 5/32 .090 .625 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 3/4 .307 - .317 .185 - .195 5/32 .090 .750 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 7/8 .307 - .317 .185 - .195 5/32 .090 .875 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 1 .307 - .317 .185 - .195 5/32 .090 1.00 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 1-1/4 .307 - .317 .185 - .195 5/32 .090 1.25 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 1-1/2 .307 - .317 .185 - .195 5/32 .090 1.50 1032 Request for Quote on Hex Socket Cap Mach. Screws
10-32 X 2 .307 - .317 .185 - .195 5/32 .090 2.00 1032 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 3/16 .365 - .375 .245 - .255 3/16 .120 .187 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 1/4 .365 - .375 .245 - .255 3/16 .120 .250 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 5/16 .365 - .375 .245 - .255 3/16 .120 .312 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 3/8 .365 - .375 .245 - .255 3/16 .120 .375 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 1/2 .365 - .375 .245 - .255 3/16 .120 .500 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 5/8 .365 - .375 .245 - .255 3/16 .120 .625 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 3/4 .365 - .375 .245 - .255 3/16 .120 .750 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 7/8 .365 - .375 .245 - .255 3/16 .120 .875 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 1 .365 - .375 .245 - .255 3/16 .120 1.00 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 1-1/8 .365 - .375 .245 - .255 3/16 .120 1.125 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 1-1/4 .365 - .375 .245 - .255 3/16 .120 1.25 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 1-1/2 .365 - .375 .245 - .255 3/16 .120 1.50 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 1-3/4 .365 - .375 .245 - .255 3/16 .120 1.75 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 2 .365 - .375 .245 - .255 3/16 .120 2.00 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 2-1/4 .365 - .375 .245 - .255 3/16 .120 2.25 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 2-1/2 .365 - .375 .245 - .255 3/16 .120 2.50 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 2-3/4 .365 - .375 .245 - .255 3/16 .120 2.75 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-20 X 3 .365 - .375 .245 - .255 3/16 .120 3.00 1/4-20 Request for Quote on Hex Socket Cap Mach. Screws
1/4-28 X 3/16 .365 - .375 .245 - .255 3/16 .120 .187 1/4-28 Request for Quote on Hex Socket Cap Mach. Screws
1/4-28 X 1/4 .365 - .375 .245 - .255 3/16 .120 .250 1/4-28 Request for Quote on Hex Socket Cap Mach. Screws
1/4-28 X 3/8 .365 - .375 .245 - .255 3/16 .120 .375 1/4-28 Request for Quote on Hex Socket Cap Mach. Screws
1/4-28 X 3/4 .365 - .375 .245 - .255 3/16 .120 .750 1/4-28 Request for Quote on Hex Socket Cap Mach. Screws
1/4-28 X 1 .365 - .375 .245 - .255 3/16 .120 1.00 1/4-28 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 1/2 .458 - .468 .304 - .314 1/4 .151 .500 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 3/4 .458 - .468 .304 - .314 1/4 .151 .750 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 1 .458 - .468 .304 - .314 1/4 .151 1.00 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 1-1/4 .458 - .468 .304 - .314 1/4 .151 1.25 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 1-1/2 .458 - .468 .304 - .314 1/4 .151 1.50 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 2 .458 - .468 .304 - .314 1/4 .151 2.00 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 2-1/2 .458 - .468 .304 - .314 1/4 .151 2.50 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
5/16-18 X 3 .458 - .468 .304 - .314 1/4 .151 3.00 5/16-18 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 1/2 .549 - .559 .365 - .375 5/16 .182 .500 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 3/4 .549 - .559 .365 - .375 5/16 .182 .750 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 1 .549 - .559 .365 - .375 5/16 .182 1.00 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 1-1/4 .549 - .559 .365 - .375 5/16 .182 1.25 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 1-1/2 .549 - .559 .365 - .375 5/16 .182 1.50 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 2 .549 - .559 .365 - .375 5/16 .182 2.00 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 2-1/2 .549 - .559 .365 - .375 5/16 .182 2.50 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
3/8-16 X 3 .549 - .559 .365 - .375 5/16 .182 3.00 3/8-16 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 1/2 .737 - .747 .491 - .501 3/8 .245 .500 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 3/4 .737 - .747 .491 - .501 3/8 .245 .750 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 1 .737 - .747 .491 - .501 3/8 .245 1.00 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 1-1/4 .737 - .747 .491 - .501 3/8 .245 1.25 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 1-1/2 .737 - .747 .491 - .501 3/8 .245 1.50 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 2 .737 - .747 .491 - .501 3/8 .245 2.00 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 2-1/2 .737 - .747 .491 - .501 3/8 .245 2.50 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
1/2-13 X 3 .737 - .747 .491 - .501 3/8 .245 3.00 1/2-13 Request for Quote on Hex Socket Cap Mach. Screws
5/8-11 X 1 .924 - .934 .615 - .625 1/2 .307 1.00 5/8-11 Request for Quote on Hex Socket Cap Mach. Screws
5/8-11 X 1-1/2 .924 - .934 .615 - .625 1/2 .307 1.50 5/8-11 Request for Quote on Hex Socket Cap Mach. Screws
5/8-11 X 2 .924 - .934 .615 - .625 1/2 .307 2.00 5/8-11 Request for Quote on Hex Socket Cap Mach. Screws
5/8-11 X 2-1/2 .924 - .934 .615 - .625 1/2 .307 2.50 5/8-11 Request for Quote on Hex Socket Cap Mach. Screws
5/8-11 X 3 .924 - .934 .615 - .625 1/2 .307 3.00 5/8-11 Request for Quote on Hex Socket Cap Mach. Screws
!
