Liquid Tight Fittings Straight-Thru, NPT Hubs
-
For use with Corrugated Tubing in trade sizes 3/8˝ through 1˝.
- Nontoxic and UV resistant.
- Rated for NEMA Type 3R applications.
- Easy, permanent assembly between the tubing and fittings: push the tubing over the fitting ferrule until the tubing “clicks” into place.
- Lightweight and lower installed cost.
- Quick and easy installation.
- Suitable for use in high vibration or flexing applications (automotive equipment, fiber optics, computer & peripherals, lab equipment, robotics, etc.).
- Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
- For use in both wet and dry applications.
- If using a tapped hole, Teflon® tape is needed on the threads of the connector, for all other applications an O-ring and Locknut are needed to attain liquid tight.
-
Use of an O-Ring may be required for a complete liquid tight system with a non-threaded mounting hole.
-
Locknuts included with Straight-thru fittings.
Other locknuts available:
Nylon locknuts: NPT, PG, and Metric.
| Qty.* |
|---|
|

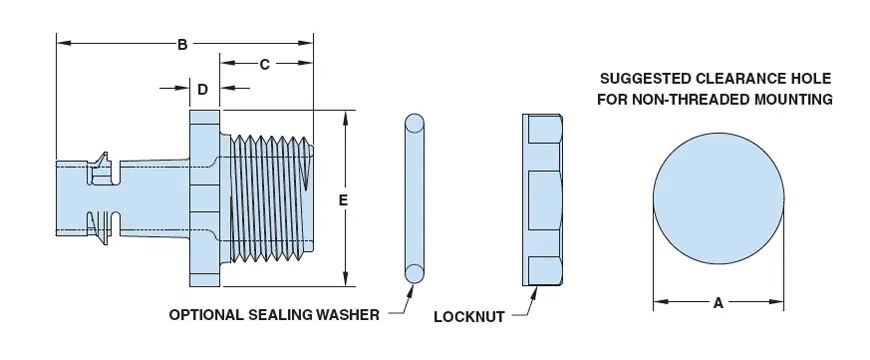

Part Number
|
Fits Tubing Size
|
Thread Size
|
Clearance Hole (in.)
|
Max Overall L (in.)
|
Thread L (in.)
|
Nut Thk (in.)
|
Across The Flat (in.)
|
Qty.* |
|---|---|---|---|---|---|---|---|---|
| LTFITSI1/2NB | 1/2 | N/A | .875 | 1.38 | .39 | .09 | .97 |
|
| LTFITNPT3/8NB | 3/8 | 1/2 | .875 | 1.72 | .63 | .20 | 1.16 |
|
| LTFITNPT1/2NB | 1/2 | 1/2 | .875 | 1.72 | .63 | .20 | 1.16 |
|
| LTFITNPT3/4NB | 3/4 | 3/4 | 1.109 | 1.84 | .63 | .20 | 1.36 |
|
| LTFITNPT1NB | 1 | 1 | 1.375 | 1.99 | .78 | .20 | 1.62 |
|
