Extended Reach U-Bolts
Isoplast extended reach u-bolts are high-strength, non-metallic structural fasteners designed to secure large-diameter piping, conduits, or oversized components.
Material: Isoplast, 40% Long Glass Fiber-Gray
|

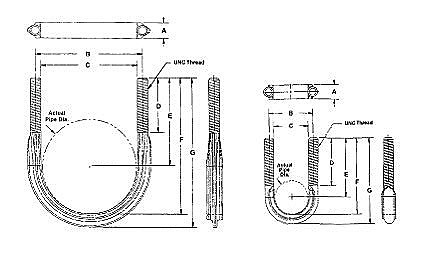

Part Number
|
U-Bolt Size
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
Pipe Diameter
|
UNC Thread
|
Qty.* | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ERUBOLT3/8-16X1IG | 1" | 9/16 | 1-3/4 | 1-3/8 | 1-7/8 | 2-5/16 | 3 | 3-3/8 | 1.315 | 3/8-16 | ||
| ERUBOLT3/8-16X11/2IG | 1-1/2" | 9/16 | 2-3/8 | 2 | 2-1/8 | 2-21/32 | 3-21/32 | 4-1/32 | 1.900 | 3/8-16 | ||
| ERUBOLT1/2-13X2IG | 2" | 3/4 | 2-15/16 | 2-7/16 | 2-3/8 | 3-5/32 | 4-3/8 | 5 | 2.375 | 1/2-13 | ||
| ERUBOLT1/2-13X3IG | 3" | 3/4 | 4-1/8 | 3-5/8 | 2-5/8 | 3-11/16 | 5-1/2 | 6-1/8 | 3.500 | 1/2-13 | ||
| ERUBOLT1/2-13X4IG | 4" | 3/4 | 5-1/8 | 4-5/8 | 2-5/8 | 4-3/16 | 6-1/2 | 7-1/8 | 4.500 | 1/2-13 | ||
| ERUBOLT5/8-11X6IG | 6" | 7/8 | 7-3/8 | 6-3/4 | 3-1/4 | 5-3/4 | 9-1/8 | 9-7/8 | 6.625 | 5/8-11 |
