All Dimensions are in Millimeters
All tolerances are plus and minus.
* This dimension +/- .010
| Nom. Screw Length | Tolerance on Length mm |
|---|---|
| to 3 mm incl. | 0.2 |
| over 3 to 10 mm | 0.3 |
| over 10 to 16 mm | 0.4 |
| over 16 to 50 mm | 0.5 |
| over 50 mm | 1.0 |
May also be available in alternate materials.
Metric Econ Grade Thumb Screw Variations

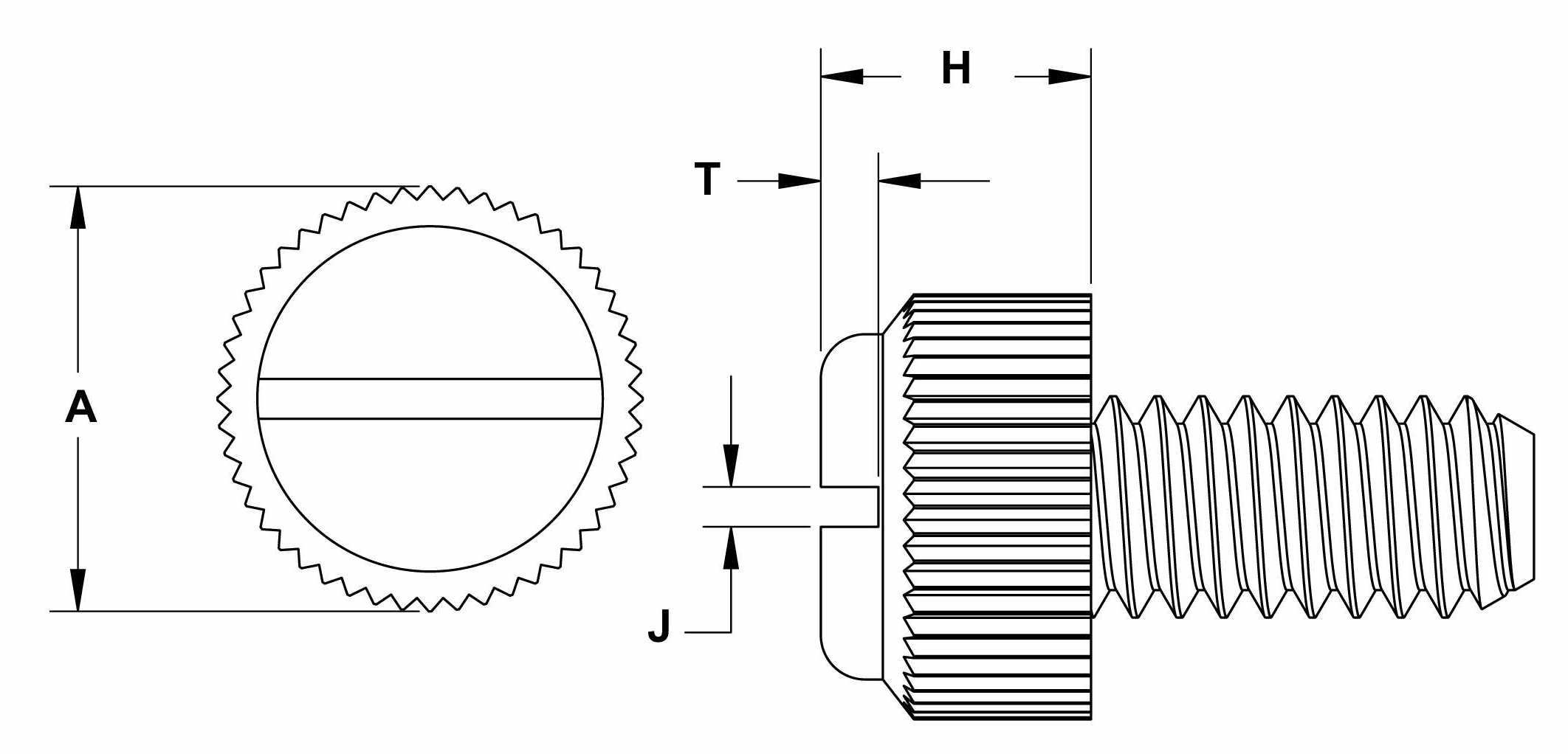

| Description | A | H | J | Length | T | Thread Size | Quote |
| M3 X 4 | 7.60 | 5.20 | 1.00 | 4 | 1.10 | M3 X 0.50 |  |
| M3 X 5 | 7.60 | 5.20 | 1.00 | 5 | 1.10 | M3 X 0.50 | |
| M3 X 6 | 7.60 | 5.20 | 1.00 | 6 | 1.10 | M3 X 0.50 | |
| M3 X 8 | 7.60 | 5.20 | 1.00 | 8 | 1.10 | M3 X 0.50 | |
| M3 X 10 | 7.60 | 5.20 | 1.00 | 10 | 1.10 | M3 X 0.50 | |
| M3 X 12 | 7.60 | 5.20 | 1.00 | 12 | 1.10 | M3 X 0.50 | |
| M3 X 16 | 7.60 | 5.20 | 1.00 | 16 | 1.10 | M3 X 0.50 | |
| M3 X 20 | 7.60 | 5.20 | 1.00 | 20 | 1.10 | M3 X 0.50 | |
| M3 X 25 | 7.60 | 5.20 | 1.00 | 25 | 1.10 | M3 X 0.50 | |
| M3 X 30 | 7.60 | 5.20 | 1.00 | 30 | 1.10 | M3 X 0.50 | |
| M3 X 35 | 7.60 | 5.20 | 1.00 | 35 | 1.10 | M3 X 0.50 | |
| M3 X 42 | 7.60 | 5.20 | 1.00 | 42 | 1.10 | M3 X 0.50 | |
| M4 X 3 | 9.70 | 7.10 | 0.90 | 3 | 1.15 | M4 X 0.70 | |
| M4 X 6 | 9.70 | 7.10 | 0.90 | 6 | 1.15 | M4 X 0.70 | |
| M4 X 8 | 9.70 | 7.10 | 0.90 | 8 | 1.15 | M4 X 0.70 | |
| M4 X 10 | 9.70 | 7.10 | 0.90 | 10 | 1.15 | M4 X 0.70 | |
| M4 X 12 | 9.70 | 7.10 | 0.90 | 12 | 1.15 | M4 X 0.70 | |
| M4 X 16 | 9.70 | 7.10 | 0.90 | 16 | 1.15 | M4 X 0.70 | |
| M4 X 20 | 9.70 | 7.10 | 0.90 | 20 | 1.15 | M4 X 0.70 | |
| M4 X 25 | 9.70 | 7.10 | 0.90 | 25 | 1.15 | M4 X 0.70 | |
| M4 X 30 | 9.70 | 7.10 | 0.90 | 30 | 1.15 | M4 X 0.70 | |
| M4 X 35 | 9.70 | 7.10 | 0.90 | 35 | 1.15 | M4 X 0.70 | |
| M4 X 40 | 9.70 | 7.10 | 0.90 | 40 | 1.15 | M4 X 0.70 | |
| M5 X 6 | 10.04 | 7.75 | 1.02 | 6 | 1.52 | M5 X 0.80 | |
| M5 X 8 | 10.04 | 7.75 | 1.02 | 8 | 1.52 | M5 X 0.80 | |
| M5 X 10 | 10.04 | 7.75 | 1.02 | 10 | 1.52 | M5 X 0.80 | |
| M5 X 12 | 10.04 | 7.75 | 1.02 | 12 | 1.52 | M5 X 0.80 | |
| M5 X 16 | 10.04 | 7.75 | 1.02 | 16 | 1.52 | M5 X 0.80 | |
| M5 X 20 | 10.04 | 7.75 | 1.02 | 20 | 1.52 | M5 X 0.80 | |
| M5 X 25 | 10.04 | 7.75 | 1.02 | 25 | 1.52 | M5 X 0.80 | |
| M5 X 30 | 10.04 | 7.75 | 1.02 | 30 | 1.52 | M5 X 0.80 | |
| M5 X 40 | 10.04 | 7.75 | 1.02 | 40 | 1.52 | M5 X 0.80 | |
| M6 X 5 | 12.21 | 7.75 | 1.14 | 5 | 1.53 | M6 X 1.00 | |
| M6 X 8 | 12.21 | 7.75 | 1.14 | 8 | 1.53 | M6 X 1.00 | |
| M6 X 10 | 12.21 | 7.75 | 1.14 | 10 | 1.53 | M6 X 1.00 | |
| M6 X 12 | 12.21 | 7.75 | 1.14 | 12 | 1.53 | M6 X 1.00 | |
| M6 X 16 | 12.21 | 7.75 | 1.14 | 16 | 1.53 | M6 X 1.00 | |
| M6 X 20 | 12.21 | 7.75 | 1.14 | 20 | 1.53 | M6 X 1.00 | |
| M6 X 22 | 12.21 | 7.75 | 1.14 | 22 | 1.53 | M6 X 1.00 | |
| M6 X 25 | 12.21 | 7.75 | 1.14 | 25 | 1.53 | M6 X 1.00 | |
| M6 X 35 | 12.21 | 7.75 | 1.14 | 35 | 1.53 | M6 X 1.00 | |
| M6 X 40 | 12.21 | 7.75 | 1.14 | 40 | 1.53 | M6 X 1.00 | |
| M6 X 45 | 12.21 | 7.75 | 1.14 | 45 | 1.53 | M6 X 1.00 | |
| M6 X 50 | 12.21 | 7.75 | 1.14 | 50 | 1.53 | M6 X 1.00 | |
| M6 X 60 | 12.21 | 7.75 | 1.14 | 60 | 1.53 | M6 X 1.00 | |
| M6 X 70 | 12.21 | 7.75 | 1.14 | 70 | 1.53 | M6 X 1.00 | |
| M6 X 75 | 12.21 | 7.75 | 1.14 | 75 | 1.53 | M6 X 1.00 | |
| M3.5 X 5 | 8.5 | 6.1 | 1.1 | 5 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 6 | 8.5 | 6.1 | 1.1 | 6 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 8 | 8.5 | 6.1 | 1.1 | 8 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 10 | 8.5 | 6.1 | 1.1 | 10 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 12 | 8.5 | 6.1 | 1.1 | 12 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 16 | 8.5 | 6.1 | 1.1 | 16 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 20 | 8.5 | 6.1 | 1.1 | 20 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 25 | 8.5 | 6.1 | 1.1 | 25 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 35 | 8.5 | 6.1 | 1.1 | 35 | 1.3 | M3.5 X 0.6 | |
| M3.5 X 42 | 8.5 | 6.1 | 1.1 | 42 | 1.3 | M3.5 X 0.6 | |
