Economy Grade Thumb Screws

Economy Grade Thumb Screws

E&T Fasteners

SKU:
Economy Grade Thumb Screws - Scroll down to Request a Quote

* This dimension +/- .010

Nominal Screw Size 0000 thru 00 0 thru 12 1/4/ thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., incl. -0.01 -0.02 -0.03
Over 1/2 to 1 in., incl. -0.02 -0.03 -0.03
Over 1 to 2 in., incl. - -0.06 -0.06
Over 2 in. - -0.09 -0.09
May also be available in alternate materials.

Economy Grade Thumb Screws Variations

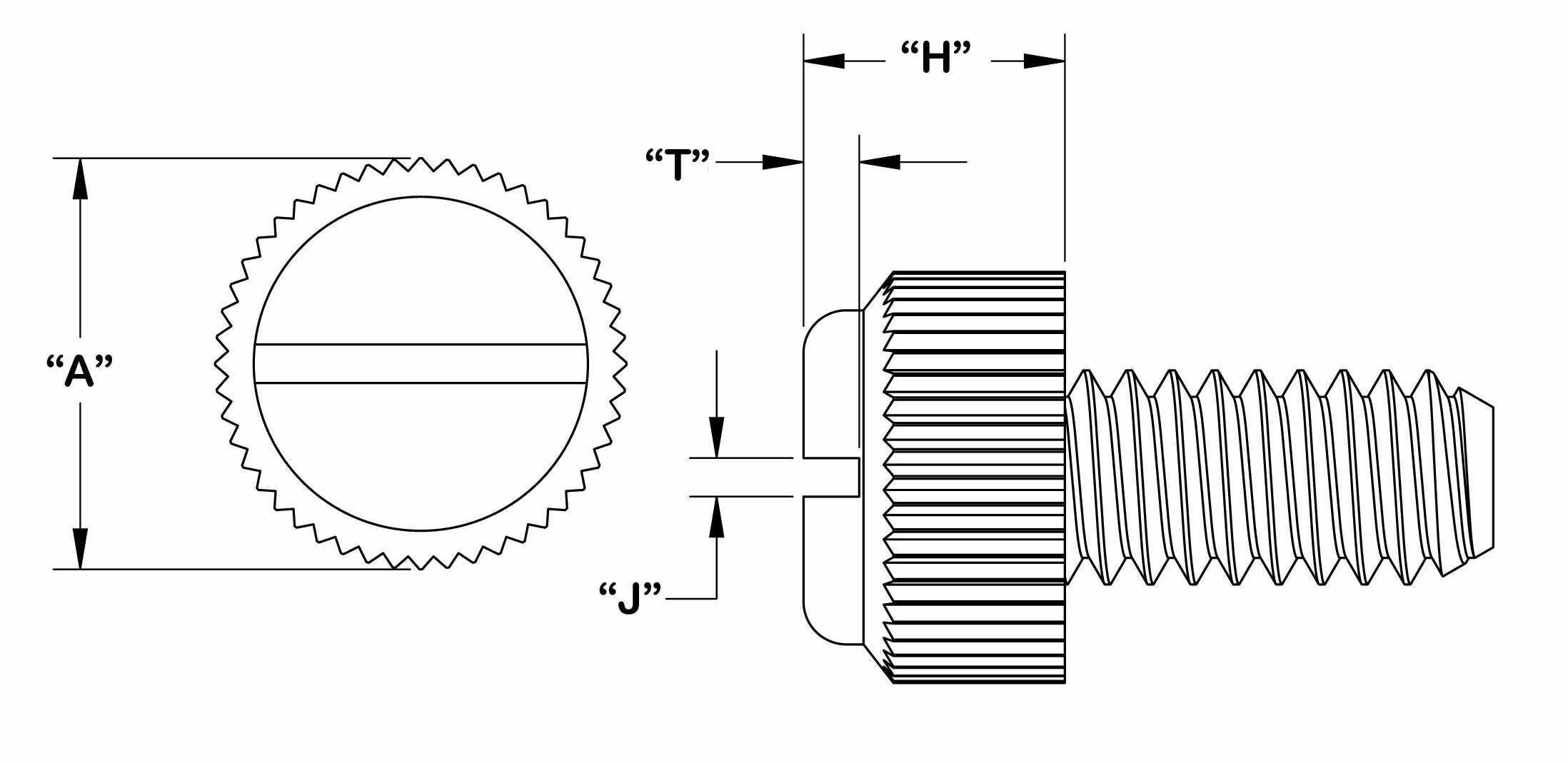

Description A H J Length T Thread Size Quote
4-40 X 3/32 .317 .215 .030 .093 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1/8 .317 .215 .030 .125 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 3/16 .317 .215 .030 .187 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1/4 .317 .215 .030 .250 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 9/32 .317 .215 .030 .281 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 5/16 .317 .215 .030 .312 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 3/8 .317 .215 .030 .375 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 7/16 .317 .215 .030 .437 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1/2 .317 .215 .030 .500 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 5/8 .317 .215 .030 .625 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 3/4 .317 .215 .030 .750 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 7/8 .317 .215 .030 .875 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1 .317 .215 .030 1.00 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1-1/8 .317 .215 .030 1.125 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1-3/16 .317 .215 .030 1.187 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1-1/4 .317 .215 .030 1.25 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1-3/8 .317 .215 .030 1.375 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1-1/2 .317 .215 .030 1.50 .040 440 Request for Quote on Economy Grade Thumb Screws
4-40 X 1-3/4 .317 .215 .030 1.75 .040 440 Request for Quote on Economy Grade Thumb Screws
6-32 X 3/32 .336 .243 .030 .093 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1/8 .336 .243 .030 .125 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 3/16 .336 .243 .030 .187 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1/4 .336 .243 .030 .250 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 5/16 .336 .243 .030 .312 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 3/8 .336 .243 .030 .375 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 7/16 .336 .243 .030 .437 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1/2 .336 .243 .030 .500 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 5/8 .336 .243 .030 .625 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 3/4 .336 .243 .030 .750 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 7/8 .336 .243 .030 .875 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1 .336 .243 .030 1.00 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1-1/8 .336 .243 .030 1.125 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1-1/4 .336 .243 .030 1.25 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1-1/2 .336 .243 .030 1.50 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1-5/8 .336 .243 .030 1.625 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 1-3/4 .336 .243 .030 1.75 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 2 .336 .243 .030 2.00 .040 632 Request for Quote on Economy Grade Thumb Screws
6-32 X 2-1/4 .336 .243 .030 2.25 .040 632 Request for Quote on Economy Grade Thumb Screws
6-40 X 1/4 .336 .243 .030 .250 .040 632 Request for Quote on Economy Grade Thumb Screws
6-40 X 3/8 .336 .243 .030 .375 .040 632 Request for Quote on Economy Grade Thumb Screws
6-40 X 3/4 .336 .243 .030 .750 .040 632 Request for Quote on Economy Grade Thumb Screws
6-40 X 1 .336 .243 .030 1.00 .040 632 Request for Quote on Economy Grade Thumb Screws
8-32 X 1/8 .381 .280 .035 .125 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 3/16 .381 .280 .035 .187 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1/4 .381 .280 .035 .250 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 5/16 .381 .280 .035 .312 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 3/8 .381 .280 .035 .375 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 7/16 .381 .280 .035 .437 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1/2 .381 .280 .035 .500 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 5/8 .381 .280 .035 .625 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 3/4 .381 .280 .035 .750 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 7/8 .381 .280 .035 .875 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1 .381 .280 .035 1.00 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1-1/8 .381 .280 .035 1.125 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1-1/4 .381 .280 .035 1.25 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1-3/8 .381 .280 .035 1.375 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1-1/2 .381 .280 .035 1.50 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1-3/4 .381 .280 .035 1.75 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 1-7/8 .381 .280 .035 1.875 .045 832 Request for Quote on Economy Grade Thumb Screws
8-32 X 2 .381 .280 .035 2.00 .045 832 Request for Quote on Economy Grade Thumb Screws
10-24 X 1/8 .350 .270 .055 .125 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 3/16  .350 .270 .055 .187 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 1/4  .350 .270 .055 .250 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 5/16  .350 .270 .055 .312 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 3/8  .350 .270 .055 .375 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 1/2  .350 .270 .055 .500 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 5/8  .350 .270 .055 .625 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 3/4  .350 .270 .055 .750 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 1  .350 .270 .055 1.00 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 1-1/4  .350 .270 .055 1.25 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-24 X 1-1/2  .350 .270 .055 1.50 .070 1024 Request for Quote on Economy Grade Thumb Screws
10-32 X 1/8  .350 .270 .055 .125 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 3/16  .350 .270 .055 .187 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 1/4  .350 .270 .055 .250 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 5/16  .350 .270 .055 .312 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 3/8  .350 .270 .055 .375 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 7/16  .350 .270 .055 .437 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 1/2  .350 .270 .055 .500 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 5/8  .350 .270 .055 .625 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 3/4  .350 .270 .055 .750 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 7/8  .350 .270 .055 .875 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 1  .350 .270 .055 1.00 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 1-1/4  .350 .270 .055 1.25 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 1-1/2  .350 .270 .055 1.50 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 1-3/4  .350 .270 .055 1.75 .070 1032 Request for Quote on Economy Grade Thumb Screws
10-32 X 2  .350 .270 .055 2.00 .070 1032 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 1/4 .480 .370 .060 .250 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 5/16 .480 .370 .060 .312 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 3/8 .480 .370 .060 .375 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 1/2 .480 .370 .060 .500 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 5/8 .480 .370 .060 .625 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 3/4 .480 .370 .060 .750 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 5/8 .480 .370 .060 .875 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 1 .480 .370 .060 1.00 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 1-1/4 .480 .370 .060 1.25 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 1-1/2 .480 .370 .060 1.50 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 1-3/4 .480 .370 .060 1.75 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 2 .480 .370 .060 2.00 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-20 X 2-1/2 .480 .370 .060 2.50 .090 1/4-20 Request for Quote on Economy Grade Thumb Screws
1/4-28 X 3/16 .480 .370 .060 .187 .090 1/4-28 Request for Quote on Economy Grade Thumb Screws
1/4-28 X 1/4 .480 .370 .060 .250 .090 1/4-28 Request for Quote on Economy Grade Thumb Screws
1/4-28 X 3/8 .480 .370 .060 .375 .090 1/4-28 Request for Quote on Economy Grade Thumb Screws
1/4-28 X 1/2 .480 .370 .060 .500 .090 1/4-28 Request for Quote on Economy Grade Thumb Screws
1/4-28 X 3/4 .480 .370 .060 .750 .090 1/4-28 Request for Quote on Economy Grade Thumb Screws
1/4-28 X 1 .480 .370 .060 1.00 .090 1/4-28 Request for Quote on Economy Grade Thumb Screws
!
