Slotted Pan Machine Screws

Slotted Pan Machine Screws

E&T Fasteners

SKU:
Slotted Pan Machine Screws - Scroll down to Request a Quote

Nominal Screw Size 0000 thru 00 0 thru 12 1/4 thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., incl. -0.01 -0.02 -0.03
Over 1/2 to 1 in., incl. -0.02 -0.03 -0.03
Over 1 to 2 in., incl. - -0.06 -0.06
Over 2 in. - -0.09 -0.09
May also be available in alternate materials and lengths.


Slotted Pan Machine Screws Variations

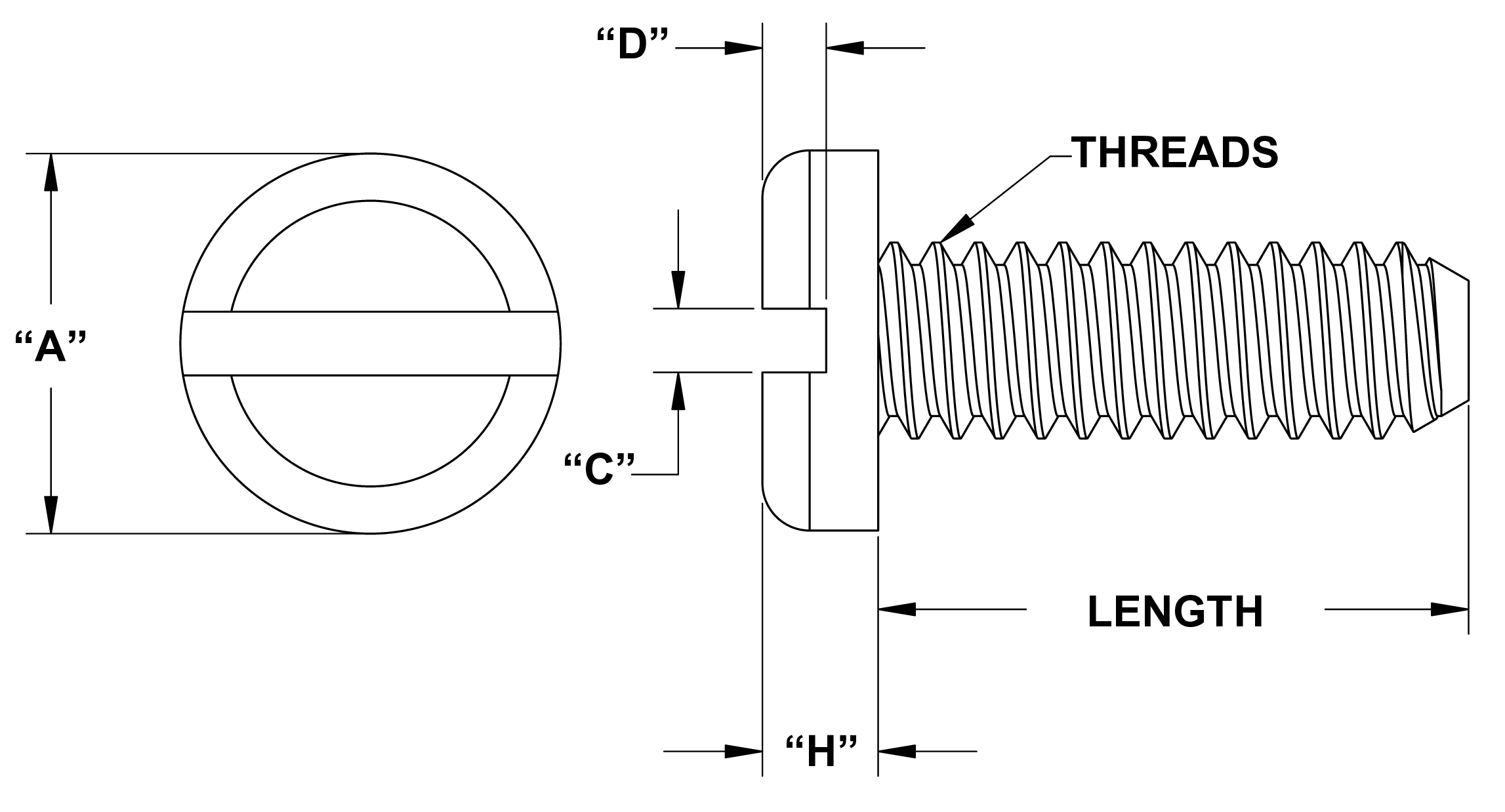

Description A H J Length T Thread Size Quote
0-80 X 3/32 .110 .040 .020 .093 .018 0-80 Request for Quote on Slt Pan Machine Screws
0-80 X 1/8 .110 .040 .020 .125 .018 0-80 Request for Quote on Slt Pan Machine Screws
0-80 X 3/16 .110 .040 .020 .187 .018 0-80 Request for Quote on Slt Pan Machine Screws
0-80 X 1/4 .110 .040 .020 .250 .018 0-80 Request for Quote on Slt Pan Machine Screws
0-80 X 9/32 .110 .040 .020 .281 .018 0-80 Request for Quote on Slt Pan Machine Screws
0-80 X 3/8 .110 .040 .020 .375 .018 0-80 Request for Quote on Slt Pan Machine Screws
0-80 X 7/16 .110 .040 .020 .437 .018 0-80 Request for Quote on Slt Pan Machine Screws
0-80 X 1/2 .110 .040 .020 .500 .018 0-80 Request for Quote on Slt Pan Machine Screws
1-64 X 1/4 .135 .042 .022 .250 .025 1-64 Request for Quote on Slt Pan Machine Screws
1-64 X 3/4 .135 .042 .022 .750 .025 1-64 Request for Quote on Slt Pan Machine Screws
1-72 X 1/4 .135 .042 .022 .250 .026 1-72 Request for Quote on Slt Pan Machine Screws
1-72 X 3/8 .135 .042 .022 .375 .026 1-72 Request for Quote on Slt Pan Machine Screws
1-72 X 1/2 .135 .042 .022 .500 .026 1-72 Request for Quote on Slt Pan Machine Screws
2-56 X 3/32 .160 .050 .028 .093 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 1/8 .160 .050 .028 .125 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 5/32 .160 .050 .028 .156 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 3/16 .160 .050 .028 .187 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 1/4 .160 .050 .028 .250 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 9/32 .160 .050 .028 .281 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 5/16 .160 .050 .028 .312 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 3/8 .160 .050 .028 .375 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 7/16 .160 .050 .028 .437 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 1/2 .160 .050 .028 .500 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 9/16 .160 .050 .028 .562 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 5/8 .160 .050 .028 .625 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 3/4 .160 .050 .028 .750 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 7/8 .160 .050 .028 .875 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 1 .160 .050 .028 1.00 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-56 X 1-1/8 .160 .050 .028 1.125 .026 2-56 Request for Quote on Slt Pan Machine Screws
2-64 X 3/16 .160 .050 .028 .187 .026 2-64 Request for Quote on Slt Pan Machine Screws
2-64 X 3/8 .160 .050 .028 .375 .026 2-64 Request for Quote on Slt Pan Machine Screws
4-40 X 3/32 .215 .065 .035 .093 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1/8 .215 .065 .035 .125 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 3/16 .215 .065 .035 .187 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1/4 .215 .065 .035 .250 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 9/32 .215 .065 .035 .281 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 5/16 .215 .065 .035 .312 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 3/8 .215 .065 .035 .375 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 7/16 .215 .065 .035 .437 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1/2 .215 .065 .035 .500 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 9/16 .215 .065 .035 .562 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 5/8 .215 .065 .035 .625 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 11/16 .215 .065 .035 .687 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 3/4 .215 .065 .035 .750 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 7/8 .215 .065 .035 .875 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1 .215 .065 .035 1.00 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1-1/8 .215 .065 .035 1.125 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1-1/8 .215 .065 .035 1.187 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1-1/4 .215 .065 .035 1.25 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1-3/8 .215 .065 .035 1.375 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1-1/2 .215 .065 .035 1.50 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1-5/8 .215 .065 .035 1.625 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 1-3/4 .215 .065 .035 1.75 .035 4-40 Request for Quote on Slt Pan Machine Screws
4-40 X 2 .215 .065 .035 2.00 .035 4-40 Request for Quote on Slt Pan Machine Screws
6-32 X 3/32 .265 .075 .045 .094 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1/8 .265 .075 .045 .125 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 5/32 .265 .075 .045 .156 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 3/16 .265 .075 .045 .187 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1/4 .265 .075 .045 .250 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 5/16 .265 .075 .045 .312 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 3/8 .265 .075 .045 .375 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 7/16 .265 .075 .045 .437 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1/2 .265 .075 .045 .500 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 9/16 .265 .075 .045 .562 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 5/8 .265 .075 .045 .625 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 11/16 .265 .075 .045 .687 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 3/4 .265 .075 .045 .750 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 7/8 .265 .075 .045 .875 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1 .265 .075 .045 1.00 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1-1/8 .265 .075 .045 1.125 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1-1/4 .265 .075 .045 1.25 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1-1/2 .265 .075 .045 1.50 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1-5/8 .265 .075 .045 1.625 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1-3/4 .265 .075 .045 1.75 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 1-7/8 .265 .075 .045 1.875 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 2 .265 .075 .045 2.00 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-32 X 2-1/4 .265 .075 .045 2.25 .045 6-32 Request for Quote on Slt Pan Machine Screws
6-40 X 1/4 .265 .075 .045 .250 .045 6-40 Request for Quote on Slt Pan Machine Screws
6-40 X 1/2 .265 .075 .045 .500 .045 6-40 Request for Quote on Slt Pan Machine Screws
6-40 X 3/4 .265 .075 .045 .750 .045 6-40 Request for Quote on Slt Pan Machine Screws
6-40 X 1 .265 .075 .045 1.00 .045 6-40 Request for Quote on Slt Pan Machine Screws
8-32 X 1/8 .310 .090 .050 .125 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 3/16 .310 .090 .050 .187 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1/4 .310 .090 .050 .250 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 9/32 .310 .090 .050 .281 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 5/16 .310 .090 .050 .312 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 3/8 .310 .090 .050 .375 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 7/16 .310 .090 .050 .437 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1/2 .310 .090 .050 .500 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 5/8 .310 .090 .050 .625 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 3/4 .310 .090 .050 .750 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 7/8 .310 .090 .050 .875 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1 .310 .090 .050 1.00 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1-1/8 .310 .090 .050 1.125 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1-1/4 .310 .090 .050 1.25 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1-3/8 .310 .090 .050 1.375 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1-1/2 .310 .090 .050 1.50 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1-3/4 .310 .090 .050 1.75 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 1-7/8 .310 .090 .050 1.875 .050 8-32 Request for Quote on Slt Pan Machine Screws
8-32 X 2 .310 .090 .050 2.00 .050 8-32 Request for Quote on Slt Pan Machine Screws
10-24 X 1/8 .365 .105 .055 .125 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 3/16 .365 .105 .055 .187 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 1/4 .365 .105 .055 .250 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 5/16 .365 .105 .055 .312 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 3/8 .365 .105 .055 .375 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 1/2 .365 .105 .055 .500 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 5/8 .365 .105 .055 .625 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 3/4 .365 .105 .055 .750 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 1 .365 .105 .055 1.00 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 1-1/4 .365 .105 .055 1.25 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-24 X 1-1/2 .365 .105 .055 1.50 .055 10-24 Request for Quote on Slt Pan Machine Screws
10-32 X 1/8 .365 .105 .055 .125 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 3/16 .365 .105 .055 .187 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 1/4 .365 .105 .055 .250 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 5/16 .365 .105 .055 .312 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 3/8 .365 .105 .055 .375 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 7/16 .365 .105 .055 .437 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 1/2 .365 .105 .055 .500 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 5/8 .365 .105 .055 .625 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 3/4 .365 .105 .055 .750 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 13/16 .365 .105 .055 .812 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 7/8 .365 .105 .055 .875 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 1 .365 .105 .055 1.00 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 1-1/8 .365 .105 .055 1.125 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 1-1/4 .365 .105 .055 1.25 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 1-1/2 .365 .105 .055 1.50 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 1-3/4 .365 .105 .055 1.75 .055 10-32 Request for Quote on Slt Pan Machine Screws
10-32 X 2 .365 .105 .055 2.00 .055 10-32 Request for Quote on Slt Pan Machine Screws
1/4-20 X 1/8 .480 .135 .070 .125 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 1/4 .480 .135 .070 .250 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 5/16 .480 .135 .070 .312 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 3/8 .480 .135 .070 .375 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 1/2 .480 .135 .070 .500 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 5/8 .480 .135 .070 .625 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 3/4 .480 .135 .070 .750 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 7/8 .480 .135 .070 .875 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 1 .480 .135 .070 1.00 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 1-1/4 .480 .135 .070 1.25 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 1-1/2 .480 .135 .070 1.50 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 1-3/4 .480 .135 .070 1.75 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 2 .480 .135 .070 2.00 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-20 X 2-1/2 .480 .135 .070 2.50 .080 1/4-20 Request for Quote on Slt Pan Machine Screws
1/4-28 X 3/16 .480 .135 .070 .187 .080 1/4-28 Request for Quote on Slt Pan Machine Screws
1/4-28 X 1/4 .480 .135 .070 .250 .080 1/4-28 Request for Quote on Slt Pan Machine Screws
1/4-28 X 3/8 .480 .135 .070 .375 .080 1/4-28 Request for Quote on Slt Pan Machine Screws
1/4-28 X 5/8 .480 .135 .070 .625 .080 1/4-28 Request for Quote on Slt Pan Machine Screws
1/4-28 X 3/4 .480 .135 .070 .750 .080 1/4-28 Request for Quote on Slt Pan Machine Screws
1/4-28 X 1 .480 .135 .070 1.00 .080 1/4-28 Request for Quote on Slt Pan Machine Screws
5/16-18 X 3/8 .600 .170 .080 .375 .090 5/16-18 Request for Quote on Slt Pan Machine Screws
5/16-18 X 7/8 .600 .170 .080 .875 .090 5/16-18 Request for Quote on Slt Pan Machine Screws
1/2-13 X 3/4 .973 .270 .098 .750 .146 1/2-13 Request for Quote on Slt Pan Machine Screws
1/2-13 X 1 .973 .270 .098 1.00 .146 1/2-13 Request for Quote on Slt Pan Machine Screws
!
