Name: Nylon Shoulder Washers-1
Brand: E&T Fasteners
SKU: Nylon Shoulder Washers-1 - Scroll down to Request a Quote
Availability: OutOfStock

Description

Nylon Shoulder Washers are Suitable for a Large Variety of Insulation and Mechanical Applications.

They Insulate
Reduce Vibration
Act as Spacers and Guides
Are Strong and Corrosion Resistant
Can be Used as Seal in Some Applications

May also be available in other materials.

Nylon Shoulder Washers Variations

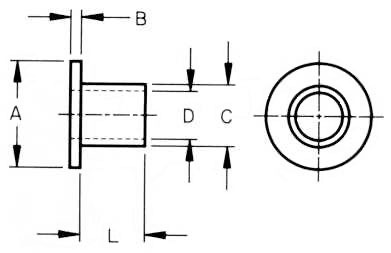

Description	BH	BOD	FH	FOD	ID	Quote
SWS 478	.750	.220	.047	.325	.140
SWS 2519	.145	.371	.125	.736	.168
SWS 2584	.050	.710	.050	.735	.640
SWS 4019	.309	1.120	.128	1.365	.870
SWS 5003	.305	1.743	.129	1.989	1.326
SWS 2522	.187	.375	.225	.700	.268
SWS 2577	.250	.320	.065	.750	.170
SWS 1056	.050	.265	.063	.500	.169
SWS 884	.126	.275	.030	.394	.221
SWS 637	.093	.205	.063	.344	.173
SWS 889	.420	.250	.125	.450	.195
SWS 933	.125	.310	.065	.450	.260
SWS 3029	.058	.710	.058	.788	.639
SWS 5050	.500	.750	.063	1.525	.645
SWS 1064	.690	.260	.125	.450	.190
SWS 893	.075	.273	.062	.595	.170
SWS 1224	.070	.450	.060	.560	.175
SWS 3597	.130	.750	.060	1.000	.530
SWS 3506	.263	.370	.127	.760	.267
SWS 1149	.188	.388	.731	.562	.290
SWS 4000	.478	1.000	.063	.813	.766
SWS 1156	.050	.338	.039	.515	.260
SWS 627	.250	.203	.062	.365	.170
SWS 3018	.060	.515	.060	1.060	.395
SWS 3698	.220	1.000	.120	1.500	.810
SWS 886	.138	.312	.062	.500	.140
SWS 971	.085	.250	.040	.500	.166
SWS 1168	.438	.375	.062	.562	.188
SWS 1067	.316	.254	.054	.502	.194
SWS 257	.280	.150	.046	.250	.118
SWS 955	.080	.213	.118	.500	.145
SWS 152	.047	.084	.047	.105	.061
SWS 155	.060	.080	.030	.125	.055
SWS 156	.031	.122	.031	.228	.093
SWS 157	.035	.147	.095	.235	.115
SWS 158	.250	.120	.047	.187	.090
SWS 159	.206	.156	.156	.187	.096
SWS 180	.075	.120	.047	.181	.045
SWS 183	.031	.125	.078	.182	.085
SWS 184	.031	.119	.063	.189	.095
SWS 185	.106	.259	.161	.433	.197
SWS 186	.088	.140	.039	.228	.098
SWS 187	.016	.119	.031	.187	.089
SWS 188	.030	.131	.030	.187	.090
SWS 189	.020	.119	.030	.187	.090
SWS 190	.281	.118	.031	.197	.075
SWS 191	.100	.200	.090	.350	.140
SWS 192	.052	.136	.047	.253	.120
SWS 193	.040	.140	.031	.250	.093
SWS 194	.046	.144	.027	.197	.118
SWS 195	.062	.120	.031	.195	.093
SWS 196	.047	.135	.063	.240	.114
SWS 197	.031	.135	.046	.216	.115
SWS 198	.031	.140	.031	.200	.155
SWS 199	.078	.119	.031	.187	.063
SWS 200	.031	.135	.078	.200	.116
SWS 201	.188	.119	.031	.187	.063
SWS 202	.078	.125	.031	.205	.093
SWS 203	.109	.125	.031	.208	.093
SWS 204	.187	.125	.031	.205	.093
SWS 205	.047	.145	.016	.202	.120
SWS 206	.062	.154	.031	.224	.120
SWS 207	.156	.135	.046	.242	.110
SWS 208	.063	.120	.031	.200	.093
SWS 209	.047	.145	.016	.210	.120
SWS 210	.046	.142	.015	.230	.122
SWS 211	.031	.135	.046	.218	.115
SWS 212	.478	.154	.031	.224	.120
SWS 213	.046	.138	.032	.200	.109
SWS 214	.031	.137	.046	.240	.115
SWS 215	.219	.150	.172	.250	.115
SWS 216	.031	.150	.031	.240	.098
SWS 217	.031	.138	.047	.228	.100
SWS 218	.125	.140	.046	.242	.115
SWS 219	.125	.250	.015	.290	.193
SWS 220	.047	.147	.047	.234	.115
SWS 221	.093	.145	.046	.235	.115
SWS 222	.125	.145	.047	.235	.115
SWS 223	.031	.187	.062	.250	.140
SWS 224	.047	.190	.063	.260	.140
SWS 225	.672	.187	.047	.250	.095
SWS 226	.062	.143	.031	.250	.118
SWS 227	.031	.187	.063	.257	.141
SWS 228	.016	.154	.016	.260	.095
SWS 229	.125	.139	.046	.250	.118
SWS 230	.156	.205	.031	.265	.142
SWS 232	.078	.136	.046	.253	.120
SWS 233	.031	.140	.046	.203	.115
SWS 234	.050	.139	.020	.239	.116
SWS 235	.033	.143	.042	.210	.116
SWS 236	.020	.150	.030	.250	.116
SWS 237	.040	.147	.047	.235	.115
SWS 238	.030	.150	.040	.230	.125
SWS 239	.090	.154	.028	.224	.120
SWS 240	.100	.190	.025	.230	.150
SWS 241	.155	.154	.028	.224	.120
SWS 242	.094	.425	.141	.635	.201
SWS 243	.063	.164	.025	.234	.130
SWS 244	.031	.145	.025	.234	.115
SWS 245	.093	.145	.250	.235	.115
SWS 246	.027	.134	.047	.240	.115
SWS 247	.047	.140	.047	.252	.115
SWS 248	.090	.205	.060	.290	.125
SWS 249	.177	.157	.040	.244	.118
SWS 250	.156	.205	.118	.265	.142
SWS 251	.031	.154	.031	.250	.093
SWS 255	.125	.375	.125	.500	.285
SWS 280	.185	.150	.042	.280	.112
SWS 290	.031	.170	.046	.290	.140
SWS 291	.375	.170	.234	.290	.140
SWS 296	.375	.295	.125	.499	.187
SWS 300	.090	.150	.055	.250	.120
SWS 301	.065	.140	.030	.250	.098
SWS 302	.039	.141	.032	.210	.118
SWS 304	.453	.173	.055	.256	.118
SWS 305	.120	.135	.050	.250	.118
SWS 306	.062	.150	.031	.250	.116
SWS 310	.250	.156	.047	.250	.125
SWS 311	.437	.158	.032	.260	.125
SWS 312	.190	.365	.030	.575	.312
SWS 364	.453	.244	.055	.364	.197
SWS 380	.070	.145	.040	.255	.120
SWS 393	.380	.200	.032	.400	.132
SWS 394	.226	.236	.030	.276	.177
SWS 395	.025	.122	.031	.250	.093
SWS 396	.040	.140	.047	.250	.102
SWS 397	.032	.150	.063	.250	.116
SWS 398	.296	.170	.047	.290	.140
SWS 399	.050	.185	.031	.250	.120
SWS 400	.093	.141	.046	.235	.115
SWS 401	.250	.145	.046	.235	.115
SWS 402	.046	.138	.062	.240	.114
SWS 403	.063	.149	.063	.312	.115
SWS 404	.093	.149	.062	.312	.115
SWS 405	.016	.124	.047	.250	.111
SWS 406	.031	.186	.031	.252	.140
SWS 407	.031	.186	.031	.250	.139
SWS 408	.250	.120	.032	.235	.090
SWS 409	.125	.195	.031	.250	.130
SWS 410	.031	.114	.047	.250	.100
SWS 411	.062	.143	.031	.250	.115
SWS 412	.063	.169	.031	.250	.102
SWS 413	.094	.114	.047	.250	.100
SWS 414	.125	.158	.093	.281	.093
SWS 415	.188	.218	.047	.293	.138
SWS 416	.172	.186	.047	.250	.126
SWS 417	.016	.183	.063	.310	.139
SWS 418	.016	.187	.063	.312	.115
SWS 419	.031	.185	.031	.312	.140
SWS 420	.063	.170	.063	.312	.120
SWS 421	.031	.185	.031	.312	.140
SWS 422	.125	.234	.047	.312	.144
SWS 423	.016	.150	.031	.250	.116
SWS 424	.219	.234	.031	.295	.140
SWS 425	.031	.250	.062	.312	.196
SWS 426	.172	.145	.047	.250	.115
SWS 427	.047	.185	.031	.250	.118
SWS 428	.109	.140	.046	.242	.115
SWS 429	.141	.145	.047	.250	.115
SWS 430	.187	.250	.062	.315	.156
SWS 431	.094	.185	.031	.240	.125
SWS 432	.046	.143	.046	.250	.113
SWS 433	.109	.145	.046	.250	.115
SWS 434	.062	.170	.046	.312	.140
SWS 435	.047	.185	.063	.250	.116
SWS 436	.031	.139	.046	.240	.115
SWS 437	.031	.157	.031	.265	.126
SWS 438	.031	.187	.062	.312	.141
SWS 439	.062	.138	.046	.250	.120
SWS 440	.313	.154	.031	.312	.130
SWS 441	.188	.234	.031	.315	.184
SWS 442	.219	.235	.031	.296	.135
SWS 443	.156	.140	.047	.252	.115
SWS 444	.063	.194	.047	.300	.160
SWS 445	.031	.175	.031	.313	.143
SWS 446	.016	.160	.047	.312	.097
SWS 448	.093	.187	.046	.312	.128
SWS 449	.031	.219	.031	.313	.124
SWS 450	.063	.234	.047	.312	.144
SWS 451	.031	.150	.030	.315	.115
SWS 452	.031	.203	.047	.312	.120
SWS 453	.027	.187	.035	.312	.140
SWS 454	.031	.219	.031	.313	.136
SWS 455	.047	.185	.031	.315	.126
SWS 456	.047	.156	.047	.250	.115
SWS 457	.031	.187	.031	.250	.120
SWS 458	.078	.185	.031	.312	.128
SWS 459	.234	.154	.063	.291	.120
SWS 460	.125	.170	.047	.290	.140
SWS 462	.031	.187	.063	.312	.123
SWS 463	.050	.229	.046	.312	.163
SWS 464	.297	.145	.047	.250	.115
SWS 465	.060	.189	.030	.312	.144
SWS 466	.025	.154	.035	.307	.093
SWS 467	.062	.126	.063	.312	.091
SWS 468	.250	.210	.060	.312	.142
SWS 469	.122	.207	.187	.388	.160
SWS 470	.165	.200	.047	.290	.145
SWS 472	.027	.181	.096	.316	.150
SWS 473	.600	.210	.047	.290	.140
SWS 474	.312	.185	.058	.312	.125
SWS 475	.100	.150	.045	.312	.114
SWS 476	.052	.087	.035	.300	.055
SWS 477	.067	.183	.045	.308	.132
SWS 601	.250	.170	.046	.290	.140
SWS 602	.031	.206	.063	.330	.141
SWS 603	.062	.180	.050	.300	.150
SWS 605	.047	.218	.047	.328	.146
SWS 606	.047	.250	.078	.340	.140
SWS 607	.063	.215	.063	.292	.093
SWS 608	.047	.170	.047	.290	.140
SWS 609	.047	.185	.031	.312	.116
SWS 610	.063	.290	.031	.348	.256
SWS 612	.094	.158	.047	.316	.116
SWS 614	.031	.204	.063	.324	.140
SWS 615	.065	.182	.050	.320	.141
SWS 621	.094	.220	.063	.340	.175
SWS 622	.387	.201	.062	.372	.176
SWS 628	.375	.205	.062	.345	.173
SWS 629	.047	.209	.062	.345	.171
SWS 630	.203	.146	.078	.368	.115
SWS 632	.063	.248	.047	.349	.140
SWS 633	.060	.260	.050	.349	.133
SWS 634	.172	.300	.016	.350	.112
SWS 635	.070	.190	.040	.375	.125
SWS 636	.120	.235	.063	.344	.175
SWS 798	.085	.235	.063	.344	.175
SWS 799	.047	.189	.109	.344	.141
SWS 800	.141	.210	.063	.344	.170
SWS 801	.375	.205	.063	.344	.173
SWS 802	.062	.195	.031	.375	.171
SWS 803	.406	.250	.062	.510	.171
SWS 804	.177	.315	.020	.355	.236
SWS 805	.283	.242	.067	.370	.195
SWS 806	.250	.205	.032	.344	.173
SWS 807	.046	.300	.060	.359	.227
SWS 808	.125	.280	.063	.375	.201
SWS 809	.156	.194	.078	.378	.116
SWS 810	.031	.250	.062	.375	.171
SWS 811	.046	.245	.046	.375	.192
SWS 812	.094	.260	.031	.375	.220
SWS 813	.109	.195	.047	.375	.136
SWS 814	.047	.244	.078	.375	.150
SWS 815	.094	.185	.031	.375	.140
SWS 816	.031	.250	.031	.375	.169
SWS 817	.046	.218	.062	.375	.140
SWS 818	.031	.246	.063	.375	.167
SWS 819	.062	.313	.062	.437	.188
SWS 820	.031	.185	.063	.375	.140
SWS 821	.031	.308	.062	.381	.196
SWS 822	.031	.246	.031	.374	.141
SWS 823	.099	.250	.040	.375	.171
SWS 824	.050	.245	.060	.375	.140
SWS 825	.060	.245	.030	.375	.145
SWS 826	.062	.308	.063	.500	.196
SWS 827	.046	.250	.040	.375	.171
SWS 828	.125	.254	.065	.380	.196
SWS 829	.125	.307	.110	.370	.255
SWS 830	.032	.187	.062	.375	.147
SWS 831	.250	.250	.040	.375	.171
SWS 832	.043	.257	.035	.375	.193
SWS 833	.050	.243	.031	.375	.199
SWS 834	.015	.304	.057	.375	.200
SWS 835	.050	.245	.050	.377	.155
SWS 836	.030	.250	.063	.375	.174
SWS 837	.031	.187	.062	.375	.093
SWS 839	.050	.250	.030	.385	.169
SWS 840	.203	.145	.078	.370	.115
SWS 841	.125	.242	.035	.375	.185
SWS 842	.078	.199	.219	.375	.140
SWS 844	.047	.185	.063	.381	.140
SWS 846	.063	.250	.094	.375	.140
SWS 847	.213	.250	.062	.375	.197
SWS 848	.031	.240	.062	.385	.145
SWS 849	.060	.312	.030	.375	.253
SWS 850	.063	.250	.094	.375	.138
SWS 852	.094	.248	.063	.375	.136
SWS 853	.030	.250	.066	.380	.190
SWS 854	.047	.240	.063	.375	.194
SWS 855	.109	.240	.062	.375	.138
SWS 856	.094	.185	.016	.375	.140
SWS 857	.156	.193	.078	.375	.116
SWS 858	.063	.250	.063	.375	.145
SWS 859	.140	.245	.031	.375	.187
SWS 860	.203	.220	.063	.380	.148
SWS 861	.125	.255	.031	.378	.116
SWS 862	.187	.287	.078	.390	.196
SWS 863	.078	.313	.078	.390	.203
SWS 864	.109	.299	.078	.395	.230
SWS 865	.055	.254	.065	.380	.196
SWS 867	.046	.214	.040	.375	.141
SWS 868	.031	.312	.062	.375	.253
SWS 869	.207	.348	.062	.390	.312
SWS 870	.125	.312	.063	.433	.199
SWS 871	.130	.260	.062	.390	.200
SWS 872	.160	.281	.050	.422	.200
SWS 873	.126	.256	.039	.394	.221
SWS 874	.139	.303	.025	.390	.223
SWS 875	.300	.253	.050	.375	.125
SWS 876	.075	.260	.062	.390	.200
SWS 877	.312	.281	.055	.390	.171
SWS 878	.126	.256	.030	.394	.221
SWS 879	.380	.236	.060	.385	.195
SWS 880	.125	.275	.125	.400	.140
SWS 882	.281	.312	.078	.470	.140
SWS 885	.100	.275	.125	.400	.140
SWS 887	.187	.240	.062	.408	.197
SWS 888	.047	.243	.047	.400	.156
SWS 890	.047	.243	.156	.415	.141
SWS 891	.058	.343	.077	.445	.308
SWS 894	.063	.243	.109	.418	.141
SWS 896	.187	.240	.062	.408	.220
SWS 897	.315	.310	.079	.433	.202
SWS 900	.031	.245	.063	.428	.156
SWS 901	.093	.375	.040	.437	.194
SWS 902	.031	.245	.063	.437	.156
SWS 903	.115	.256	.065	.432	.196
SWS 904	.375	.282	.062	.437	.225
SWS 905	.062	.310	.062	.425	.250
SWS 906	.035	.427	.050	.625	.170
SWS 907	.026	.307	.094	.438	.253
SWS 908	.093	.257	.031	.438	.203
SWS 909	.406	.376	.094	.493	.176
SWS 910	.070	.285	.048	.438	.191
SWS 912	.140	.303	.031	.432	.196
SWS 914	.043	.312	.094	.440	.193
SWS 915	.138	.244	.315	.413	.217
SWS 916	.188	.437	.063	.743	.376
SWS 917	.047	.350	.125	.428	.308
SWS 918	.047	.310	.016	.450	.230
SWS 919	.060	.370	.030	.460	.260
SWS 920	.138	.244	.118	.413	.217
SWS 921	.236	.315	.079	.480	.240
SWS 922	.282	.170	.047	.450	.140
SWS 925	.047	.248	.063	.468	.140
SWS 926	.688	.375	.063	.498	.254
SWS 930	.219	.375	.047	.468	.325
SWS 935	.187	.312	.065	.495	.200
SWS 940	.157	.315	.059	.483	.240
SWS 950	.157	.315	.181	.472	.205
SWS 951	.031	.243	.031	.500	.171
SWS 952	.099	.373	.096	.500	.194
SWS 968	.748	.400	.065	.698	.316
SWS 969	.335	.413	.059	.551	.335
SWS 1000	.240	.443	.068	.563	.320
SWS 1001	.375	.260	.062	.399	.200
SWS 1002	.093	.267	.062	.438	.203
SWS 1003	.188	.282	.031	.745	.234
SWS 1004	.141	.250	.031	.438	.135
SWS 1005	.078	.312	.016	.464	.255
SWS 1006	.172	.377	.063	.425	.260
SWS 1007	.046	.281	.046	.437	.201
SWS 1008	.046	.312	.046	.620	.205
SWS 1009	.063	.368	.031	.740	.320
SWS 1010	.047	.375	.109	.625	.250
SWS 1011	.063	.480	.094	.675	.257
SWS 1012	.125	.359	.062	.697	.266
SWS 1013	.047	.543	.031	.688	.508
SWS 1014	.031	.310	.031	.437	.253
SWS 1015	.046	.275	.093	.500	.145
SWS 1016	.126	.165	6.350 mm	4.242 mm	11.113 mm
SWS 1017	.062	.375	.093	.562	.260
SWS 1018	.187	.322	.062	.625	.255
SWS 1019	.047	.310	.031	.615	.253
SWS 1020	.063	.193		4.953 mm	1.588 mm
SWS 1021	.047	.248	.031	.630	.171
SWS 1022	.047	.375	.063	.625	.190
SWS 1023	.047	.300	.078	.555	.260
SWS 1024	.500	.370	.031	.620	.316
SWS 1025	.437	.375	.062	.562	.255
SWS 1026	.031	.253	.031	.588	.198
SWS 1027	.500	.365	.063	.500	.312
SWS 1028	.249	.250	.062	.500	.189
SWS 1029	.158	.300	.120	.500	.196
SWS 1030	.093	.281	.062	.490	.200
SWS 1031	.050	.248	.062	.500	.194
SWS 1032	.031	.250	.094	.510	.156
SWS 1033	.312	.312	.062	.500	.200
SWS 1034	.031	.312	.031	.500	.252
SWS 1035	.031	.230	.063	.500	.147
SWS 1036	.016	.250	.078	.500	.165
SWS 1037	.047	.281	.125	.500	.219
SWS 1038	1.000	.500	.062	.875	.390
SWS 1039	.310	.265	.070	.630	.184
SWS 1040	.093	.343	.062	.505	.257
SWS 1041	.335	.346	.050	.498	.260
SWS 1042	.027	.248	.031	.500	.199
SWS 1044	.080	.213	.078	.500	.145
SWS 1045	.188	.310	.250	.498	.195
SWS 1046	.150	.312	.160	.504	.265
SWS 1048	.437	.375	.062	.500	.250
SWS 1050	.156	.250	.062	.490	.190
SWS 1051	.047	.248	.063	.441	.194
SWS 1052	.156	.250	.125	.488	.190
SWS 1053	.170	.375	.125	.500	.257
SWS 1054	.141	.345	.063	.500	.285
SWS 1057	.094	.312	.063	.505	.260
SWS 1058	.031	.310	.031	.490	.193
SWS 1059	.060	.365	.030	.500	.260
SWS 1060	.078	.318	.031	.492	.265
SWS 1061	.156	.250	.125	.488	.215
SWS 1065	.188	.312	.063	.513	.175
SWS 1069	.630	.370	.055	.492	.315
SWS 1070	.078	.318	.031	.500	.193
SWS 1071	.253	.374	.187	.502	.318
SWS 1075	.250	.370	.062	.513	.260
SWS 1079	.122	.270	.167	.500	.222
SWS 1080	.016	.318	.031	.500	.141
SWS 1081	.375	.411	.093	.500	.380
SWS 1082	.047	.318	.031	.500	.141
SWS 1084	.047	.318	.031	.500	.141
SWS 1086	.063	.330	.063	.500	.150
SWS 1088	.109	.240	.063	.500	.138
SWS 1090	.047	.305	.031	.518	.080
SWS 1092	.075	.300	.175	.500	.195
SWS 1095	.125	.399	.031	.502	.349
SWS 1096	.375	.310	.055	.437	.196
SWS 1098	.140	.312	.062	.515	.260
SWS 1100	.938	.370	.065	.540	.260
SWS 1101	.093	.282	.031	.500	.234
SWS 1115	.500	.370	.063	.525	.267
SWS 1145	.030	.400	.030	.562	.318
SWS 1150	.047	.300	.047	.562	.260
SWS 1151	.104	.300	.046	.562	.260
SWS 1152	.500	.370	.063	.525	.265
SWS 1153	.040	.312	.060	.560	.257
SWS 1154	.050	.345	.060	.516	.260
SWS 1155	.047	.370	.024	.562	.335
SWS 1159	.562	.375	.062	.550	.255
SWS 1160	.063	.365	.109	.562	.215
SWS 1161	.620	.395	.063	.563	.355
SWS 1162	.422	.375	.063	.560	.255
SWS 1163	.469	.380	.063	.550	.247
SWS 1164	.031	.312	.125	.562	.169
SWS 1165	.250	.380	.063	.551	.248
SWS 1167	.128	.394	.197	.591	.157
SWS 1170	.375	.470	.063	.570	.385
SWS 1175	.783	.491	.039	.570	.413
SWS 1176	.335	.316	.075	.545	.166
SWS 1180	.047	.185	.063	.578	.140
SWS 1197	.342	.485	.125	.625	.390
SWS 1198	.093	.360	.063	.620	.320
SWS 1199	.100	.400	.062	.620	.260
SWS 1200	.047	.315	.047	.615	.208
SWS 1201	.125	.360	.375	.620	.320
SWS 1204	.500	.485	.025	.600	.324
SWS 1205	.031	.434	.046	.622	.383
SWS 1210	.031	.495	.063	.625	.378
SWS 1211	.139	.405	.066	.625	.320
SWS 1212	.025	.375	.062	.625	.200
SWS 1213	.031	.437	.031	.630	.380
SWS 1215	.062	.310	.031	.625	.195
SWS 1217	.030	.447	.030	.625	.378
SWS 1219	.047	.310	.063	.625	.172
SWS 1220	.750	.400	.125	.620	.260
SWS 1221		1.588 mm	.063	6.604 mm	3.175 mm
SWS 1222	.031	.448	.031	.625	.378
SWS 1225	.027	.248	.062	.625	.120
SWS 1227	.210	.379	.058	.625	.263
SWS 1228	.025	.219	.060	.625	.140
SWS 1230	.047	.305	.078	.550	.260
SWS 1232	.500	.370	.062	.620	.316
SWS 1233	.090	.311	.062	.625	.253
SWS 1235	.150	.502	.060	.620	.316
SWS 1240	16.002 mm	1.588 mm	9.525 mm	6.452 mm	4.763 mm
SWS 1241	.175	.490	.125	.650	.385
SWS 1242	.563	.485	.125	.625	.390
SWS 1243	.748	.500	.055	.630	.437
SWS 2498	.513	.412	.263	.687	.325
SWS 2499	.375	.312	.062	.513	.191
SWS 2501	.375	.312	.063	.513	.261
SWS 2502	.125	.312	.046	.467	.255
SWS 2503	.031	.375	.063	.625	.295
SWS 2504	.125	.437	.125	.687	.328
SWS 2505	.031	.312	.062	.500	.252
SWS 2506	15.875 mm	1.588 mm	12.700 mm	9.652 mm	7.938 mm
SWS 2507	.125	.370	.125	.600	.250
SWS 2508	.187	.500	.093	.674	.290
SWS 2509	1.109	.425	.141	.635	.201
SWS 2510	.375	.359	.375	.687	.263
SWS 2511	.313	.500	.063	.625	.395
SWS 2512	.334	.348	.046	.687	.263
SWS 2513	.125	.437	.063	.703	.335
SWS 2515	.420	.470	.075	.710	.420
SWS 2516	.280	.305	.062	.701	.258
SWS 2517	.110	.338	.190	.710	.255
SWS 2518	.146	.417	.051	.692	.249
SWS 2520	.156	.445	.156	.725	.375
SWS 2521	.156	.485	.063	.720	.270
SWS 2524	.150	.500	.125	.730	.315
SWS 2525	.343	.372	.250	.730	.257
SWS 2526	.500	.562	.062	.688	.437
SWS 2528	.187	.443	.062	.743	.375
SWS 2531	.312	.502	.078	.743	.383
SWS 2532	.155	.545	.100	.745	.391
SWS 2533	.375	.594	.375	.750	.380
SWS 2534	.187	.282	.031	.745	.234
SWS 2535	.118	.688	.032	.750	.569
SWS 2536	.031	.500	.062	.750	.375
SWS 2539	.344	.375	.094	.740	.266
SWS 2540	.125	.371	.094	.740	.266
SWS 2541	.078	.380	.094	.750	.266
SWS 2542	.047	.500	.188	.750	.430
SWS 2543	.779	.490	.095	.750	.189
SWS 2544	1.000	.375	.095	.750	.265
SWS 2545	.100	.500	.086	.750	.250
SWS 2546	.125	.500	.187	.750	.344
SWS 2547	.250	.617	.062	.750	.509
SWS 2548	.425	.590	.063	.750	.375
SWS 2549	.140	.708	.031	.750	.630
SWS 2550	.063	.488	.125	.734	.250
SWS 2551	.047	.409	.078	.753	.258
SWS 2552	.109	.500	.094	.743	.375
SWS 2553	.313	.500	.078	.750	.370
SWS 2554	.047	.490	.188	.735	.435
SWS 2555	.098	.428	.079	.747	.358
SWS 2556	.187	.500	.062	.750	.375
SWS 2557	.359	.507	.125	.748	.384
SWS 2558	.125	.500	.062	.750	.375
SWS 2559	.020	.495	.074	.750	.385
SWS 2560	.047	.371	.031	.750	.253
SWS 2561	.421	.434	.171	.750	.312
SWS 2562	.250	.505	.078	.755	.378
SWS 2563	.094	.375	.125	.750	.265
SWS 2564	.250	.250	.062	.750	.150
SWS 2565	.250	.500	.190	.750	.310
SWS 2566	.469	.375	.156	.740	.250
SWS 2567	.174	.625	.066	.750	.470
SWS 2568	.047	.341	.031	.750	.253
SWS 2569	.420	.436	.172	.550	.307
SWS 2570	.687	.385	.140	.740	.260
SWS 2571	.320	.580	.030	.750	.517
SWS 2572	.500	.375	.062	.750	.125
SWS 2573	.125	.375	.093	.750	.172
SWS 2574	.360	.506	.062	.750	.380
SWS 2575	.797	.320	.094	.750	.190
SWS 2576	.031	.500	.031	.750	.219
SWS 2578	.187	.625	.750	.510	.185
SWS 2580	.313	.563	.031	.745	.500
SWS 2585	.250	.605	.500	.740	.380
SWS 2586	.250	.500	.125	.750	.281
SWS 2587	.437	.625	.062	.750	.500
SWS 2590	.018	.305	.085	.745	.200
SWS 3001	.125	.437	.062	.693	.328
SWS 3002	.046	.375	.046	.750	.323
SWS 3003	.219	.380	.094	.750	.266
SWS 3004	.063	.359	.094	.750	.152
SWS 3005	.156	.498	.031	.750	.378
SWS 3006	.031	.500	.125	.750	.375
SWS 3007	.062	.500	.125	.750	.375
SWS 3008	.063	.370	.031	.745	.320
SWS 3009	.047	.410	.078	.760	.258
SWS 3010	.027	.310	.031	.750	.257
SWS 3011	.196	.562	.026	.763	.394
SWS 3012	.395	.430	.065	.740	.322
SWS 3015	1.005	.505	.060	.752	.320
SWS 3016	.050	.556	.062	.745	.515
SWS 3017	.156	.510	.500	.755	.385
SWS 3020	.305	.495	.130	.740	.219
SWS 3021	.440	.495	.063	.745	.390
SWS 3022	.188	.627	.092	.750	.506
SWS 3023	.216	.481	.126	.765	.250
SWS 3030	.252	.392	.079	.780	.250
SWS 3031	.110	.498	.130	.810	.388
SWS 3032	.108	.502	.132	.805	.324
SWS 3100	.325	.435	.060	.825	.310
SWS 3101	.031	.375	.063	.750	.260
SWS 3102	.500	.620	.062	.825	.520
SWS 3103	.500	.617	.125	.872	.335
SWS 3104	.125	.437	.075	.750	.265
SWS 3105	.190	.435	.060	.825	.310
SWS 3106	.204	.626	.062	.875	.379
SWS 3150	1.000	.500	.063	.875	.375
SWS 3151	.375	.633	.125	.875	.510
SWS 3155	22.225 mm	3.175 mm	16.002 mm	11.176 mm	9.525 mm
SWS 3160	.500	.750	.063	.875	.635
SWS 3165	.375	.620	.125	.875	.250
SWS 3200	.188	.792	.125	.995	.695
SWS 3205	.625	.787	.125	.995	.695
SWS 3210	1.000	.787	.125	.995	.695
SWS 3500	.188	.498	.063	.750	.378
SWS 3501	.109	.577	.094	.750	.390
SWS 3502	.422	.625	.047	.790	.550
SWS 3503	.813	.375	.125	.625	.255
SWS 3504	.812	.375	.125	.625	.260
SWS 3505	.100	.655	.055	.800	.563
SWS 3507	.250	.452	.100	.830	.253
SWS 3510	.406	.445	.094	.825	.306
SWS 3511	.203	.750	.047	.880	.617
SWS 3512	.935	.497	.110	.872	.385
SWS 3513	.250	.617	.125	.875	.335
SWS 3514	.375	.484	.063	.875	.386
SWS 3515	.375	.531	.063	.875	.438
SWS 3520	.531	.470	.078	.945	.406
SWS 3562	.250	.556	.125	.980	.380
SWS 3563	.080	.306	.125	1.000	.205
SWS 3564	.250	.546	.125	.980	.406
SWS 3580	.563	1.000	.047	1.250	.559
SWS 3599	.625	.666	.125	1.000	.520
SWS 3600	.660	.600	.160	1.010	.260
SWS 3601	.188	.435	.250	1.000	.325
SWS 3602	.031	.616	.094	1.000	.515
SWS 3603	.050	.500	.070	1.005	.453
SWS 3604	25.552 mm	1.981 mm	12.802 mm	9.550 mm	6.172 mm
SWS 3605	25.527 mm	1.588 mm	12.700 mm	9.525 mm	7.938 mm
SWS 3606	25.400 mm	1.016 mm	15.875 mm	13.081 mm	8.382 mm
SWS 3607	27.127 mm	1.575 mm	22.758 mm	16.002 mm	13.233 mm
SWS 3608	25.400 mm	3.175 mm	17.450 mm	12.954 mm	12.700 mm
SWS 3609	25.400 mm	3.302 mm	18.923 mm	16.383 mm	3.048 mm
SWS 3610	25.400 mm	1.588 mm	12.700 mm	9.703 mm	14.288 mm
SWS 3612	25.400 mm	1.905 mm	14.275 mm	4.826 mm	2.159 mm
SWS 3615	25.400 mm	3.175 mm	12.700 mm	9.525 mm	19.050 mm
SWS 3650	25.400 mm	1.981 mm	19.558 mm	12.903 mm	2.769 mm
SWS 3680	25.400 mm	1.588 mm	7.569 mm	5.156 mm	1.588 mm
SWS 3685	27.026 mm	1.588 mm	19.990 mm	15.545 mm	1.588 mm
SWS 3686	28.067 mm	2.413 mm	18.237 mm	13.081 mm	7.137 mm
SWS 3687	27.991 mm	0.991 mm	23.012 mm	21.006 mm	2.997 mm
SWS 3690	28.575 mm	2.388 mm	17.780 mm	12.954 mm	11.113 mm
SWS 3691	29.464 mm	3.251 mm	12.573 mm	9.576 mm	1.524 mm
SWS 3693	31.750 mm	3.962 mm	25.451 mm	20.777 mm	10.719 mm
SWS 3694	28.575 mm	4.750 mm	18.237 mm	13.081 mm	6.350 mm
SWS 3695	31.750 mm	1.143 mm	12.192 mm	9.652 mm	3.175 mm
SWS 4001	28.575 mm	1.588 mm	18.796 mm	13.081 mm	2.388 mm
SWS 4002	31.242 mm	1.588 mm	24.892 mm	12.954 mm	2.388 mm
SWS 4003	28.067 mm	3.175 mm	19.101 mm	13.081 mm	7.137 mm
SWS 4004	31.623 mm	3.175 mm	22.225 mm	15.926 mm	12.700 mm
SWS 4005	31.801 mm	1.588 mm	15.240 mm	13.665 mm	10.312 mm
SWS 4006	31.775 mm	1.588 mm	13.411 mm	11.963 mm	10.312 mm
SWS 4007	44.171 mm	5.156 mm	27.813 mm	11.049 mm	5.156 mm
SWS 4008	31.750 mm	3.962 mm	25.273 mm	22.479 mm	8.738 mm
SWS 4009	28.575 mm	1.588 mm	11.113 mm	7.938 mm	19.050 mm
SWS 4010	31.750 mm	1.588 mm	23.622 mm	14.275 mm	2.388 mm
SWS 4011	31.750 mm	1.575 mm	25.121 mm	14.275 mm	2.388 mm
SWS 4012	41.910 mm	1.524 mm	35.052 mm	28.575 mm	1.524 mm
SWS 4013	44.450 mm	3.175 mm	34.925 mm	25.781 mm	15.875 mm
SWS 4014	38.125 mm	3.378 mm	31.699 mm	23.927 mm	6.045 mm
SWS 4016	31.750 mm	6.350 mm	10.643 mm	6.452 mm	2.540 mm
SWS 4017	39.878 mm	4.445 mm	26.797 mm	22.530 mm	4.318 mm
SWS 4018	38.100 mm	3.048 mm	15.621 mm	6.731 mm	6.350 mm
SWS 5000	49.581 mm	3.175 mm	12.294 mm	9.652 mm	15.875 mm
SWS 5001	52.451 mm	3.175 mm	26.670 mm	20.472 mm	12.700 mm
SWS 5002	52.451 mm	3.175 mm	26.670 mm	19.888 mm	12.700 mm
SWS 5009	53.619 mm	3.175 mm	15.316 mm	6.858 mm	17.856 mm
SWS 1214	16.002 mm	1.270 mm	9.525 mm	7.112 mm	3.810 mm
SWS 883	10.338 mm	1.575 mm	6.604 mm	4.572 mm	12.700 mm
SWS 1177	14.503 mm	1.880 mm	13.360 mm	11.201 mm	2.794 mm
SWS 1178	15.189 mm	1.778 mm	12.116 mm	9.449 mm	3.200 mm
SWS 2496	8.712 mm	6.680 mm	5.893 mm	3.302 mm	3.810 mm
SWS 2497	8.712 mm	8.636 mm	5.893 mm	3.302 mm	3.810 mm
SWS 1062	12.700 mm	1.600 mm	6.731 mm	4.293 mm	1.905 mm
SWS 3161	22.225 mm	1.016 mm	17.475 mm	14.453 mm	8.509 mm
SWS 3697	31.750 mm	5.385 mm	25.400 mm	8.636 mm	2.540 mm
SWS 2538	19.050 mm	1.575 mm	11.913 mm	8.738 mm	3.175 mm
SWS 3149	21.971 mm	1.143 mm	15.240 mm	12.954 mm	11.557 mm
SWS 3688	28.702 mm	1.575 mm	22.352 mm	19.050 mm	7.950 mm
SWS 604	7.620 mm	1.194 mm	4.928 mm	4.064 mm	3.175 mm
SWS 898	11.125 mm	1.575 mm	8.890 mm	3.175 mm	1.270 mm
SWS 1047	12.700 mm	3.175 mm	9.525 mm	6.350 mm	31.750 mm
SWS 954	12.700 mm	0.991 mm	5.944 mm	4.953 mm	2.159 mm
SWS 252	6.096 mm	3.302 mm	3.505 mm	2.896 mm	1.194 mm
SWS 953	12.700 mm	1.575 mm	7.798 mm	6.731 mm	4.750 mm
SWS 1049	12.700 mm	1.016 mm	8.763 mm	6.731 mm	1.930 mm
SWS 253	5.080 mm	1.981 mm	3.429 mm	3.048 mm	1.321 mm
SWS 479	7.938 mm	1.575 mm	4.369 mm	3.734 mm	4.750 mm
SWS 3689	28.702 mm	1.575 mm	22.352 mm	19.253 mm	7.950 mm
SWS 2102	15.748 mm	1.448 mm	9.296 mm	7.874 mm	5.588 mm
SWS 480	7.874 mm	0.940 mm	6.147 mm	4.166 mm	2.540 mm
SWS 895	11.100 mm	1.575 mm	6.960 mm	5.055 mm	1.270 mm
SWS 970	12.700 mm	2.667 mm	6.223 mm	4.343 mm	5.080 mm
SWS 3521	23.876 mm	2.286 mm	14.224 mm	6.528 mm	1.524 mm
SWS 616	8.128 mm	0.991 mm	6.350 mm	5.537 mm	3.200 mm
SWS 838	8.890 mm	1.702 mm	6.096 mm	4.775 mm	4.572 mm
SWS 2579	19.050 mm	6.096 mm	12.700 mm	9.398 mm	4.572 mm
SWS 2581	19.050 mm	1.981 mm	12.827 mm	8.001 mm	6.350 mm
SWS 3696	31.750 mm	3.810 mm	25.400 mm	8.636 mm	2.540 mm
SWS 254	5.156 mm	1.016 mm	3.962 mm	2.540 mm	7.137 mm
SWS 843	9.779 mm	1.295 mm	6.350 mm	3.480 mm	1.829 mm
SWS 1207	15.875 mm	1.016 mm	7.137 mm	5.563 mm	4.140 mm
SWS 1208	15.748 mm	1.524 mm	12.751 mm	8.026 mm	2.540 mm
SWS 1244	16.129 mm	1.067 mm	9.652 mm	5.486 mm	2.286 mm
SWS 3156	22.200 mm	1.600 mm	16.104 mm	12.878 mm	17.501 mm
SWS 845	9.398 mm	0.787 mm	6.147 mm	4.572 mm	8.788 mm
SWS 256	6.172 mm	1.524 mm	5.055 mm	3.175 mm	2.540 mm
SWS 911	10.871 mm	3.937 mm	6.629 mm	4.140 mm	1.219 mm
SWS 881	7.925 mm	3.175 mm	6.350 mm	2.921 mm	4.750 mm
SWS 1239	15.875 mm	0.813 mm	6.604 mm	5.080 mm	4.775 mm
SWS 2500	12.954 mm	2.388 mm	6.350 mm	3.962 mm	0.787 mm
SWS 2529	19.050 mm	1.524 mm	13.411 mm	9.779 mm	15.088 mm
SWS 3598	25.400 mm	1.270 mm	19.050 mm	16.002 mm	5.080 mm
SWS 3999	31.750 mm	3.302 mm	22.225 mm	12.192 mm	12.319 mm
SWS 851	9.398 mm	1.270 mm	6.223 mm	3.683 mm	3.937 mm
SWS 1063	11.430 mm	3.175 mm	6.350 mm	4.953 mm	11.684 mm
SWS 1171	15.875 mm	1.143 mm	11.938 mm	8.763 mm	1.524 mm
SWS 3206	25.400 mm	1.270 mm	19.812 mm	16.256 mm	5.080 mm
SWS 957	7.137 mm	7.239 mm	5.918 mm	4.928 mm	1.524 mm
SWS 3024	19.050 mm	1.778 mm	12.446 mm	9.525 mm	6.096 mm
SWS 1223	15.875 mm	1.194 mm	8.331 mm	6.756 mm	1.854 mm
SWS 2104	12.700 mm	0.889 mm	9.398 mm	7.874 mm	5.715 mm
SWS 631	6.350 mm	0.889 mm	4.750 mm	1.778 mm	12.700 mm
SWS 3565	24.994 mm	1.499 mm	13.894 mm	10.109 mm	15.697 mm
SWS 482	9.525 mm	1.143 mm	6.350 mm	4.191 mm	4.775 mm
SWS 956	12.700 mm	0.813 mm	7.925 mm	6.604 mm	4.750 mm
SWS 1066	15.875 mm	1.143 mm	6.248 mm	4.902 mm	4.445 mm
SWS 1245	25.400 mm	3.302 mm	12.522 mm	7.112 mm	12.700 mm
SWS 3596	25.400 mm	3.302 mm	15.723 mm	10.414 mm	12.700 mm
SWS 3025	19.050 mm	1.575 mm	15.875 mm	12.827 mm	7.938 mm
SWS 0623	8.255 mm	1.930 mm	5.563 mm	4.318 mm	1.880 mm
SWS 2523	19.050 mm	4.775 mm	12.700 mm	6.350 mm	1.575 mm
SWS 2527	19.050 mm	1.600 mm	11.125 mm	7.950 mm	17.475 mm
SWS 2582	15.875 mm	1.575 mm	12.700 mm	7.925 mm	6.350 mm
SWS 0892	9.144 mm	1.016 mm	6.350 mm	3.810 mm	2.413 mm
SWS 1218	14.249 mm	1.499 mm	11.252 mm	8.204 mm	3.505 mm
SWS 3589	25.273 mm	3.175 mm	18.796 mm	12.802 mm	15.723 mm
SWS 0624	7.925 mm	0.787 mm	5.359 mm	4.470 mm	1.270 mm
SWS 3595	22.225 mm	1.600 mm	19.050 mm	14.275 mm	6.350 mm
SWS 3013	13.843 mm	3.759 mm	10.566 mm	6.477 mm	2.692 mm
SWS 0958	12.700 mm	0.762 mm	9.271 mm	8.077 mm	1.270 mm
SWS 1169	14.275 mm	1.575 mm	7.925 mm	4.775 mm	6.350 mm
SWS 3699	29.997 mm	2.007 mm	9.500 mm	5.004 mm	2.997 mm
SWS 1087	16.002 mm	0.864 mm	8.179 mm	6.477 mm	2.794 mm
SWS 2588	19.101 mm	1.473 mm	12.090 mm	9.601 mm	4.978 mm
SWS 1077	12.167 mm	1.270 mm	6.680 mm	4.216 mm	1.270 mm
SWS 3998	31.699 mm	3.302 mm	22.225 mm	15.926 mm	6.350 mm
SWS 2583	12.954 mm	1.524 mm	8.001 mm	4.445 mm	2.159 mm
SWS 0181	5.004 mm	0.787 mm	2.997 mm	1.905 mm	3.175 mm
SWS 3508	14.122 mm	1.524 mm	11.506 mm	9.576 mm	11.113 mm
SWS 3026	25.400 mm	3.175 mm	15.875 mm	13.081 mm	3.175 mm
SWS 4020	59.131 mm	3.175 mm	24.587 mm	19.558 mm	7.925 mm
SWS 3613	25.400 mm	2.286 mm	18.796 mm	5.563 mm	2.032 mm
SWS 0932	11.100 mm	0.737 mm	7.925 mm	6.604 mm	3.353 mm
SWS 2589	22.276 mm	3.429 mm	14.351 mm	12.802 mm	1.448 mm
SWS 1083	12.700 mm	1.575 mm	9.144 mm	6.604 mm	4.064 mm
SWS 1102	19.050 mm	2.540 mm	7.112 mm	5.080 mm	1.270 mm
SWS 0923	11.430 mm	1.600 mm	5.461 mm	4.826 mm	4.826 mm
SWS 3154	22.225 mm	3.175 mm	15.748 mm	9.652 mm	9.525 mm
SWS 1172	16.002 mm	2.007 mm	11.989 mm	10.008 mm	10.008 mm
SWS 1193	18.542 mm	4.699 mm	12.319 mm	7.595 mm	6.223 mm
SWS 0638	11.125 mm	1.930 mm	5.715 mm	4.216 mm	1.880 mm
SWS 0308	6.223 mm	1.575 mm	3.810 mm	2.870 mm	0.457 mm
SWS 3516	20.955 mm	2.388 mm	11.176 mm	7.899 mm	10.312 mm
SWS 1089	12.827 mm	1.270 mm	10.414 mm	9.398 mm	1.270 mm
SWS 1072	15.621 mm	1.575 mm	8.788 mm	6.401 mm	1.651 mm
SWS 0959	19.177 mm	8.052 mm	9.474 mm	6.909 mm	5.613 mm
SWS 4021	48.997 mm	2.007 mm	27.000 mm	23.012 mm	3.505 mm
SWS 3027	27.991 mm	2.997 mm	18.009 mm	13.995 mm	18.009 mm
SWS 258	7.188 mm	1.143 mm	5.055 mm	3.124 mm	6.350 mm

Nylon Shoulder Washers-1

E&T Fasteners

Nylon Shoulder Washers Variations

Nylon Shoulder Washers

Nylon Standard Shoulder Washers

Nylon Special Flat Washer

Nylon Cup Washers

Nylon Retaining Washers
