All Dimensions are in Millimeters
| Nom. Screw Length |
Tolerance on Length
mm |
| to 3 mm incl. |
0.2 |
| over 3 to 10 mm |
0.3 |
| over 10 to 16 mm |
0.4 |
| over 16 to 50 mm |
0.5 |
| over 50 mm |
1.0 |
All tolerances are plus and minus.
May also be available in Nylon, PVC, Polypropylene, Phenolic, PTFE, G10, Kel-F®, Delrin/Acetal, Neoprene, Mylar, Glass-Filled Nylon, Peek, CPVC, ABS, PVDF / Kynar, Isoplast, Polycarbonate, Polyethylene, or Ultem®

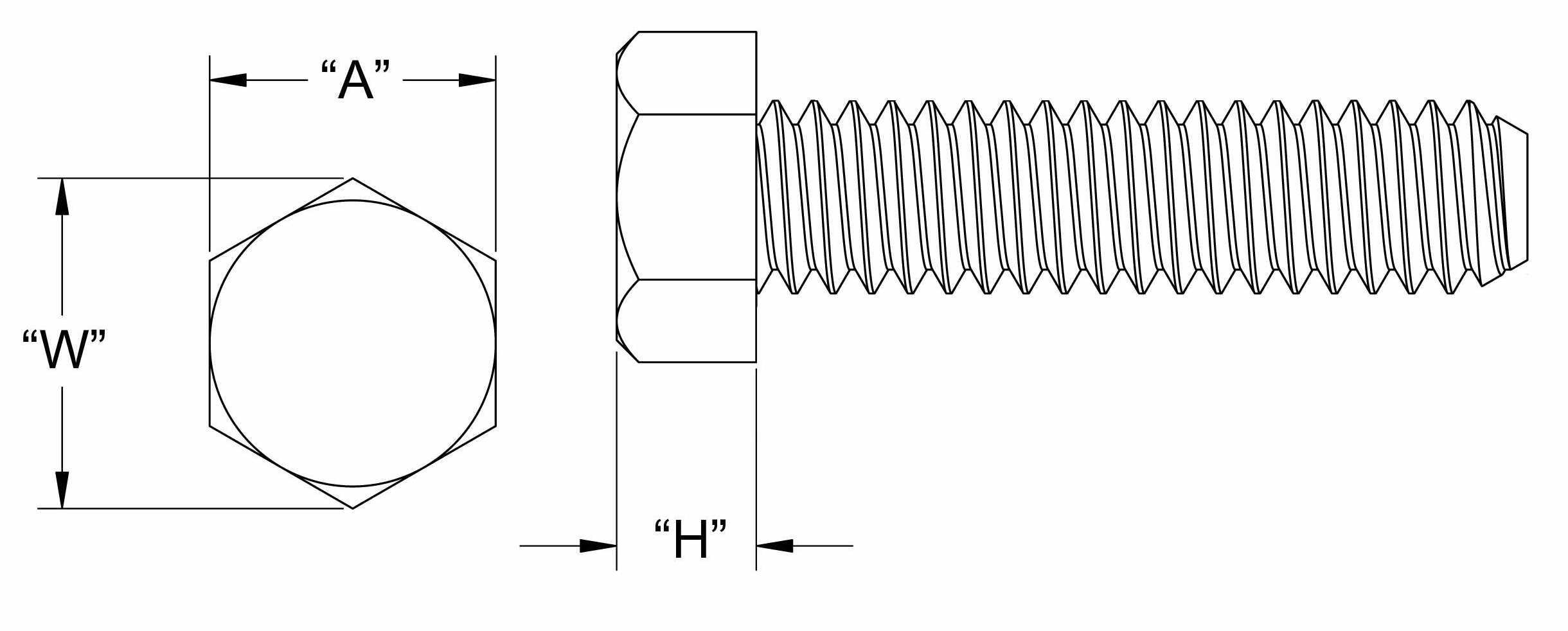

Metric Hex Machine Screws Variations
| Description |
A |
H |
Length |
Thread Size |
W |
Quote |
| M2 X 4 |
3.02 - 3.20 |
1.3 - 1.6 |
4 |
M2 X 0.40 |
3.38 Min. |
 |
| M2 X 5 |
3.02 - 3.20 |
1.3 - 1.6 |
5 |
M2 X 0.40 |
3.38 Min. |
|
| M2 X 6 |
3.02 - 3.20 |
1.3 - 1.6 |
6 |
M2 X 0.40 |
3.38 Min. |
|
| M2 X 8 |
3.02 - 3.20 |
1.3 - 1.6 |
8 |
M2 X 0.40 |
3.38 Min. |
|
| M2 X 10 |
3.02 - 3.20 |
1.3 - 1.6 |
10 |
M2 X 0.40 |
3.38 Min. |
|
| M2 X 12 |
3.02 - 3.20 |
1.3 - 1.6 |
12 |
M2 X 0.40 |
3.38 Min. |
|
| M2 X 16 |
3.02 - 3.20 |
1.3 - 1.6 |
16 |
M2 X 0.40 |
3.38 Min. |
|
| M2 X 20 |
3.02 - 3.20 |
1.3 - 1.6 |
20 |
M2 X 0.40 |
3.38 Min. |
|
| M2 X 25 |
3.02 - 3.20 |
1.3 - 1.6 |
25 |
M2 X 0.40 |
3.38 Min. |
|
| M2.5 X 4 |
3.82 - 4.00 |
1.8 - 2.1 |
4 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 5 |
3.82 - 4.00 |
1.8 - 2.1 |
5 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 6 |
3.82 - 4.00 |
1.8 - 2.1 |
6 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 8 |
3.82 - 4.00 |
1.8 - 2.1 |
8 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 10 |
3.82 - 4.00 |
1.8 - 2.1 |
10 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 12 |
3.82 - 4.00 |
1.8 - 2.1 |
12 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 16 |
3.82 - 4.00 |
1.8 - 2.1 |
16 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 20 |
3.82 - 4.00 |
1.8 - 2.1 |
20 |
M2.5 X 0.45 |
4.28 Min. |
|
| M2.5 X 25 |
3.82 - 4.00 |
1.8 - 2.1 |
25 |
M2.5 X 0.45 |
4.28 Min. |
|
| M3 X 4 |
4.82 - 5.00 |
2.0 - 2.3 |
4 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 5 |
4.82 - 5.00 |
2.0 - 2.3 |
5 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 6 |
4.82 - 5.00 |
2.0 - 2.3 |
6 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 8 |
4.82 - 5.00 |
2.0 - 2.3 |
8 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 10 |
4.82 - 5.00 |
2.0 - 2.3 |
10 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 12 |
4.82 - 5.00 |
2.0 - 2.3 |
12 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 16 |
4.82 - 5.00 |
2.0 - 2.3 |
16 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 20 |
4.82 - 5.00 |
2.0 - 2.3 |
20 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 25 |
4.82 - 5.00 |
2.0 - 2.3 |
25 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 30 |
4.82 - 5.00 |
2.0 - 2.3 |
30 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 35 |
4.82 - 5.00 |
2.0 - 2.3 |
35 |
M3 X 0.50 |
5.40 Min. |
|
| M3 X 42 |
4.82 - 5.00 |
2.0 - 2.3 |
42 |
M3 X 0.50 |
5.40 Min. |
|
| M3.5 X 5 |
5.32 - 5.50 |
2.3 - 2.6 |
5 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 6 |
5.32 - 5.50 |
2.3 - 2.6 |
6 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 7 |
5.32 - 5.50 |
2.3 - 2.6 |
7 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 8 |
5.32 - 5.50 |
2.3 - 2.6 |
8 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 10 |
5.32 - 5.50 |
2.3 - 2.6 |
10 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 12 |
5.32 - 5.50 |
2.3 - 2.6 |
12 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 16 |
5.32 - 5.50 |
2.3 - 2.6 |
16 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 20 |
5.32 - 5.50 |
2.3 - 2.6 |
20 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 25 |
5.32 - 5.50 |
2.3 - 2.6 |
25 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 35 |
5.32 - 5.50 |
2.3 - 2.6 |
35 |
M3.5 X 0.60 |
5.96 Min. |
|
| M3.5 X 42 |
5.32 - 5.50 |
2.3 - 2.6 |
42 |
M3.5 X 0.60 |
5.96 Min. |
|
| M4 X 6 |
6.78 - 7.00 |
2.6 - 3.0 |
6 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 8 |
6.78 - 7.00 |
2.6 - 3.0 |
8 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 10 |
6.78 - 7.00 |
2.6 - 3.0 |
10 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 12 |
6.78 - 7.00 |
2.6 - 3.0 |
12 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 16 |
6.78 - 7.00 |
2.6 - 3.0 |
16 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 20 |
6.78 - 7.00 |
2.6 - 3.0 |
20 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 25 |
6.78 - 7.00 |
2.6 - 3.0 |
25 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 30 |
6.78 - 7.00 |
2.6 - 3.0 |
30 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 35 |
6.78 - 7.00 |
2.6 - 3.0 |
35 |
M4 X 0.70 |
7.59 Min. |
|
| M4 X 40 |
6.78 - 7.00 |
2.6 - 3.0 |
40 |
M4 X 0.70 |
7.59 Min. |
|
| M5 X 6 |
7.78 - 8.00 |
3.3 - 3.8 |
6 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 8 |
7.78 - 8.00 |
3.3 - 3.8 |
8 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 10 |
7.78 - 8.00 |
3.3 - 3.8 |
10 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 12 |
7.78 - 8.00 |
3.3 - 3.8 |
12 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 14 |
7.78 - 8.00 |
3.3 - 3.8 |
14 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 16 |
7.78 - 8.00 |
3.3 - 3.8 |
16 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 20 |
7.78 - 8.00 |
3.3 - 3.8 |
20 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 25 |
7.78 - 8.00 |
3.3 - 3.8 |
25 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 30 |
7.78 - 8.00 |
3.3 - 3.8 |
30 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 35 |
7.78 - 8.00 |
3.3 - 3.8 |
35 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 40 |
7.78 - 8.00 |
3.3 - 3.8 |
40 |
M5 X 0.80 |
8.71 Min. |
|
| M5 X 70 |
7.78 - 8.00 |
3.3 - 3.8 |
70 |
M5 X 0.80 |
8.71 Min. |
|
| M6 X 5 |
9.78 - 10.00 |
4.1 - 4.7 |
5 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 8 |
9.78 - 10.00 |
4.1 - 4.7 |
8 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 10 |
9.78 - 10.00 |
4.1 - 4.7 |
10 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 12 |
9.78 - 10.00 |
4.1 - 4.7 |
12 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 16 |
9.78 - 10.00 |
4.1 - 4.7 |
16 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 20 |
9.78 - 10.00 |
4.1 - 4.7 |
20 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 25 |
9.78 - 10.00 |
4.1 - 4.7 |
25 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 30 |
9.78 - 10.00 |
4.1 - 4.7 |
30 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 35 |
9.78 - 10.00 |
4.1 - 4.7 |
35 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 40 |
9.78 - 10.00 |
4.1 - 4.7 |
40 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 45 |
9.78 - 10.00 |
4.1 - 4.7 |
45 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 50 |
9.78 - 10.00 |
4.1 - 4.7 |
50 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 60 |
9.78 - 10.00 |
4.1 - 4.7 |
60 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 70 |
9.78 - 10.00 |
4.1 - 4.7 |
70 |
M6 X 1.00 |
10.95 Min. |
|
| M6 X 75 |
9.78 - 10.00 |
4.1 - 4.7 |
75 |
M6 X 1.00 |
10.95 Min. |
|
| M8 X 6 |
12.73 - 13.00 |
5.2 - 6.0 |
6 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 10 |
12.73 - 13.00 |
5.2 - 6.0 |
10 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 16 |
12.73 - 13.00 |
5.2 - 6.0 |
16 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 20 |
12.73 - 13.00 |
5.2 - 6.0 |
20 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 25 |
12.73 - 13.00 |
5.2 - 6.0 |
25 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 30 |
12.73 - 13.00 |
5.2 - 6.0 |
30 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 35 |
12.73 - 13.00 |
5.2 - 6.0 |
35 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 40 |
12.73 - 13.00 |
5.2 - 6.0 |
40 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 50 |
12.73 - 13.00 |
5.2 - 6.0 |
50 |
M8 X 1.25 |
14.26 Min. |
|
| M8 X 70 |
12.73 - 13.00 |
5.2 - 6.0 |
70 |
M8 X 1.25 |
14.26 Min. |
|
| M10 X 16 |
15.73 - 16.00 |
6.5 - 7.5 |
16 |
M10 X 1.50 |
17.62 Min. |
|
| M10 X 20 |
15.73 - 16.00 |
6.5 - 7.5 |
20 |
M10 X 1.50 |
17.62 Min. |
|
| M10 X 25 |
15.73 - 16.00 |
6.5 - 7.5 |
25 |
M10 X 1.50 |
17.62 Min. |
|
| M10 X 30 |
15.73 - 16.00 |
6.5 - 7.5 |
30 |
M10 X 1.50 |
17.62 Min. |
|
| M10 X 35 |
15.73 - 16.00 |
6.5 - 7.5 |
35 |
M10 X 1.50 |
17.62 Min. |
|
| M10 X 50 |
15.73 - 16.00 |
6.5 - 7.5 |
50 |
M10 X 1.50 |
17.62 Min. |
|
| M10 X 60 |
15.73 - 16.00 |
6.5 - 7.5 |
60 |
M10 X 1.50 |
17.62 Min. |
|
| M12 X 20 |
17.73 - 18.00 |
7.8 - 9.0 |
20 |
M12 X 1.75 |
19.86 Min. |
|
| M12 X 25 |
17.73 - 18.00 |
7.8 - 9.0 |
25 |
M12 X 1.75 |
19.86 Min. |
|
| M12 X 30 |
17.73 - 18.00 |
7.8 - 9.0 |
30 |
M12 X 1.75 |
19.86 Min. |
|
| M12 X 35 |
17.73 - 18.00 |
7.8 - 9.0 |
35 |
M12 X 1.75 |
19.86 Min. |
|
| M12 X 40 |
17.73 - 18.00 |
7.8 - 9.0 |
40 |
M12 X 1.75 |
19.86 Min. |
|
| M12 X 50 |
17.73 - 18.00 |
7.8 - 9.0 |
50 |
M12 X 1.75 |
19.86 Min. |
|
| M12 X 60 |
17.73 - 18.00 |
7.8 - 9.0 |
60 |
M12 X 1.75 |
19.86 Min. |
|
| M12 X 12 |
17.73-18 |
7.8-9 |
12 |
M12 X 1.25 |
19.86 |
|
| M10 X 40 |
15.73-16 |
6.5-7.5 |
40 |
M10 X 1.5 |
17.62 |
|
