Standard Flat Washers
Standard Flat Washers come with an inner diameter ranging from .090 to .505.
|

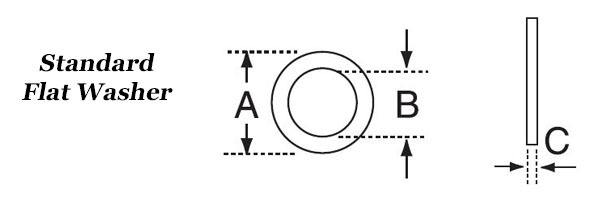

Item
|
SCREW
|
A
|
B
|
C
|
Qty.* | |
|---|---|---|---|---|---|---|
| WSR090X250X032N | 2 | .250 | .090 | .032 | ||
| WSR090X250X062N | 2 | .250 | .090 | .062 | ||
| WSR090X250X093N | 2 | .250 | .090 | .093 | ||
| WSR115X250X032N | 4 | .250 | .115 | .032 | ||
| WSR115X250X062N | 4 | .250 | .115 | .062 | ||
| WSR115X250X093N | 4 | .250 | .115 | .093 | ||
| WSR140X312X032N | 6 | .312 | .140 | .032 | ||
| WSR140X312X062N | 6 | .312 | .140 | .062 | ||
| WSR140X312X093N | 6 | .312 | .140 | .093 | ||
| WSR171X375X032N | 8 | .375 | .171 | .032 | ||
| WSR171X375X062N | 8 | .375 | .171 | .062 | ||
| WSR171X375X093N | 8 | .375 | .171 | .093 | ||
| WSR194X375X032N | 10 | .375 | .194 | .032 | ||
| WSR194X375X062N | 10 | .375 | .194 | .062 | ||
| WSR194X375X093N | 10 | .375 | .194 | .093 | ||
| WSR257X500X032N | 1/4 | .500 | .257 | .032 | ||
| WSR257X500X062N | 1/4 | .500 | .257 | .062 | ||
| WSR257X500X093N | 1/4 | .500 | .257 | .093 | ||
| WSR317X500X032N | 5/16 | .500 | .317 | .032 | ||
| WSR317X500X062N | 5/16 | .500 | .317 | .062 | ||
| WSR317X500X093N | 5/16 | .500 | .317 | .093 | ||
| WSR380X625X032N | 3/8 | .625 | .380 | .032 | ||
| WSR380X625X062N | 3/8 | .625 | .380 | .062 | ||
| WSR380X625X093N | 3/8 | .625 | .380 | .093 | ||
| WSR443X750X032N | 7/16 | .750 | .443 | .032 | ||
| WSR443X750X062N | 7/16 | .750 | .443 | .062 | ||
| WSR443X750X093N | 7/16 | .750 | .443 | .093 | ||
| WSR505X750X032N | 1/2 | .750 | .505 | .032 | ||
| WSR505X750X062N | 1/2 | .750 | .505 | .062 | ||
| WSR505X750X093N | 1/2 | .750 | .505 | .093 |
