Shoulder Washers

Back to Shoulder Washers

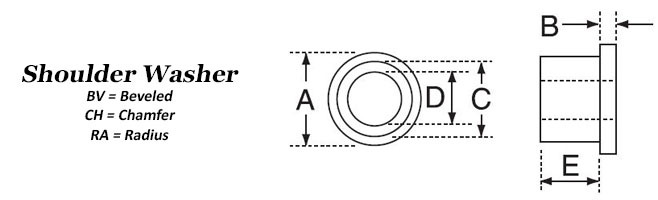

Shoulder Washers Image 1 Shoulder Washers Image 2

Shoulder Washers come with an inner diameter ranging from .090 to 12.7mm.

Item
A
B
C
D
E
Qty.*
SHWSR090X125N .181 .046 .120 .090 .125
SHWSR090X375N .181 .047 .120 .090 .375
SHWSR093X109N .208 .031 .125 .093 .109
SHWSR101X031N .218 .040 .135 .101 .031
SHWSR115X031N .218 .047 .135 .115 .031
SHWSR122X047N .230 .016 .142 .122 .047
INS115X3/64N .235 .047 .145 .115 .047
SHWSR115X093N .235 .046 .145 .115 .093
SHWSR115X125N .235 .046 .145 .115 .125
SHWSR115X187N .235 .046 .145 .115 .187
SHWSR115X250N .235 .047 .145 .115 .250
SHWSR122X059N .244 .039 .157 .122 .059
SHWSR122X079N .244 .039 .157 .122 .079
SHWSR093X040N .250 .040 .156 .093 .040
SHWSR098X065N .250 .030 .140 .098 .065
SHWSR110X040N .250 .040 .140 .110 .040
SHWSR115X047X250N .250 .125 .155 .115 .047
SHWSR116X046N .250 .031 .185 .116 .046
SHWSR118X120N .250 .055 .150 .120 .120
SHWSR135X120N .250 .031 .195 .130 .125
SHWSR148X047N .250 .031 .188 .148 .047
SHWSR140X046N .260 .062 .190 .140 .046
SHWSR150X156N .266 .031 .205 .150 .156
SHWSR122X157N .268 .047 .173 .122 .157
SHWSR122X040N .281 .040 .187 .122 .040
SHWSR123X250N .283 .045 .199 .123 .250
INS140X125N .290 .047 .170 .140 .125
INS140X187N .290 .046 .170 .140 .187
INS140X250N .290 .047 .170 .140 .250
SHWSR123X031N .312 .063 .187 .123 .031
SHWSR140X135N .312 .047 .177 .140 .135
SHWSR184X187N .312 .031 .234 .184 .187
SHWSR129X330N .315 .050 .190 .129 .330
INSM4X3MMN .323 .059 .236 .161 .118
SHWSR161X157N .323 .059 .236 .161 .157
SHWSR161X276N .323 .059 .236 .161 .276
SHWSR161X354N .323 .059 .236 .161 .354
SHWSR146X040N .328 .040 .218 .146 .040
SHWSR146X040X218N .328 .047 .218 .146 .047
SHWSR156X375N .344 .062 .219 .156 .375
SHWSR170X750N .344 .062 .200 .170 .750
INS173X140N .344 .062 .205 .173 .140
INS173X250 .344 .062 .205 .173 .250
SHWSR173X375N .344 .062 .205 .173 .375
SHWSR140X062N .349 .047 .248 .140 .062
SHWSR188X180N .350 .067 .240 .188 .180
SHWSR150X090N .355 .040 .250 .150 .090
SHWSR176X387N .372 .062 .201 .176 .387
SHWSR127X070N .375 .040 .190 .125 .070
SHWSR125X125N .375 .040 .187 .125 .125
SHWSR125X300N .375 .050 .253 .125 .300
SHWSR170X026N .375 .062 .241 .170 .026
SHWSR170X026N .375 .062 .241 .170 .026
SHWSR171X062N .375 .031 .195 .171 .062
SHSWSR171X250N .375 .040 .250 .171 .250
SHWSR174X050N .375 .050 .250 .174 .050
SHWSR187X140N .375 .031 .245 .187 .140
SHWSR194X120N .375 .193 .281 .194 .120
SHWSR197X213N .375 .062 .250 .197 .213
SHWSR196X120N .380 .197 .264 .196 .120
SHWSR196X125N .380 .065 .254 .196 .125
SHWSR145X031N .385 .062 .240 .145 .031
SHWSR203X078N .390 .078 .313 .203 .078
SHWSR159X062N .393 .047 .194 .159 .062
INS200X250N .399 .062 .260 .200 .250
INS200X3/8N .399 .063 .260 .200 .375
WS-0399-0200-0500 .399 .062 .263 .200 .500
WS-0399-0200-0750 .399 .062 .260 .200 .750
WS-0400-0156-0046 .400 .046 .243 .156 .046
WS-0400-0200-0375 .400 .062 .260 .200 .375
WS-0402-0201-0118 .402 .079 .276 .201 .118
WS-0402-0201-0197 .402 .079 .276 .201 .197
WS-0402-0201-0354 .402 .079 .276 .201 .354
WS-0408-0197-0187 .408 .062 .240 .197 .187
WS-0408-0215-0194 .408 .062 .238 .215 .194
WS-0425-0165-0030 .425 .062 .305 .165 .030
WS-0425-0210-0295 .425 .067 .312 .210 .295
WS-0425-0250-0062 .425 .062 .310 .250 .062
WS-0428-0308-0047 .428 .125 .350 .308 .047
WS-0433-0199-0125 .433 .062 .312 .199 .125
WS-0437-0193-0040 .437 .060 .278 .193 .040
WS-0437-0194-0031 .437 .062 .240 .194 .031
WS-0437-0201-0050-BV .437 .050 .281 .201 .050
WS-0437-0256-0109 .437 .060 .355 .256 .109
WS-0438-0203-0093 .438 .031 .267 .203 .093
WS-0438-0203-0094 .438 .062 .267 .203 .094
WS-0440-0196-0141 .440 .040 .303 .196 .141
WS-0450-0195-0460 .450 .125 .250 .195 .460
WS-0472-0160-0118 .472 .083 .216 .160 .118
WS-0480-0136-0190-CH .480 .050 .333 .136 .190
WS-0480-0240-0157 .480 .079 .315 .240 .157
WS-0480-0240-0236 .480 .079 .315 .240 .236
WS-0480-0240-0315 .480 .079 .315 .240 .315
WS-0496-0212-0127 .496 .085 .305 .212 .127
WS-0500-0150-0062 .500 .062 .330 .150 .062
WS-0500-0157-0680 .500 .060 .369 .157 .680
WS-0500-0171-0406 .500 .062 .250 .171 .406
WS-0500-0172-0125 .500 .187 .250 .172 .125
WS-0500-0172-0140 .500 .078 .312 .172 .140
WS-0500-0172-0156 .500 .187 .250 .172 .156
WS-0500-0176-0050 .500 .062 .243 .176 .050
WS-0500-0189-0249 .500 .062 .250 .189 .249
WS-0500-0193-0031 .500 .031 .318 .193 .031
WS-0500-0194-0187 .500 .250 .312 .194 .187
WS-0500-0194-0250 .500 .250 .312 .194 .250
WS-0500-0196-0158 .500 .125 .300 .196 .158
WS-0500-0196-0187 .500 .125 .277 .196 .187
WS-0500-0219-0047 .500 .125 .281 .219 .047
WS-0500-0250-0250 .500 .062 .375 .250 .250
WS-0500-0250-0312 .500 .125 .375 .250 .312
WS-0500-0250-0440 .500 .060 .380 .250 .440
WS-0500-0250-0510 .500 .060 .375 .250 .510
WS-0500-0252-0031 .500 .062 .312 .252 .031
WS-0500-0255-0188-CH .500 .031 .375 .255 .188
WS-0504-0265-0150 .504 .160 .312 .265 .150
WS-0505-0260-0094 .505 .062 .312 .260 .094
WS-0510-0255-0141 .510 .062 .310 .255 .141
WS-0513-0260-0125 .513 .062 .312 .260 .125
WS-0513-0260-0141 .513 .062 .312 .260 .141
WS-0513-0260-0187 .513 .062 .312 .260 .187
WS-0513-0260-0250 .513 .062 .312 .260 .250
WS-0513-0260-0500 .513 .062 .312 .260 .500
WS-0515-0260-0375 .515 .062 .311 .260 .375
WS-0546-0275-1000 .546 .063 .375 .275 1.000
WS-0550-0255-0422 .550 .062 .372 .255 .422
WS-0559-0319-0236 .559 .098 .394 .319 .236
WS-0559-0319-0315 .559 .098 .394 .319 .315
WS-0559-0319-0473 .559 .098 .394 .319 .473
WS-0559-0319-0630 .599 .098 .394 .319 .630
WS-0562-0260-0060-BV .562 .060 .375 .260 .060
WS-0563-0380-0220 .563 .030 .440 .380 .220
WS-0566-0260-0065 .566 .090 .374 .260 .065
WS-0570-0257-0100 .570 .135 .422 .257 .100
WS-0581-0196-0158 .581 .120 .300 .196 .158
WS-0591-0165-0079 .591 .059 .311 .165 .079
WS-0600-0250-0100 .600 .325 .447 .250 .100
WS-0600-0250-0125 .600 .125 .370 .250 .125
WS-0600-0250-0500 .600 .125 .375 .250 .500
WS-0620-0316-0150 .620 .060 .502 .316 .150
WS-0620-0316-0500 .620 .062 .370 .316 .500
WS-0620-0320-0093 .620 .063 .360 .320 .093
WS-0620-0320-0125 .620 .062 .360 .320 .125
WS-0620-0320-0250 .620 .062 .360 .320 .250
WS-0620-0320-0375 .620 .062 .360 .320 .375
WS-0620-0320-0500 .620 .062 .360 .320 .500
WS-0620-0320-0625 .620 .062 .360 .320 .625
WS-0620-0330-0379 .620 .065 .380 .330 .379
WS-0625-0252-0125 .625 .062 .343 .252 .125
WS-0625-0252-0250 .625 .062 .343 .252 .250
WS-0625-0253-0090 .625 .062 .311 .253 .090
WS-0625-0255-0187 .625 .062 .322 .255 .187
WS-0625-0260-0750 .625 .125 .400 .260 .750
WS-0625-0320-0139 .625 .066 .405 .320 .139
WS-0625-0380-0252 .625 .060 .504 .380 .252
WS-0625-0390-0342 .625 .125 .485 .390 .342
WS-0630-0171-0046 .630 .031 .248 .171 .046
WS-0630-0254-0187 .630 .062 .375 .254 .187
WS-0630-0260-0125 .630 .062 .327 .260 .125
WS-0640-0195-0062 .640 .062 .380 .195 .062
WS-0640-0375-0075 .640 .063 .500 .375 .075
WS-0656-0382-0672 .656 .109 .531 .382 .672
WS-0670-0382-0025 .670 .040 .444 .382 .025
WS-0687-0201-0060 .687 .060 .256 .201 .060
WS-0687-0437-0500 .687 .062 .562 .437 .500
WS-0690-0257-0060 .690 .090 .485 .257 .060
WS-0693-0328-0125 .693 .062 .437 .328 .125
WS-0709-0322-0079 .709 .059 .469 .322 .079
WS-0710-0420-0420 .710 .075 .470 .420 .420
WS-0743-0383-0265 .743 .080 .502 .383 .265
WS-0743-0383-0312 .743 .078 .502 .383 .312
WS-0744-0375-0200 .744 .280 .620 .375 .200
WS-0745-0375-0750 .745 .062 .500 .375 .750
WS-0748-0246-0079 .748 .059 .512 .246 .079
WS-0748-0358-0118 .748 .059 .482 .358 .118
WS-0750-0114-0041 .750 .090 .260 .114 .041
WS-0750-0250-0062 .750 .125 .500 .250 .062
WS-0750-0250-0304 .750 .102 .360 .250 .304
WS-0750-0250-0313 .750 .020 .313 .250 .313
WS-0750-0250-0468 .750 .156 .375 .250 .468
WS-0750-0256-0101 .750 .150 .341 .256 .101
WS-0750-0265-0093 .750 .125 .375 .265 .093
WS-0750-0265-0125 .750 .075 .437 .265 .125
WS-0750-0266-0188 .750 .062 .350 .266 .188
WS-0750-0266-0218 .750 .093 .380 .266 .218
WS-0750-0280-0250 .750 .125 .500 .280 .250
WS-0750-0281-0094 .750 .093 .500 .281 .094
WS-0750-0310-0250 .750 .190 .500 .310 .250
WS-0750-0312-0250 .750 .062 .437 .312 .250
WS-0750-0320-0313 .750 .062 .500 .320 .313
WS-0750-0330-0750 .750 .090 .440 .330 .750
WS-0750-0375-0062 .750 .125 .500 .375 .062
WS-0750-0375-0125 .750 .062 .500 .375 .125
WS-0750-0375-0187 .750 .062 .500 .375 .187
WS-0750-0375-0195 .750 .125 .500 .375 .195
WS-0750-0375-0242 .750 .070 .496 .375 .242
WS-0750-0378-0245 .750 .078 .505 .378 .245
WS-0750-0383-0135 .750 .080 .502 .383 .135
WS-0750-0383-0360 .750 .125 .505 .383 .360
WS-0750-0385-0060-BV .750 .060 .500 .385 .060
WS-0750-0385-0500 .750 .094 .625 .385 .500
WS-0750-0391-0219-CH .750 .062 .500 .391 .219
WS-0750-0470-0174 .750 .066 .625 .470 .174
WS-0750-0503-0174 .750 .066 .625 .503 .174
WS-0750-0505-0312 .750 .062 .620 .505 .312
WS-0755-0385-0250 .755 .078 .505 .385 .250
WS-0760-0320-0062 .760 .031 .368 .320 .062
WS-0787-0199-0354 .787 .079 .276 .199 .354
WS-0787-0323-0081 .787 .029 .400 .323 .081
WS-0787-0327-0157-CH .787 .268 .472 .327 .157
WS-0825-0310-0190 .825 .060 .435 .310 .190
WS-0875-0190-0141 .875 .140 .343 .190 .141
WS-0875-0256-0156 .875 .031 .375 .256 .156
WS-0875-0256-0218 .875 .031 .375 .256 .218
WS-0875-0375-1000 .875 .062 .500 .375 1.000
WS-0875-0385-0969-CH .875 .112 .502 .385 .969
WS-0875-0440-0375 .875 .125 .630 .440 .375
WS-0875-0445-0500 .875 .100 .530 .445 .500
WS-0875-0500-0250 .875 .062 .625 .500 .250
WS-0875-0500-0529 .875 .046 .597 .500 .529
WS-0875-0515-0062 .875 .027 .616 .515 .062
WS-0875-0520-0395 .875 .110 .625 .520 .395
WS-0880-0505-0220 .880 .030 .680 .505 .220
WS-0910-0515-0275 .910 .050 .780 .515 .275
WS-0925-0500-0370 .925 .080 .626 .500 .370
WS-0938-0253-0170 .938 .125 .440 .253 .170
WS-0944-0480-1690 .944 .125 .575 .480 1.690
WS-0945-0335-0118-CH .945 .118 .591 .335 .118
WS-0965-0325-0236-TPR .965 .265 .540 .325 .236
WS-0980-0380-0260 .980 .120 .556 .380 .260
WS-1000-0265-0075 1.000 .060 .425 .265 .075
WS-1000-0375-0195 1.000 .125 .500 .375 .195
WS-1000-0390-0400 1.000 .120 .520 .390 .400
WS-1000-0390-0700 1.000 .120 .520 .390 .700
WS-1031-0748-0150 1.031 .049 .811 .748 .150
WS-1031-0752-0250 1.031 .050 .811 .752 .250
WS-1068-0630-0521 1.068 .062 .896 .630 .521
WS-1102-0630-0512 1.102 .098 .787 .630 .512
WS-1105-0515-0281 1.105 .125 .752 .515 .281
WS-1105-0525-0281 1.105 .125 .740 .525 .281
WS-1120-0875-0219 1.120 .132 .935 .875 .219
WS-1124-0758-0032 1.124 .032 .875 .758 .032
WS-1125-0750-0313 1.125 .062 .875 .750 .313
WS-1130-0750-0313 1.130 .062 .880 .750 .313
WS-1194-0602-0868 1.194 .062 .715 .602 .868
WS-1200-0600-0867 1.200 .125 .715 .600 .867
WS-1240-0360-1110 1.240 .070 .900 .360 1.110
WS-1250-0437-0375 1.250 .125 .650 .437 .375
WS-1250-0520-0760 1.250 .120 .660 .520 .760
WS-1250-0630-0630 1.250 .125 .730 .630 .630
WS-1251-0471-0406 1.251 .062 .528 .471 .406
WS-1257-0506-0186 1.257 .187 .776 .506 .186
WS-1500-0530-0425 1.500 .313 .740 .530 .425
WS-1500-0625-0187 1.500 .187 .875 .625 .187
WS-1500-0625-0187 1.500 .187 .875 .625 .187
WS-1500-1245-0300 1.500 .063 1.345 1.245 .300
WS-1575-0768-0661 1.575 .126 .866 .768 .661
WS-1590-0400-0185 1.590 .190 .625 .400 .185
WS-1625-0530-0735 1.625 .375 .740 .530 .735
WS-1630-1290-0240 1.630 .075 1.350 1.290 .240
WS-1989-1326-0305 1.989 .129 1.743 1.326 .305
WS-2144 .500 .375 .312 .194 .187
WS-2708 .399 .062 .276 .200 .250
WS-3323 .218 .040 .135 .115 .031
WSM-2000-1270-9000 20.0 MM 1.5 MM 14.3 MM 12.7 MM 9.0 MM
WS-0562-0260-0104 .562 .046 .300 .260 .104
WS-0375-0116-0156 .375 .078 .193 .116 .156
WS-0565-0248-0250 .565 .062 .375 .248 .250
WS-2065-0806-0500 2.065 .125 1.050 .806 .500
WS-0551-0248-0250 .551 .062 .380 .248 .250
WS-3589 .513 .031 .312 .260 .250
WS-0513-0260-0750 .513 .062 .312 .260 .750
WS-1525-0645-0500 1.525 .062 .750 .645 .500
WS-0563-0255-0430 .563 .060 .372 .255 .430
WS-1000-0382-0562 1.000 .062 .500 .382 .562
WS-0365-0170-0250 .365 .062 .203 .170 .250
WS-0500-0196-0062 .500 .062 .308 .196 .062
WS-0324-0140-0031 .324 .062 .204 .140 .031
WS-0743-0376-0187 .743 .062 .437 .376 .187
WS-0395-0200-0397 .395 .125 .260 .200 .397
WS-0591-0276-0630 .591 .079 .394 .276 .630
WS-0438-0125-0030 .438 .060 .350 .125 .030
WS-1000-0406-0125 1.000 .125 .547 .406 .125
WS-0750-0170-0250 .750 .065 .320 .170 .250
WS-0500-0200-0312 .500 .062 .318 .200 .312
WS-0375-0187-0139-CH .375 .031 .245 .187 .139
WS-0750-0190-0796 .750 .093 .320 .190 .796
WS-3750 .500 .062 .312 .200 .312
WS-0625-0380-0312 .625 .062 .500 .380 .312
WS-0625-0140-0025 .625 .060 .219 .140 .025
WS-0500-0251-0563 .500 .062 .375 .251 .563
WS-0850-0292-0250-CH .850 .188 .500 .292 .250
WS-0740-0266-0343 .740 .093 .375 .266 .343
WS-0750-0312-0125 .750 .062 .375 .312 .125
WS-0312-0125-0312 .312 .058 .185 .125 .312
WS-0495-0200-0187 .495 .065 .312 .200 .187
WS-0750-0375-0425 .750 .063 .590 .375 .425
WS-0312-0144-0125 .312 .046 .234 .144 .125
WS-0490-0200-0093 .490 .062 .281 .200 .093
WS-0730-0315-0150 .730 .125 .500 .315 .150
WS-0525-0265-0500 .525 .063 .370 .265 .500
WS-0290-0140-0375 .290 .046 .170 .140 .375
WS-0562-0188-0250 .562 .062 .312 .188 .250
WS-3898 .290 .234 .170 .140 .375
WS-0709-0244-0079 .709 .059 .469 .244 .079
WS-0500-0310-0225 .500 .035 .370 .310 .225
WS-0740-0320-0062 .740 .031 .368 .320 .062
WS-0750-0520-0250 .750 .062 .617 .520 .250
WS-0745-0515-0050 .745 .062 .556 .515 .050
WS-1000-0515-0330 1.000 .040 .625 .515 .330
WS-0750-0260-0031 .750 .062 .375 .260 .031
WS-1250-0875-0688 1.250 .062 1.000 .875 .688
WS-1000-0190-0085 1.000 .075 .562 .190 .085
WS-0750-0318-0563 .750 .063 .443 .318 .563
WS-0750-0406-0188 .750 .062 .500 .406 .188
WS-0995-0695-1000 .995 .125 .787 .695 1.000
WS-0513-0260-0625 .513 .062 .312 .260 .625
WS-0875-0260-0250 .875 .039 .313 .260 .250
WS-1160-0377-0060 1.160 .128 .495 .377 .060
WS-0375-0192-0046 .375 .046 .245 .192 .046
WS-0433-0202-0315 .433 .079 .310 .202 .315
WS-0750-0316-0608 .750 .063 .443 .316 .608
WS-1575-0650-1024 1.575 .079 .850 .650 1.024
WS-1250-0750-0844 1.250 .156 1.000 .750 .844
WS-0620-0260-0100 .620 .062 .400 .260 .100
WS-1500-0830-0200 1.500 .400 .980 .830 .200
WS-1250-0380-0125 1.250 .045 .480 .380 .125
WS-0312-0176-0050 .312 .031 .211 .176 .050
WS-1200-0595-0867 1.200 .125 .695 .595 .867
WS-0240-0125-0093 .240 .031 .185 .125 .093
WS-0750-0265-1000 .750 .095 .375 .265 1.000
WS-0875-0450-0375 .875 .062 .532 .450 .375
WS-0625-0190-0156 .625 .110 .344 .190 .156
WS-0235-0115-0062 .235 .046 .145 .115 .062
WS-0745-0391-0155 .745 .100 .545 .391 .155
WS-1500-1000-0313 1.500 .125 1.365 1.000 .313
WS-1880-0820-0250 1.880 .130 1.030 .820 .250
WS-0787-0398-0709 .787 .079 .512 .398 .709
WS-0940-0257-0060 .940 .090 .560 .257 .060
WS-0750-0320-0125 .750 .062 .360 .320 .125
WS-0980-0406-0250 .980 .125 .546 .406 .250
WS-0290-0125-0125 .290 .046 .170 .125 .125
WS-0750-0200-0187 .750 .070 .312 .200 .187
WS-0787-0413-0709 .787 .079 .512 .413 .709
WS-0122-0038-0074-CH .122 .016 .102 .038 .074
Ready to submit your quote? Click the button below to review your quote, then send it on and we will get back to you ASAP on your request!
View My Quote
Part Added to Quote
View Quote (0)
