Special Finish Washers
Special Finish Washers come with an inner diameter ranging from .129 to .197.
|

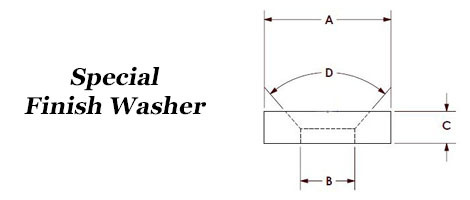

Item
|
A
|
B
|
C
|
D
|
Added
|
Qty.* | |
|---|---|---|---|---|---|---|---|
| WFN-0288-SP | .360 | .142 | .070 | 90° | |||
| WFN-1902-SP | .289 | .130 | .090 | 100° | |||
| WFN-2743-SP | .310 | .129 | .200 | 90° | |||
| WFN-2946-SP | 1.000 | .180 | .270 | 82° | |||
| WFN-3235-SP | .438 | .188 | .110 | 82° | |||
| WFN-3504-SP | .625 | .197 | .177 | 120° | |||
| WFN-3663-SP | 1.250 | .250 | .250 | 82° | |||
| WFN-4350-SP | .499 | .172 | .563 | 82° | 2025-07-24 15:41:07 |
