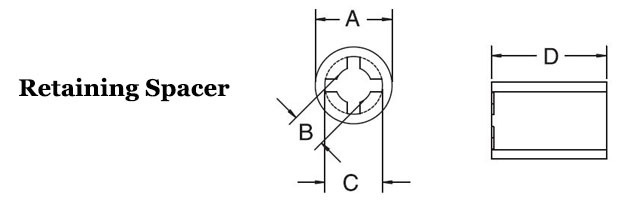

Retaining Spacers
Retaining Spacers slide on screws and securely stay in place for easy assembly.
|
Item
|
SCREW
|
A
|
B
|
C
|
D
|
Added
|
Qty.* | |
|---|---|---|---|---|---|---|---|---|
| SPRT-0250-0078-0125 | 2 | .250 | .078 | .115 | .125 | |||
| SPRT-0250-0078-0187 | 2 | .250 | .078 | .115 | .187 | |||
| SPRT-0250-0078-0250 | 2 | .250 | .078 | .115 | .250 | |||
| SPRT-0250-0078-0312 | 2 | .250 | .078 | .115 | .312 | |||
| SPRT-0250-0078-0375 | 2 | .250 | .078 | .115 | .375 | |||
| SPRT-0250-0078-0437 | 2 | .250 | .078 | .115 | .437 | |||
| SPRT-0250-0078-0500 | 2 | .250 | .078 | .115 | .500 | |||
| SPRT-0250-0078-0562 | 2 | .250 | .078 | .115 | .562 | |||
| SPRT-0250-0078-0625 | 2 | .250 | .078 | .115 | .625 | |||
| SPRT-0250-0078-0687 | 2 | .250 | .078 | .115 | .687 | |||
| SPRT-0250-0078-0750 | 2 | .250 | .078 | .115 | .750 | |||
| SPRT-0250-0078-0812 | 2 | .250 | .078 | .115 | .812 | |||
| SPRT-0250-0078-0875 | 2 | .250 | .078 | .115 | .875 | |||
| SPRT-0250-0078-0937 | 2 | .250 | .078 | .115 | .937 | |||
| SPRT-0250-0078-1000 | 2 | .250 | .078 | .115 | 1.000 | |||
| SPRT-0250-0102-0125 | 4 | .250 | .102 | .156 | .125 | |||
| SPRT-0250-0102-0187 | 4 | .250 | .102 | .156 | .187 | |||
| SPRT-0250-0102-0250 | 4 | .250 | .102 | .156 | .250 | |||
| SPRT-0250-0102-0312 | 4 | .250 | .102 | .156 | .312 | |||
| SPRT-0250-0102-0375 | 4 | .250 | .102 | .156 | .375 | |||
| SPRT-0250-0102-0437 | 4 | .250 | .102 | .156 | .437 | |||
| SPRT-0250-0102-0500 | 4 | .250 | .102 | .156 | .500 | |||
| SPRT-0250-0102-0562 | 4 | .250 | .102 | .156 | .562 | |||
| SPRT-0250-0102-0625 | 4 | .250 | .102 | .156 | .625 | |||
| SPRT-0250-0102-0687 | 4 | .250 | .102 | .156 | .687 | |||
| SPRT-0250-0102-0750 | 4 | .250 | .102 | .156 | .750 | |||
| SPRT-0250-0102-0812 | 4 | .250 | .102 | .156 | .812 | |||
| SPRT-0250-0102-0875 | 4 | .250 | .102 | .156 | .875 | |||
| SPRT-0250-0102-0937 | 4 | .250 | .102 | .156 | .937 | |||
| SPRT-0250-0102-1000 | 4 | .250 | .102 | .156 | 1.000 | |||
| SPRT-0312-0128-0125 | 6 | .312 | .128 | .198 | .125 | |||
| SPRT-0312-0128-0187 | 6 | .312 | .128 | .198 | .187 | |||
| SPRT-0312-0128-0250 | 6 | .312 | .128 | .198 | .250 | |||
| SPRT-0312-0128-0312 | 6 | .312 | .128 | .198 | .312 | |||
| SPRT-0312-0128-0375 | 6 | .312 | .128 | .198 | .375 | |||
| SPRT-0312-0128-0437 | 6 | .312 | .128 | .198 | .437 | |||
| SPRT-0312-0128-0500 | 6 | .312 | .128 | .198 | .500 | |||
| SPRT-0312-0128-0562 | 6 | .312 | .128 | .198 | .562 | |||
| SPRT-0312-0128-0625 | 6 | .312 | .128 | .198 | .625 | |||
| SPRT-0312-0128-0687 | 6 | .312 | .128 | .198 | .687 | |||
| SPRT-0312-0128-0750 | 6 | .312 | .128 | .198 | .750 | |||
| SPRT-0312-0128-0812 | 6 | .312 | .128 | .198 | .812 | |||
| SPRT-0312-0128-0875 | 6 | .312 | .128 | .198 | .875 | |||
| SPRT-0312-0128-0937 | 6 | .312 | .128 | .198 | .937 | |||
| SPRT-0312-0128-1000 | 6 | .312 | .128 | .198 | 1.000 | |||
| SPRT-0328-0119-0185 | -- | .328 | .119 | .198 | .185 | |||
| SPRT-0375-0152-0125 | 8 | .375 | .152 | .240 | .125 | |||
| SPRT-0375-0152-0187 | 8 | .375 | .152 | .240 | .187 | |||
| SPRT-0375-0152-0250 | 8 | .375 | .152 | .240 | .250 | |||
| SPRT-0375-0152-0312 | 8 | .375 | .152 | .240 | .312 | |||
| SPRT-0375-0152-0375 | 8 | .375 | .152 | .240 | .375 | |||
| SPRT-0375-0152-0437 | 8 | .375 | .152 | .240 | .437 | |||
| SPRT-0375-0152-0500 | 8 | .375 | .152 | .240 | .500 | |||
| SPRT-0375-0152-0562 | 8 | .375 | .152 | .240 | .562 | |||
| SPRT-0375-0152-0625 | 8 | .375 | .152 | .240 | .625 | |||
| SPRT-0375-0152-0687 | 8 | .375 | .152 | .240 | .687 | |||
| SPRT-0375-0152-0750 | 8 | .375 | .152 | .240 | .750 | |||
| SPRT-0375-0152-0812 | 8 | .375 | .152 | .240 | .812 | |||
| SPRT-0375-0152-0875 | 8 | .375 | .152 | .240 | .875 | |||
| SPRT-0375-0152-0937 | 8 | .375 | .152 | .240 | .937 | |||
| SPRT-0375-0152-1000 | 8 | .375 | .152 | .240 | 1.000 | |||
| SPRT-0375-0152-1125 | 8 | .375 | .152 | .240 | 1.125 | |||
| SPRT-0500-0177-0125 | 10 | .500 | .177 | .277 | .125 | |||
| SPRT-0500-0177-0187 | 10 | .500 | .177 | .277 | .187 | |||
| SPRT-0500-0177-0250 | 10 | .500 | .177 | .277 | .250 | |||
| SPRT-0500-0177-0312 | 10 | .500 | .177 | .277 | .312 | |||
| SPRT-0500-0177-0375 | 10 | .500 | .177 | .277 | .375 | |||
| SPRT-0500-0177-0437 | 10 | .500 | .177 | .277 | .437 | |||
| SPRT-0500-0177-0500 | 10 | .500 | .177 | .277 | .500 | |||
| SPRT-0500-0177-0562 | 10 | .500 | .177 | .277 | .562 | |||
| SPRT-0500-0177-0625 | 10 | .500 | .177 | .277 | .625 | |||
| SPRT-0500-0177-0687 | 10 | .500 | .177 | .277 | .687 | |||
| SPRT-0500-0177-0750 | 10 | .500 | .177 | .277 | .750 | |||
| SPRT-0500-0177-0812 | 10 | .500 | .177 | .277 | .812 | |||
| SPRT-0500-0177-0875 | 10 | .500 | .177 | .277 | .875 | |||
| SPRT-0500-0177-0937 | 10 | .500 | .177 | .277 | .937 | |||
| SPRT-0500-0177-1000 | 10 | .500 | .177 | .277 | 1.000 | |||
| SPRT-0500-0234-0125 | 1/4 | .500 | .234 | .375 | .125 | |||
| SPRT-0500-0234-0187 | 1/4 | .500 | .234 | .375 | .187 | |||
| SPRT-0500-0234-0250 | 1/4 | .500 | .234 | .375 | .250 | |||
| SPRT-0500-0234-0312 | 1/4 | .500 | .234 | .375 | .312 | |||
| SPRT-0500-0234-0375 | 1/4 | .500 | .234 | .375 | .375 | |||
| SPRT-0500-0234-0437 | 1/4 | .500 | .234 | .375 | .437 | |||
| SPRT-0500-0234-0500 | 1/4 | .500 | .234 | .375 | .500 | |||
| SPRT-0500-0234-0562 | 1/4 | .500 | .234 | .375 | .562 | |||
| SPRT-0500-0234-0625 | 1/4 | .500 | .234 | .375 | .625 | |||
| SPRT-0500-0234-0687 | 1/4 | .500 | .234 | .375 | .687 | |||
| SPRT-0500-0234-0750 | 1/4 | .500 | .234 | .375 | .750 | |||
| SPRT-0500-0234-0812 | 1/4 | .500 | .234 | .375 | .812 | |||
| SPRT-0500-0234-0875 | 1/4 | .500 | .234 | .375 | .875 | |||
| SPRT-0500-0234-0937 | 1/4 | .500 | .234 | .375 | .937 | |||
| SPRT-0500-0234-1000 | 1/4 | .500 | .234 | .375 | 1.000 | |||
| SPRT-0375-0165-0313 | - | .375 | .165 | .194 | .313 | 2025-12-15 16:13:54 |
