Name: Slotted Fillister Machine Screw
Brand: E&T Fasteners
SKU: Slotted Fillister Machine Screw - Scroll down to Request a Quote
Availability: OutOfStock

Description

Nominal Screw Size	0000 thru 00	0 thru 12	1/4 thru 3/4
Nominal Screw Length	Tolerance on Length
Up to 1/2 in., incl.	-0.01	-0.02	-0.03
Over 1/2 to 1 in., incl.	-0.02	-0.03	-0.03
Over 1 to 2 in., incl.	-	-0.06	-0.06
Over 2 in.	-	-0.09	-0.09

May also be available in alternate materials and lengths.

Slotted Fillister Mach Screw Variations

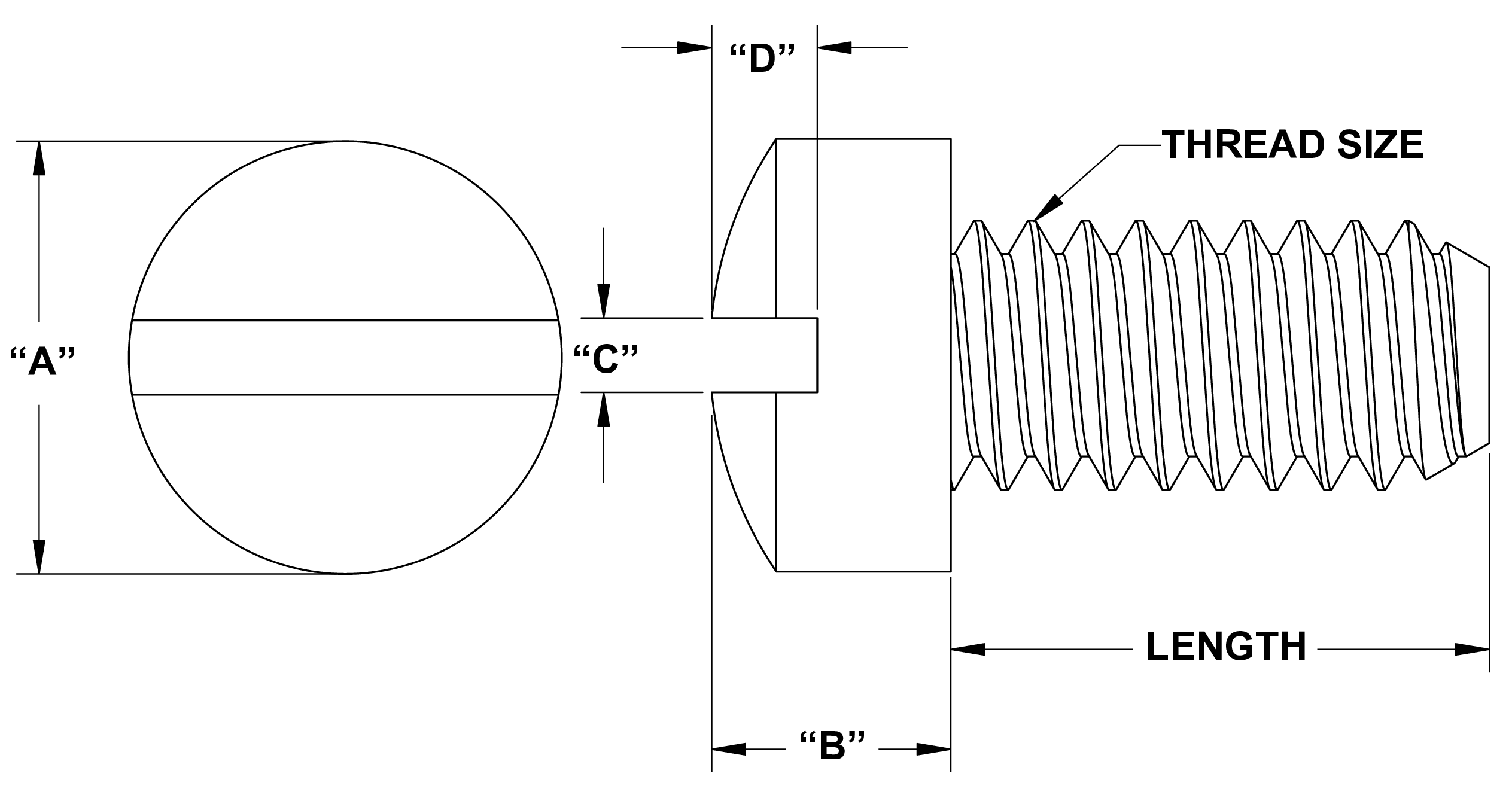

Description	A	B	C	Length	D	Thread Size	Quote
0-80 X 3/32	.090	.050	.020	.093	.025	0-80
0-80 X 1/8	.090	.050	.020	.125	.025	0-80
0-80 X 3/16	.090	.050	.020	.187	.025	0-80
0-80 X 1/4	.090	.050	.020	.250	.025	0-80
0-80 X 9/32	.090	.050	.020	.281	.025	0-80
0-80 X 3/8	.090	.050	.020	.375	.025	0-80
0-80 X 7/16	.090	.050	.020	.437	.025	0-80
0-80 X 1/2	.090	.050	.020	.500	.025	0-80
0-80 X 7/32	.090	.050	.020	.531	.025	0-80
2-56 X 1/8	.132	.075	.027	.125	.031	2-56
2-56 X 5/32	.132	.075	.027	.156	.031	2-56
2-56 X 3/16	.132	.075	.027	.187	0.031	2-56
2-56 X 1/4	.132	.075	.027	.250	.031	2-56
2-56 X 9/32	.132	.075	.027	.281	.031	2-56
2-56 X 5/16	.132	.075	.027	.312	.031	2-56
2-56 X 3/8	.132	.075	.027	.375	.031	2-56
2-56 X 19/32	.132	.075	.027	.391	.031	2-56
2-56 X 7/16	.132	.075	.027	.437	.031	2-56
2-56 X 1/2	.132	.075	.027	.500	.031	2-56
2-56 X 9/16	.132	.075	.027	.562	.031	2-56
2-56 X 5/8	.132	.075	.027	.625	.031	2-56
2-56 X 3/4	.132	.075	.027	.750	.031	2-56
2-56 X 7/8	.132	.075	.027	.875	.031	2-56
2-56 X 1	.132	.075	.027	1.00	.031	2-56
2-56 X 1-1/8	.132	.075	.027	1.125	.031	2-56
2-64 X 3/16	.132	.075	.027	.187	.031	2-64
2-64 X 3/8	.132	.075	.027	.375	.031	2-64
3-48 X 1/8	.153	.086	.031	.125	.036	3-48
3-48 X 3/16	.153	.086	.031	.187	.036	3-48
3-48 X 1/4	.153	.086	.031	.250	.036	3-48
3-48 X 5/16	.153	.086	.031	.312	.036	3-48
3-48 X 3/8	.153	.086	.031	.375	.036	3-48
3-48 X 7/16	.153	.086	.031	.437	.036	3-48
3-48 X 1/2	.153	.086	.031	.500	.036	3-48
3-48 X 3/4	.153	.086	.031	.750	.036	3-48
3-48 X 1	.153	.086	.031	1.00	.036	3-48
3-48 X 1-1/8	.153	.086	.031	1.25	.036	3-48
4-40 X 3/32	.180	.100	.030	.093	.040	4-40
4-40 X 1/8	.180	.100	.030	.125	.040	4-40
4-40 X 5/32	.180	.100	.030	.156	.040	4-40
4-40 X 1/8	.180	.100	.030	.187	.040	4-40
4-40 X 1/4	.180	.100	.030	.250	.040	4-40
4-40 X 9/32	.180	.100	.030	.281	.040	4-40
4-40 X 5/16	.180	.100	.030	.312	.040	4-40
4-40 X 3/8	.180	.100	.030	.375	.040	4-40
4-40 X 7/16	.180	.100	.030	.437	.040	4-40
4-40 X 1/2	.180	.100	.030	.500	.040	4-40
4-40 X 9/16	.180	.100	.030	.562	.040	4-40
4-40 X 5/8	.180	.100	.030	.625	.040	4-40
4-40 X 11/16	.180	.100	.030	.687	.040	4-40
4-40 X 3/4	.180	.100	.030	.750	.040	4-40
4-40 X 7/8	.180	.100	.030	.875	.040	4-40
4-40 X 1	.180	.100	.030	1.00	.040	4-40
4-40 X 1-1/8	.180	.100	.030	1.125	.040	4-40
4-40 X 1-3/16	.180	.100	.030	1.187	.040	4-40
4-40 X 1-1/4	.180	.100	.030	1.25	.040	4-40
4-40 X 1-3/8	.180	.100	.030	1.375	.040	4-40
4-40 X 1-1/2	.180	.100	.030	1.50	.040	4-40
632 X 3/32	.215	.125	.045	.093	.050	6-32
6-32 X 1/8	.215	.125	.045	.125	.050	6-32
6-32 X 5/32	.215	.125	.045	.156	.050	6-32
6-32 X 3/16	.215	.125	.045	.187	.050	6-32
6-32 X 1/4	.215	.125	.045	.250	.050	6-32
6-32 X 5/16	.215	.125	.045	.312	.050	6-32
6-32 X 3/8	.215	.125	.045	.375	.050	6-32
6-32 X 7/16	.215	.125	.045	.437	.050	6-32
6-32 X 1/2	.215	.125	.045	.500	.050	6-32
6-32 X 9/16	.215	.125	.045	.562	.050	6-32
6-32 X 5/8	.215	.125	.045	.625	.050	6-32
6-32 X 11/16	.215	.125	.045	.687	.050	6-32
6-32 X 3/4	.215	.125	.045	.750	.050	6-32
6-32 X 7/8	.215	.125	.045	.875	.050	6-32
6-32 X 1	.215	.125	.045	1.00	.050	6-32
6-32 X 1-1/8	.215	.125	.045	1.125	.050	6-32
6-32 X 1-1/4	.215	.125	.045	1.25	.050	6-32
6-32 X 1-1/2	.215	.125	.045	1.50	.050	6-32
6-32 X 1-5/8	.215	.125	.045	1.625	.050	6-32
6-32 X 1-3/4	.215	.125	.045	1.75	.050	6-32
6-32 X 1-7/8	.215	.125	.045	1.875	.050	6-32
6-32 X 2	.215	.125	.045	2.00	.050	6-32
6-32 X 2-1/4	.215	.125	.045	2.25	.050	6-32
6-40 X 1/4	.215	.125	.045	.250	.050	6-40
6-40 X 3/8	.215	.125	.045	.375	.050	6-40
6-40 X 3/4	.215	.125	.045	.750	.050	6-40
6-40 X 1	.215	.125	.045	1.00	.050	6-40
8-32 X 1/8	.260	.145	.050	.125	.060	8-32
8-32 X 3/16	.260	.145	.050	.187	.060	8-32
8-32 X 1/4	.260	.145	.050	.250	.060	8-32
8-32 X 9/32	.260	.145	.050	.281	.060	8-32
8-32 X 5/16	.260	.145	.050	.312	.060	8-32
8-32 X 3/8	.260	.145	.050	.375	.060	8-32
8-32 X 7/16	.260	.145	.050	.437	.060	8-32
8-32 X 1/2	.260	.145	.050	.500	.060	8-32
8-32 X 5/8	.260	.145	.050	.625	.060	8-32
8-32 X 3/4	.260	.145	.050	.750	.060	8-32
8-32 X 7/8	.260	.145	.050	.875	.060	8-32
8-32 X 1	.260	.145	.050	1.00	.060	8-32
8-32 X 1-1/8	.260	.145	.050	1.125	.060	8-32
8-32 X 1-1/4	.260	.145	.050	1.25	.060	8-32
8-32 X 1-3/8	.260	.145	.050	1.375	.060	8-32
8-32 X 1-1/2	.260	.145	.050	1.50	.060	8-32
8-32 X 1-3/4	.260	.145	.050	1.75	.060	8-32
8-32 X 1-7/8	.260	.145	.050	1.875	.060	8-32
8-32 X 2	.260	.145	.050	2.00	.060	8-32
10-24 X 1/8	.300	.165	.050	.125	.070	10-24
10-24 X 3/16	.300	.165	.050	.187	.070	10-24
10-24 X 1/4	.300	.165	.050	.250	.070	10-24
10-24 X 5/16	.300	.165	.050	.312	.070	10-24
10-24 X 3/8	.300	.165	.050	.375	.070	10-24
10-24 X 1/2	.300	.165	.050	.500	.070	10-24
10-24 X 5/8	.300	.165	.050	.625	.070	10-24
10-24 X 3/4	.300	.165	.050	.750	.070	10-24
10-24 X 1	.300	.165	.050	1.00	.070	10-24
10-24 X 1-1/4	.300	.165	.050	1.25	.070	10-24
10-24 X 1-1/2	.300	.165	.050	1.50	.070	10-24
10-32 X 1/8	.300	.165	.050	.125	.070	10-32
10-32 X 3/16	.300	.165	.050	.187	.070	10-32
10-32 X 1/4	.300	.165	.050	.250	.070	10-32
10-32 X 5/16	.300	.165	.050	.312	.070	10-32
10-32 X 3/8	.300	.165	.050	.375	.070	10-32
10-32 X 7/16	.300	.165	.050	.437	.070	10-32
10-32 X 1/2	.300	.165	.050	.500	.070	10-32
10-32 X 5/8	.300	.165	.050	.625	.070	10-32
10-32 X 3/4	.300	.165	.050	.750	.070	10-32
10-32 X 13/16	.300	.165	.050	.812	.070	10-32
10-32 X 7/8	.300	.165	.050	.875	.070	10-32
10-32 X 1	.300	.165	.050	1.00	.070	10-32
10-32 X 1-1/2	.300	.165	.050	1.25	.070	10-32
10-32 X 1-1/2	.300	.165	.050	1.50	.070	10-32
10-32 X 1-3/4	.300	.165	.050	1.75	.070	10-32
10-32 X 2	.300	.165	.050	2.00	.070	10-32
1/4-20 X 1/4	.400	.230	.060	.250	.095	1/4-20
1/4-20 X 5/16	.400	.230	.060	.312	.095	1/4-20
1/4-20 X 3/8	.400	.230	.060	.375	.095	1/4-20
1/4-20 X 1/2	.400	.230	.060	.500	.095	1/4-20
1/4-20 X 5/8	.400	.230	.060	.625	.095	1/4-20
1/4-20 X 3/4	.400	.230	.060	.750	.095	1/4-20
1/4-20 X 7/8	.400	.230	.060	.875	.095	1/4-20
1/4-20 X 1	.400	.230	.060	1.00	.095	1/4-20
1/4-20 X 1-1/4	.400	.230	.060	1.25	.095	1/4-20
1/4-20 X 1-1/2	.400	.230	.060	1.50	.095	1/4-20
1/4-20 X 1-3/4	.400	.230	.060	1.75	.095	1/4-20
1/4-20 X 2	.400	.230	.060	2.00	.095	1/4-20
1/4-20 X 2-1/2	.400	.230	.060	2.50	.095	1/4-20
1/4-28 X 3/16	.400	.230	.060	.187	.095	1/4-28
1/4-28 X 1/4	.400	.230	.060	.250	.095	1/4-28
1/4-28 X 3/8	.400	.230	.060	.375	.095	1/4-28
1/4-28 X 1/2	.400	.230	.060	.500	.095	1/4-28
1/4-28 X 3/4	.400	.230	.060	.750	.095	1/4-28
1/4-28 X 1	.400	.230	.060	1.00	.095	1/4-28
5/16-18 X 1/2	.425	.230	.070	.500	.100	5/16-18
5/16-18 X 5/8	.425	.230	.070	.625	.100	5/16-18
5/16-18 X 3/4	.425	.230	.070	.750	.100	5/16-18
5/16-18 X 1	.425	.230	.070	1.00	.100	5/16-18
5/16-18 X 1-3/8	.425	.230	.070	1.375	.100	5/16-18
5/16-18 X 1-1/2	.425	.230	.070	1.50	.100	5/16-18
