| Nominal Screw Size |
0000 thru 00 |
0 thru 12 |
1/4 thru 3/4 |
| Nominal Screw Length |
Tolerance on Length |
| Up to 1/2 in., incl. |
-0.01 |
-0.02 |
-0.03 |
| Over 1/2 to 1 in., incl. |
-0.02 |
-0.03 |
-0.03 |
| Over 1 to 2 in., incl. |
- |
-0.06 |
-0.06 |
| Over 2 in. |
- |
-0.09 |
-0.09 |
May also be available in Nylon, PVC, Polypropylene, Phenolic, PTFE, G10, Kel-F®, Delrin/Acetal, Neoprene, Mylar, Glass-Filled Nylon, Peek, CPVC, ABS, PVDF / Kynar, Isoplast, Polycarbonate, Polyethylene, or Ultem®

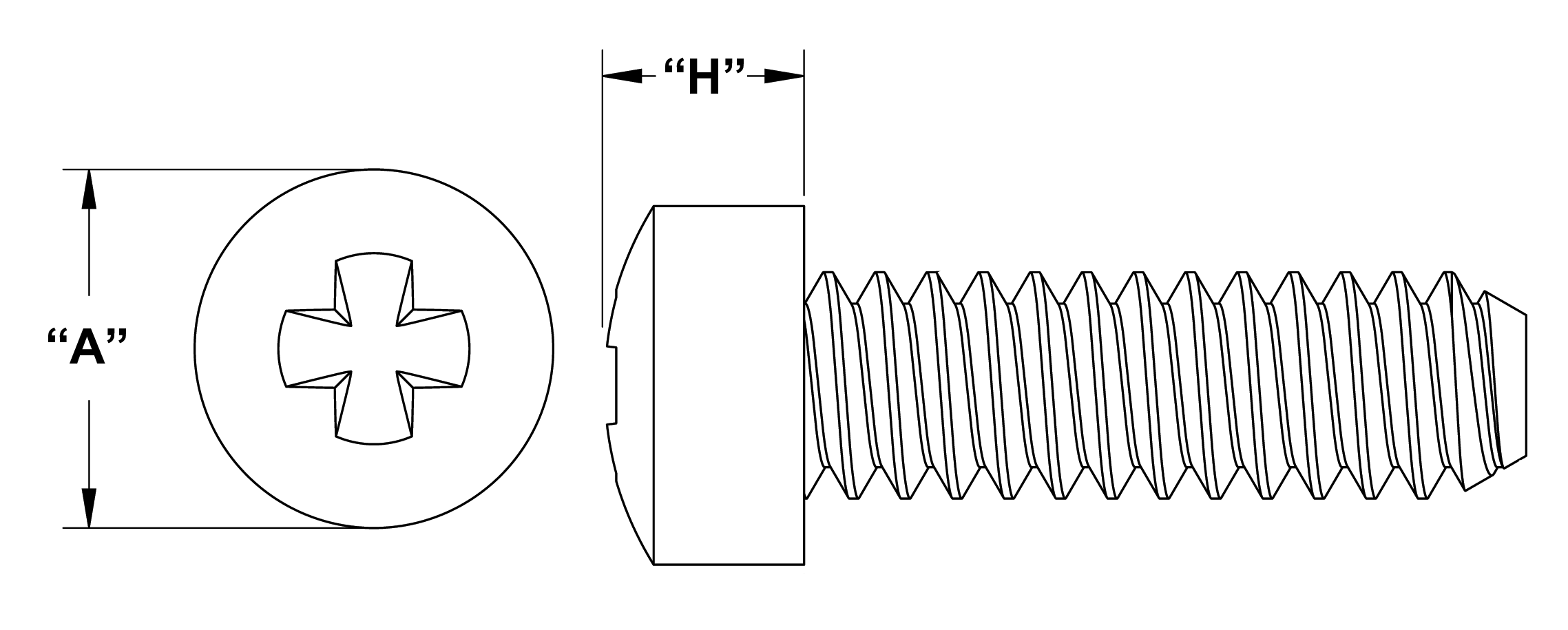

Fillister Phillips Machine Screw Variations
| Description |
A |
H |
Length |
Thread Size |
Quote |
| 632 X 0.094 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
2.388 mm |
632 |
 |
| 632 X 0.125 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
3.175 mm |
632 |
|
| 632 X 0.156 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
3.962 mm |
632 |
|
| 632 X 0.187 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
4.750 mm |
632 |
|
| 632 X 0.25 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
6.350 mm |
632 |
|
| 632 X 0.312 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
7.925 mm |
632 |
|
| 632 X 0.375 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
9.525 mm |
632 |
|
| 632 X 0.437 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
11.100 mm |
632 |
|
| 632 X 0.5 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
12.700 mm |
632 |
|
| 632 X 0.562 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
14.275 mm |
632 |
|
| 632 X 0.625 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
15.875 mm |
632 |
|
| 632 X 0.687 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
17.450 mm |
632 |
|
| 632 X 0.75 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
19.050 mm |
632 |
|
| 632 X 0.875 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
22.225 mm |
632 |
|
| 632 X 1 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
25.400 mm |
632 |
|
| 632 X 1.125 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
28.575 mm |
632 |
|
| 632 X 1.25 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
31.750 mm |
632 |
|
| 632 X 1.5 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
38.100 mm |
632 |
|
| 632 X 1.875 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
47.625 mm |
632 |
|
| 632 X 2 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
50.800 mm |
632 |
|
| 632 X 2.25 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
57.150 mm |
632 |
|
| 632 X 1.625 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
41.275 mm |
632 |
|
| 632 X 1.75 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
44.450 mm |
632 |
|
| 640 X 0.25 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
6.350 mm |
640 |
|
| 640 X 0.375 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
9.525 mm |
640 |
|
| 640 X 0.75 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
19.050 mm |
640 |
|
| 640 X 1 |
5.283 mm - 5.740mm |
2.819 mm - 3.353mm |
25.400 mm |
640 |
|
| 832 X 0.125 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
3.175 mm |
832 |
|
| 832 X 0.187 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
4.750 mm |
832 |
|
| 832 X 0.25 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
6.350 mm |
832 |
|
| 832 X 0.281 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
7.137 mm |
832 |
|
| 832 X 0.312 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
7.925 mm |
832 |
|
| 832 X 0.375 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
9.525 mm |
832 |
|
| 832 X 0.437 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
11.100 mm |
832 |
|
| 832 X 0.5 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
12.700 mm |
832 |
|
| 832 X 0.625 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
15.875 mm |
832 |
|
| 832 X 0.75 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
19.050 mm |
832 |
|
| 832 X 0.875 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
22.225 mm |
832 |
|
| 832 X 1 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
25.400 mm |
832 |
|
| 832 X 1.125 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
28.575 mm |
832 |
|
| 832 X 1.25 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
31.750 mm |
832 |
|
| 832 X 1.375 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
34.925 mm |
832 |
|
| 832 X 1.5 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
38.100 mm |
832 |
|
| 832 X 1.75 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
44.450 mm |
832 |
|
| 832 X 1.875 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
47.625 mm |
832 |
|
| 832 X 2 |
6.350 mm - 6.858mm |
3.378 mm - 3.962mm |
50.800 mm |
832 |
|
| 1024 X 0.125 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
3.175 mm |
1024 |
|
| 1024 X 0.187 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
4.750 mm |
1024 |
|
| 1024 X 0.25 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
6.350 mm |
1024 |
|
| 1024 X 0.312 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
7.925 mm |
1024 |
|
| 1024 X 0.375 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
9.525 mm |
1024 |
|
| 1024 X 0.5 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
12.700 mm |
1024 |
|
| 1024 X 0.625 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
15.875 mm |
1024 |
|
| 1024 X 0.75 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
19.050 mm |
1024 |
|
| 1024 X 1 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
25.400 mm |
1024 |
|
| 1024 X 1.25 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
31.750 mm |
10 |
|
| 1024 X 1.5 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
1-1/2 |
1024 |
|
| 1032 X 0.125 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
3.175 mm |
1032 |
|
| 1032 X 0.187 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
4.750 mm |
1032 |
|
| 1032 X 0.25 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
6.350 mm |
1032 |
|
| 1032 X 0.312 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
7.925 mm |
1032 |
|
| 1032 X 0.375 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
9.525 mm |
1032 |
|
| 1032 X 0.437 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
11.100 mm |
1032 |
|
| 1032 X 0.5 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
12.700 mm |
1032 |
|
| 1032 X 0.625 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
15.875 mm |
1032 |
|
| 1032 X 0.75 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
19.050 mm |
1032 |
|
| 1032 X 0.812 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
20.625 mm |
1032 |
|
| 1032 X 0.875 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
22.225 mm |
1032 |
|
| 1032 X 1 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
25.400 mm |
1032 |
|
| 1032 X 1.062 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
26.975 mm |
1032 |
|
| 1032 X 1.25 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
31.750 mm |
1032 |
|
| 1032 X 1.5 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
38.100 mm |
1032 |
|
| 1032 X 1.75 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
44.450 mm |
1032 |
|
| 1032 X 2 |
7.417 mm - 7.950mm |
3.962 mm - 4.572mm |
50.800 mm |
1032 |
|
| 1/4-20 X 0.25 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
6.350 mm |
1/4-20 |
|
| 1/4-20 X 0.3125 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
7.925 mm |
1/4-20 |
|
| 1/4-20 X 0.375 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
9.525 mm |
1/4-20 |
|
| 1/4-20 X 0.5 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
12.700 mm |
1/4-20 |
|
| 1/4-20 X 0.625 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
15.875 mm |
1/4-20 |
|
| 1/4-20 X 0.75 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
19.050 mm |
1/4-20 |
|
| 1/4-20 X 0.875 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
22.225 mm |
1/4-20 |
|
| 1/4-20 X 1 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
25.400 mm |
1/4-20 |
|
| 1/4-20 X 1.25 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
31.750 mm |
1/4-20 |
|
| 1/4-20 X 1.5 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
38.100 mm |
1/4-20 |
|
| 1/4-20 X 1.75 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
44.450 mm |
1/4-20 |
|
| 1/4-20 X 2 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
50.800 mm |
1/4-20 |
|
| 1/4-20 X 2.5 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
63.500 mm |
1/4-20 |
|
| 1/4-28 X 0.1875 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
4.750 mm |
1/4-28 |
|
| 1/4-28 X 0.25 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
6.350 mm |
1/4-28 |
|
| 1/4-28 X 0.375 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
9.525 mm |
1/4-28 |
|
| 1/4-28 X 0.625 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
15.875 mm |
1/4-28 |
|
| 1/4-28 X 0.75 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
19.050 mm |
1/4-28 |
|
| 1/4-28 X 1 |
9.601 mm - 10.236mm |
4.801 mm - 5.563mm |
25.400 mm |
1/4-28 |
|
| 440 X 0.094 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
2.388 mm |
440 |
|
| 440 X 0.125 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
3.175 mm |
440 |
|
| 440 X 0.141 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
3.581 mm |
440 |
|
| 440 X 0.1875 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
4.750 mm |
440 |
|
| 440 X 0.25 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
6.350 mm |
440 |
|
| 440 X 0.281 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
7.137 mm |
440 |
|
| 440 X 0.3125 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
7.925 mm |
440 |
|
| 440 X 0.375 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
9.525 mm |
440 |
|
| 440 X 0.4375 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
11.100 mm |
440 |
|
| 440 X 0.5 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
12.700 mm |
440 |
|
| 440 X 0.5625 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
14.275 mm |
440 |
|
| 440 X 0.625 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
15.875 mm |
440 |
|
| 440 X 0.875 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
22.225 mm |
440 |
|
| 440 X 1 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
25.400 mm |
440 |
|
| 440 X 1.125 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
28.575 mm |
440 |
|
| 440 X 1.1875 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
30.150 mm |
440 |
|
| 440 X 1.25 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
31.750 mm |
440 |
|
| 440 X 1.375 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
34.925 mm |
440 |
|
| 440 X 1.5 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
38.100 mm |
440 |
|
| 440 X 1.625 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
41.275 mm |
440 |
|
| 440 X 0.6875 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
17.450 mm |
440 |
|
| 440 X 0.75 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
19.050 mm |
440 |
|
| 440 X 1.75 |
4.216 mm - 4.648mm |
2.235 mm - 2.718mm |
44.450 mm |
440 |
|
