Peak Performance: Why PEEK Fasteners Rule High-Tech Engineering
Peak Performance: Why PEEK Fasteners Rule High-Tech Engineering
When a project demands materials that can survive the vacuum of deep space, the corrosive depths of a chemical processing plant, or the searing heat of a semiconductor cleanroom, standard plastics fail. Even high-grade stainless steel and titanium have their limits—especially when weight, electrical conductivity, or magnetic interference are factors.
Enter PEEK (Polyetheretherketone), a space-age thermoplastic that sits at the very absolute top of the polymer hierarchy. PEEK fasteners offer a mind-boggling combination of metal-like strength and plastic-like versatility, making them the ultimate problem-solver for high-tech industries.
What Makes PEEK a Super-Plastic?

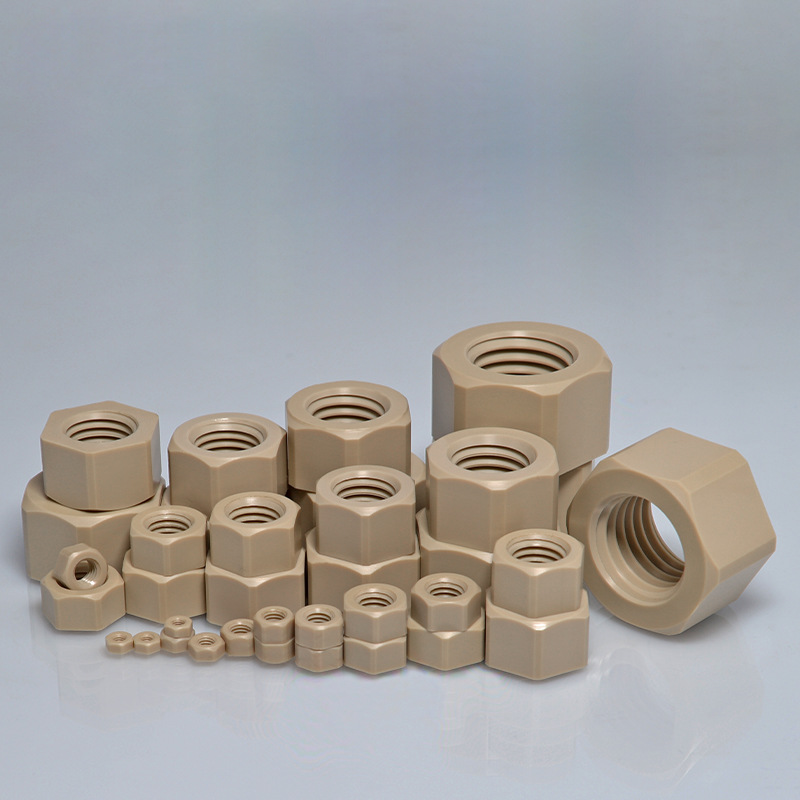

PEEK isn't your average plastic. It belongs to a family of polymers called PAEK (polyaryletherketone), engineered specifically to withstand extreme physical and thermal stress. When machined or injection-molded into screws, bolts, nuts, and washers, PEEK brings an incredible resume of properties to the table:
- Extreme Heat Tolerance: PEEK fasteners maintain their structural integrity at continuous operating temperatures up to 482°F (250°C), and can handle short-term spikes up to 572°F (300°C). They will not melt, warp, or lose clamping force where other plastics puddle.
- Incredible Tensile Strength: While it won’t completely replace heavy-duty structural steel bolts, PEEK has one of the highest strength-to-weight ratios of any thermoplastic. It provides a lightweight alternative that easily outperforms nylon, PVC, and PP under mechanical loads.
- Near-Total Chemical Inertness: PEEK is virtually immune to organic solvents, acids, bases, and high-pressure steam. It undergoes almost no chemical degradation even in highly corrosive environments.
- Low Outgassing for Vacuums: In vacuum chambers and space applications, materials can release trapped gases, contaminating sensitive lenses or sensors. PEEK has exceptionally low outgassing characteristics, making it fully aerospace and cleanroom approved.
- Biocompatibility: PEEK is non-toxic and chemically stable inside the human body. This makes PEEK screws incredibly popular for medical implants and advanced surgical equipment.
PEEK vs. Metal vs. Standard Nylon
To truly appreciate where PEEK belongs, it helps to see how it stacks up against traditional hardware materials.
| Property | Standard Nylon | Stainless Steel | PEEK |
|---|---|---|---|
| Weight | Ultra-lightweight | Heavy | Ultra-lightweight |
| Max Operating Temp | ~185°F (85°C) | >1000°F (537°C) | ~482°F (250°C) |
| Corrosion Resistance | Moderate | Prone to pitting/rust | Exceptional |
| Electrical Conductivity | Non-conductive | Highly conductive | Non-conductive |
| Magnetic Interference | None | High | None |
Where Are PEEK Fasteners Used?
Because PEEK is a premium material, it is rarely used in everyday consumer goods. Instead, you will find PEEK screws and fasteners locking down components in critical infrastructure:
- Aerospace & Satellites: Used to secure wiring harnesses, brackets, and panels where shaving off every single gram saves millions in fuel costs, all while tolerating space vacuums and radiation.
- Semiconductor Manufacturing: PEEK screws hold together the processing equipment that manufactures microchips. They ensure no metallic microscopic particles flake off and ruin multi-million dollar silicon wafers.
- Medical & Pharmaceutical: Found in everything from MRI machines (because PEEK is entirely non-magnetic) to chemical blending vats that require frequent, aggressive sterilization.
- Oil & Gas Exploration: Deployed in deep-sea drilling equipment where fasteners must withstand both crushing marine pressures and highly corrosive sour gas environments.
The Reality Check: The Cost of Performance
With all of these perks, why isn’t everything made of PEEK? It ultimately comes down to cost and manufacturing complexity.
PEEK resin is expensive to synthesize, and because the material has such a high melting point, it requires specialized, high-temperature machinery to injection-mold or machine. A single PEEK hex bolt can easily cost several times more than its stainless steel counterpart.
Therefore, engineering teams treat PEEK as a tactical solution: you use it precisely where metal or cheaper plastics create an absolute bottleneck in your design.
Summary
If your project requires the corrosion resistance and non-conductive nature of plastic, but your environment is too hot, too toxic, or too mechanically demanding for nylon, PEEK fasteners are the gold standard. They bridge the gap between metallurgy and polymer science, proving that sometimes, plastic really can beat steel.
