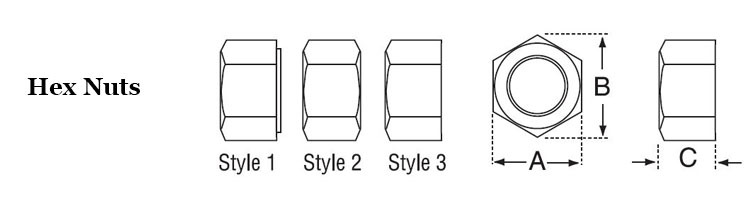

Item
|
Description
|
Style
|
A
|
B
|
C
|
Qty.* | |
|---|---|---|---|---|---|---|---|
| HN10-24N | 10-24 HEX NUT | 1 | .365 | .420 | .125 | ||
| HN10-32N | 10-32 HEX NUT | 1 | .365 | .420 | .125 | ||
| HN11/16-18N | 11/16-18 HEX NUT | 2 | .875 | .995 | .310 | ||
| HN11/16-24N | 11/16-24 HEX NUT | 2 | .875 | .995 | .310 | ||
| HN1/2-13N | 1/2-13 HEX NUT | 1 | .750 | .860 | .437 | ||
| HN1/4-20N | 1/4-20 HEX NUT | 1 | .425 | .485 | .225 | ||
| HN1/4-28N | 1/4-28 HEX NUT | 1 | .425 | .485 | .225 | ||
| HN1/428128N | 1/4-28 HEX NUT | 1 | .375 | .427 | .128 | ||
| HN1/4-32D | 1/4-32 HEX NUT | 1 | .375 | .427 | .128 | ||
| HN1-8N | 1-8 HEX NUT | 1 | 1.470 | 1.700 | .870 | ||
| HN3/4-10N | 3/4-10 HEX NUT | 1 | 1.100 | 1.250 | .640 | ||
| HN3/8-16N | 3/8-16 HEX NUT | 1 | .560 | .630 | .330 | ||
| HN3/8-24N | 3/8-24 HEX NUT | 1 | .560 | .630 | .330 | ||
| HN3/8-32N | 3/8-32 HEX NUT | 1 | .560 | .630 | .330 | ||
| HNP3/8-32N | 3/8-32 HEX NUT / PANEL NUT | 3 | .490 | .560 | .190 | ||
| HN4-40N | 4-40 HEX NUT | 3 | .250 | .275 | .093 | ||
| SMHN4-40N | 4-40 HEX NUT SMALL | 3 | .180 | .205 | .062 | ||
| HN5/16-18N | 5/16-18 HEX NUT | 1 | .500 | .575 | .270 | ||
| HN5/16-24N | 5/16-24 HEX NUT | 1 | .500 | .575 | .270 | ||
| HN5/8-11N | 5/8-11 HEX NUT | 1 | .925 | 1.050 | .550 | ||
| SMHN5/8-11 | 5/8-11 HEX NUT | 2 | .868 | .990 | .312 | ||
| HN5/8-18N | 5/8-18 HEX NUT | 1 | .925 | 1.050 | .550 | ||
| SMHN5/8-18 | 5/8-18 HEX NUT | 2 | .868 | .990 | .312 | ||
| HN6-32N | 6-32 HEX NUT | 1 | .305 | .350 | .110 | ||
| HN6-32093THN | 6-32 HEX NUT SMALL PATTERN | 3 | .250 | .280 | .093 | ||
| HN7/16-20N | 7/16-20 HEX NUT | 3 | .675 | .780 | .380 | ||
| HN7/8-9N | 7/8-9 HEX NUT | 1 | 1.300 | 1.480 | .750 | ||
| HN8-32N | 8-32 HEX NUT | 1 | .335 | .380 | .125 | ||
| HN1-8N | 1-8 HEX NUT | 1 | 1.480 | 1.700 | .520 | ||
| HNT15/32-32N | 15-32-32 HEX NUT / TOGGLE NUT | 2 | .610 | .695 | .125 | ||
| HN7/16-14N | 7/16-14 HEX NUT | 3 | .675 | .780 | .380 |
