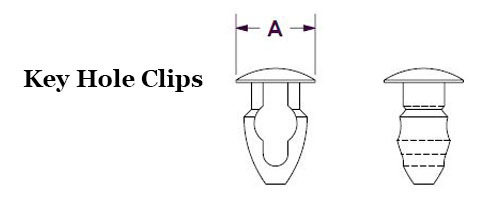

Key Hole Clips
Key Hole Clips are similar to Arrow Clips and Canoe Clips. They provide a fast and inexpensive way to assemble materials using finger pressure. When pushed through a hole, the body of the clip compresses and decompresses to lock securely in place.
|
Item
|
Hole Size
|
Panel Thickness
|
A
|
Qty.* | |
|---|---|---|---|---|---|
| KHC219X125N | .219 | .125 | .344 | ||
| KHC219X093N | .219 | .093 | .344 | ||
| KHC219X156N | .219 | .156 | .344 | ||
| KHC219X187N | .219 | .187 | .344 | ||
| KHC219X219N | .219 | .219 | .344 | ||
| KHC219X250N | .219 | .250 | .344 | ||
| KHC219X281N | .219 | .281 | .344 | ||
| KHC219X312N | .219 | .312 | .344 | ||
| KHC219X343N | .219 | .343 | .344 | ||
| KHC219X375N | .219 | .375 | .344 | ||
| KHC156X250N | .156 | .250 | .313 | ||
| KHC250X093N | .250 | .093 | .500 | ||
| KHC156X187N | .156 | .187 | .313 | ||
| KHC187X125N | .187 | .125 | .312 | ||
| KHC187X156N | .187 | .156 | .312 | ||
| KHC156X125N | .156 | .125 | .313 | ||
| KHC125X187N | .125 | .187 | .250 | ||
| KHC156X156N | .156 | .156 | .313 | ||
| KHC250X375N | .250 | .375 | .500 | ||
| KHC156X218N | .156 | .218 | .313 | ||
| KHC156X281N | .156 | .281 | .313 | ||
| KHC156X312N | .156 | .312 | .313 | ||
| KHC156X093N | .156 | .093 | .313 | ||
| KHC187X093N | .187 | .093 | .312 | ||
| KHC156X343N | .156 | .343 | .313 | ||
| KHC156X375N | .156 | .375 | .313 |
