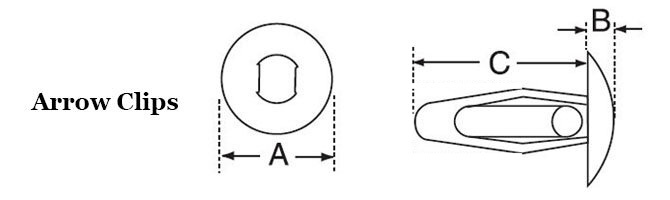

Arrow Clips-Cont.

Arrow clips provide a fast and inexpensive way to assemble materials. When pushed through a pre-drilled or punched hole, the body of the arrow clip compresses and decompresses to lock securely in place.

WB = Webbed

BT = Blunt

Part Number	Hole Size	Panel Thickness	OD	Head Height	Length	Qty.*
AC_1_182X400N	.182/.192	.062/.125	.360	.060	.400	Part AC_1_182X400N Qty
AC_2_131X395N	.182/.192	.062/.125	.270	.060	.395	Part AC_2_131X395N Qty
AC_3_151X390N	.151/.161	.062/.125	.280	.040	.390	Part AC_3_151X390N Qty
AC_4_151X400N	.151/.161	.062/.145	.280	.080	.400	Part AC_4_151X400N Qty
AC_5_213X540N	.213/.223	.125/.187	.370	.060	.540	Part AC_5_213X540N Qty
AC_6_182/540N	.182/.192	.310/.330	.370	.060	.540	Part AC_6_182/540N Qty
AC_7_213X450N	.213/.223	.062/.125	.370	.060	.450	Part AC_7_213X450N Qty
AC_9_250X575N	.250/.260	.125/.187	.484	.060	.575	Part AC_9_250X575N Qty
AC_10_062X125N	.062/.065	.010/.031	.100	.020	.125	Part AC_10_062X125N Qty
AC_11_182X525N	.182/.192	.165/.185	.375	.060	.525	Part AC_11_182X525N Qty
AC_12_195X350N	.195/.200	.035/.065	.370	.056	.350	Part AC_12_195X350N Qty
AC_13_130X310N	.130/.132	.125/.140	.270	.070	.310	Part AC_13_130X310N Qty
AC_14_145X530N	.145/.150	.290/.300	.270	.070	.530	Part AC_14_145X530N Qty
AC_15_118X390N	.118/.122	.062/.125	.280	.060	.390	Part AC_15_118X390N Qty
AC_16_250/260N	.250/.260	.360/.380	.615	.065	.810	Part AC_16_250/260N Qty
AC_17_335X900N	.335/.340	.062/.340	.683	.070	.900	Part AC_17_335X900N Qty
AC_18_160X400N	.160/.165	.032/.125	.280	.080	.400	Part AC_18_160X400N Qty
AC_19_330X895N	.330/.340	.125/.350	.685	.070	.895	Part AC_19_330X895N Qty
AC_20_120X330N	.120/.135	.062/.125	.270	.040	.330	Part AC_20_120X330N Qty
AC_20_120X135N	.120/.135	.062/.125	.270	.040	.330	Part AC_20_120X135N Qty
AC_21_250X630N	.250/.260	.125/.250	.500	.050	.630	Part AC_21_250X630N Qty
AC_22_085X090	.085/.090	.032/.107	.125	.030	.187	Part AC_22_085X090 Qty
AC_23_335X450N	.335/.345	.062/.140	.866	.050	.450	Part AC_23_335X450N Qty
AC_24_250X1.135N	.250/.260	.500/.750	.610	.068	1.135	Part AC_24_250X1.135N Qty
AC_26_240X632N	.240/.260	.095/.218	.750	.055	.632	Part AC_26_240X632N Qty
AC_27_062X187N	.062/.065	.010/.031	.100	.020	.187	Part AC_27_062X187N Qty
AC_28_192X450N	.192/.212	.062/.125	.375	.060	.450	Part AC_28_192X450N Qty
AC_29_330X895N	.330/.340	.125/.350	.475	.070	.895	Part AC_29_330X895N Qty
AC_30_160X400N	.160/.165	.032/.125	.300	.110	.400	Part AC_30_160X400N Qty
AC_31_182X528N	.182/.192	.200/.250	.270	.070	.528	Part AC_31_182X528N Qty
AC_32_155X535N	.155/.162	.300/.310	.270	.070	.535	Part AC_32_155X535N Qty
AC_33_182X525N	.182/.192	.165/.185	.472	.060	.525	Part AC_33_182X525N Qty
AC_34_147X414N	.147	.220/.240	.270	.070	.414	Part AC_34_147X414N Qty
