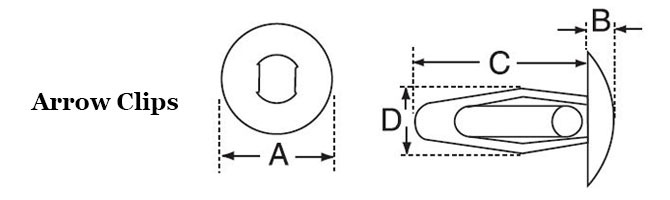

Arrow clips provide a fast and inexpensive way to assemble materials. When pushed through a pre-drilled or punched hole, the body of the arrow clip compresses and decompresses to lock securely in place.


WB = Webbed

BT = Blunt

Item
Hole Size
Panel Thickness
A
B
C
D
Qty.*
AC1182X400N .182 - .192 .062 - .125 .360 .060 .415 .225
CLA-0002 .131 - .135 .062 - .125 .280 .060 .380 .162
AC4151X400N .151 - .161 .062 - .145 .280 .060 .400 .180
AC5213X540N .213 - .223 .062 - .160 .370 .060 .515 .248
CLA-0005-BT .215 - .225 .187 - .260 .370 .060 .515 .248
CLA-0005-SP .213 - .223 .062 - .187 .500 .080 .540 .248
CLA-0006-WB .182 - .192 .310 - .330 .380 .060 .550 .225
AC7213X450N .213 - .223 .062 - .125 .370 .060 .450 .220
AC9250X575N .250 - .260 .125 - .187 .484 .070 .575 .290
AC11182X525N .182 - .192 .165 - .187 .370 .060 .518 .206
AC13130X310N .130 - .132 .125 - .140 .280 .060 .318 .162
AC14145X530N .145 - .150 .290 - .300 .270 .065 .530 .196
CLA-0014-WB .145 - .150 .290 - .300 .270 .065 .530 .196
AC15118X390N .118 - .122 .062 - .125 .280 .060 .390 .150
AC16250X810N .250 - .260 .360 - .380 .610 .065 .810 .275
AC17320X900N .320 - .335 .062 - .340 .683 .070 .900 .375
AC18160X400N .160 - .165 .032 - .125 .280 .080 .400 .186
CLA-0024-WB .250- .260 .500 - .750 .610 .068 1.135 .287
AC28192/212X450N .192 - .212 .062 - .125 .375 .060 .450 .235
CLA-1668 .213 - .223 .062 - .187 .625 .100 .492 .248
CLA-1996 .180 - .190 .040 - .100 .360 .060 .450 .218
CLA-3348 .250 - .260 .360 - .380 .500 .065 .810 .275
AC30165X400N .160-.165 .032-.125 .300 .110 .400 .186
