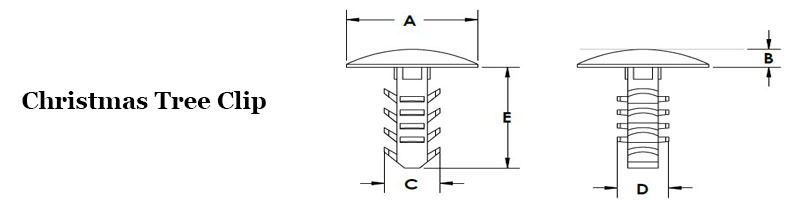

Item
|
Hole Size
|
Panel Thickness
|
A
|
B
|
C
|
D
|
E
|
Qty.* | |
|---|---|---|---|---|---|---|---|---|---|
| XTC125X321/335N | .125 | .062 - .250 | .344 | .062 | .147 | .135 | .335 | ||
| XTC188X848N | .188 | .062 - .750 | .500 | .078 | .210 | .195 | .848 | ||
| XTC125X458N | .125 | .062- .375 | .344 | .062 | .147 | .125 | .458 | ||
| XTC125X208N | .125 | .062 - .125 | .344 | .062 | .147 | .135 | .208 | ||
| XTC125X348N | .188 | .062 - .250 | .500 | .078 | .205 | .190 | .348 | ||
| XTC188X473N | .188 | .062 - .375 | .500 | .078 | .205 | .190 | .473 | ||
| XTC188X598N | .188 | .062 - .500 | .500 | .078 | .205 | .190 | .598 | ||
| XTC188X723N | .188 | .062 - .625 | .500 | .078 | .210 | .195 | .723 |
