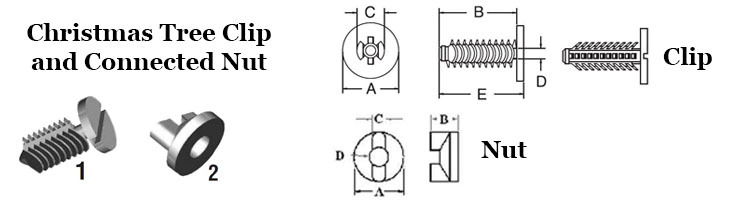

Christmas Tree Clip and Connecting Nut
Christmas Tree Clips offer fast, secure, and easy installation. This Christmas Tree Clip comes with a connected nut.
Push the Christmas Tree Clip into the Nut for easy assembly. The nut is removed by simply unscrewing. For convenience, these two parts are connected and sold as one part, as shown.
|
Item
|
Description
|
A
|
B
|
C
|
D
|
E
|
Qty.* | |
|---|---|---|---|---|---|---|---|---|
| CLX-1167-TRIP (SCREW) | Clip- View 1 | .435 | .750 | .274 | .150 | .820 | ||
| CLX-1167-TRIP-NUT | Nut- View 2 | .560 | .350 | .115 | .250 | --- |
