Wire and Cable Holders - Top Entry
• Gather and direct a single or group of cables at low cost.
• Vertical orientation for top entry and narrow width.
• Regular gate secures cables with tension alone.
• Latch gate locks cables securely.
• Both types install with fingertip pressure into a 3/16" (4.9 mm) diameter hole.
• Bayonet mount self-adjusts to various thicknesses up to .090" (2.3 mm).
|

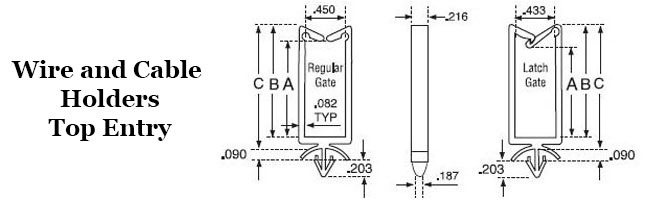

Item
|
Description
|
A
|
B
|
C
|
Qty.* | |
|---|---|---|---|---|---|---|
| HLC-12-LCH | LOCKING | .125 | .335 | .484 | ||
| HLC-12-REG | NON-LOCKING | .160 | .345 | .484 | ||
| HLC-18-LCH | LOCKING | .360 | .560 | .700 | ||
| HLC-18-REG | NON-LOCKING | .385 | .575 | .700 | ||
| HLC-27-LCH | LOCKING | .725 | 1.035 | 1.062 | ||
| HLC-27-REG | NON-LOCKING | .750 | 1.050 | 1.062 | ||
| HLC-35-LCH | LOCKING | 1.035 | 1.235 | 1.375 | ||
| HLC-35-REG | NON-LOCKING | 1.062 | 1.250 | 1.375 |
