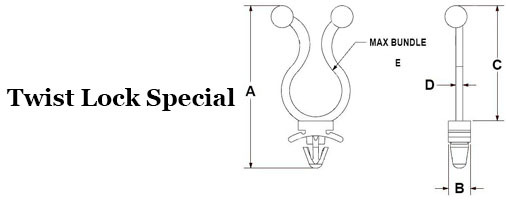

Twist Lock Special
This Twist Lock allows you to wire bundles up to .750.
.187 Hole Diameter
Chassis Thickness of .031 (0,8mm) - .093 (2,4mm)
|
Item
|
A
|
B
|
C
|
D
|
E
|
Qty.* | |
|---|---|---|---|---|---|---|---|
| LPL-3088-SP | 1.258 | .215 | .825 | .065 | 0.25 | ||
| LPL-3089-SP | 1.441 | .215 | .985 | .065 | 0.375 | ||
| LPL-3090-SP | 1.579 | .215 | 1.125 | .065 | 0.500 | ||
| LPL-3091-SP | 1.865 | .215 | 1.425 | .065 | 0.75 |
