Light Duty Cable Clamps
Light Duty Cable Clamps (p-clamps, p clamps) provide an easy solution to binding and securing single or small bundles of cables, wires, and tubing. Quickly and efficiently attach wire and cable bundles to the wall, ceiling, or other surfaces with a single screw.
Our light duty cable clamps virtually eliminate the risk of crushing, bending, cutting and galvanic corrosion of wires, cables and tubing often experienced with metal clamps. No leaks, no flow restrictions, no breaks and no shorts as a result of using nylon/plastic cable clamps.
ST10 = 10% SuperTough
|

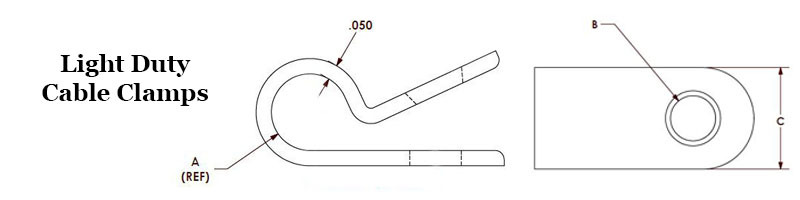

Item
|
A
|
B
|
C
|
D
|
Screw
|
Bundle Dia.
|
Qty.* | |
|---|---|---|---|---|---|---|---|---|
| CC1/4X3/8140N | .250 | .140 | .375 | .410 | #6 | .250 | ||
| CC1/4X3/8170N | .250 | .170 | .375 | .410 | #8 | .250 | ||
| CC1/4X3/8200N | .250 | .200 | .375 | .410 | #10 | .250 | ||
| CC3/16X3/8140N | .187 | .140 | .375 | .430 | #6 | .187 | ||
| CC3/16X3/8170N | .187 | .170 | .375 | .430 | #8 | .187 | ||
| CC3/16X3/8200N | .187 | .200 | .375 | .430 | #10 | .187 | ||
| CC5/16X3/8140N | .312 | .140 | .375 | .495 | #6 | .312 | ||
| CC5/16X3/8170N | .312 | .170 | .375 | .495 | #8 | .312 | ||
| CC5/16X3/8200N | .312 | .200 | .375 | .495 | #10 | .312 | ||
| CC3/8X3/8140N | .375 | .140 | .375 | .595 | #6 | .375 | ||
| CC3/8X3/8170N | .375 | .170 | .375 | .595 | #8 | .375 | ||
| CC3/8X3/8200N | .375 | .200 | .375 | .595 | #10 | .375 | ||
| CC7/16X3/8140N | .437 | .140 | .375 | .574 | #6 | .437 | ||
| CC7/16X3/8170N | .437 | .170 | .375 | .574 | #8 | .437 | ||
| CC7/16X3/8200N | .437 | .200 | .375 | .574 | #10 | .437 | ||
| CC1/2X3/8140N | .500 | .140 | .375 | .574 | #6 | .500 | ||
| CC1/2X3/8170N | .500 | .170 | .375 | .574 | #8 | .500 | ||
| CC1/2X3/8200N | .500 | .200 | .375 | .574 | #10 | .500 | ||
| CC3/16X3/8140N | .187 | .140 | .375 | .378 | #6 | .187 | ||
| CC3/16X3/8170N | .187 | .170 | .375 | .378 | #8 | .187 | ||
| CC3/16X3/8200N | .187 | .200 | .375 | .378 | #10 | .187 | ||
| CC1/8X3/8140N | .125 | .140 | .375 | .329 | #6 | .125 | ||
| CC1/8X3/8170N | .125 | .170 | .375 | .329 | #8 | .125 | ||
| CC1/8X3/8200N | .125 | .200 | .375 | .329 | #10 | .125 |
