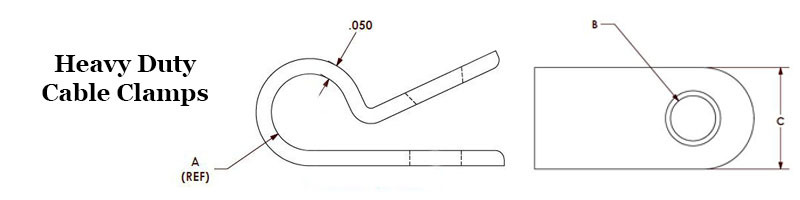

Item
|
A
|
B
|
C
|
Screw
|
Bundle Dia.
|
Qty.* | |
|---|---|---|---|---|---|---|---|
| CC3/16X1/2167N | .187 | .170 | .500 | #8 | .187 | ||
| CC3/16X1/2203N | .187 | .200 | .500 | #10 | .187 | ||
| CC1/4X1/2167N | .250 | .170 | .500 | #8 | .250 | ||
| CC1/4X1/2203N | .250 | .200 | .500 | #10 | .250 | ||
| CC5/16X1/2167N | .312 | .170 | .500 | #8 | .312 | ||
| CC5/16X1/2203N | .312 | .200 | .500 | #10 | .312 | ||
| CC3/8X1/2167N | .375 | .170 | .500 | #8 | .375 | ||
| CC3/8X1/2203N | .375 | .200 | .500 | #10 | .375 | ||
| CC7/16X7/16167N | .437 | .170 | .500 | #8 | .437 | ||
| CC7/16X7/16203N | .437 | .200 | .500 | #10 | .437 | ||
| CC1/2X1/2167N | .500 | .170 | .500 | #8 | .500 | ||
| CC1/2X1/2203N | .500 | .200 | .500 | #10 | .500 |
