Standard Cable Clamps

Standard Cable Clamps

E&T Fasteners

SKU:
Standard Cable Clamps - Scroll down to Request a Quote

E &amp T Fasteners' molded nylon cable clamps secure, insulate and route cable, wiring, tubing, piping, and fibre optics. These tough, durable chemical resistant nylon 6/6 cable clamps are perfect for applications in electronics, automotive, air craft, appliance, and many other industries.

The economical Standard Series has a 3/8" wide contact area and is designed for medium to lightweight applications. All contact edges have full radius for product protection. Sizes are clearly marked on each clamp.

The following are standard sizes available. E &amp T Fasteners will tool non-standard sizes in suitable quantities. Flame retardant nylon 6/6, 2% carbon black nylon 6/6 (U.V. resistant), and polypropylene clamps are available on special order.

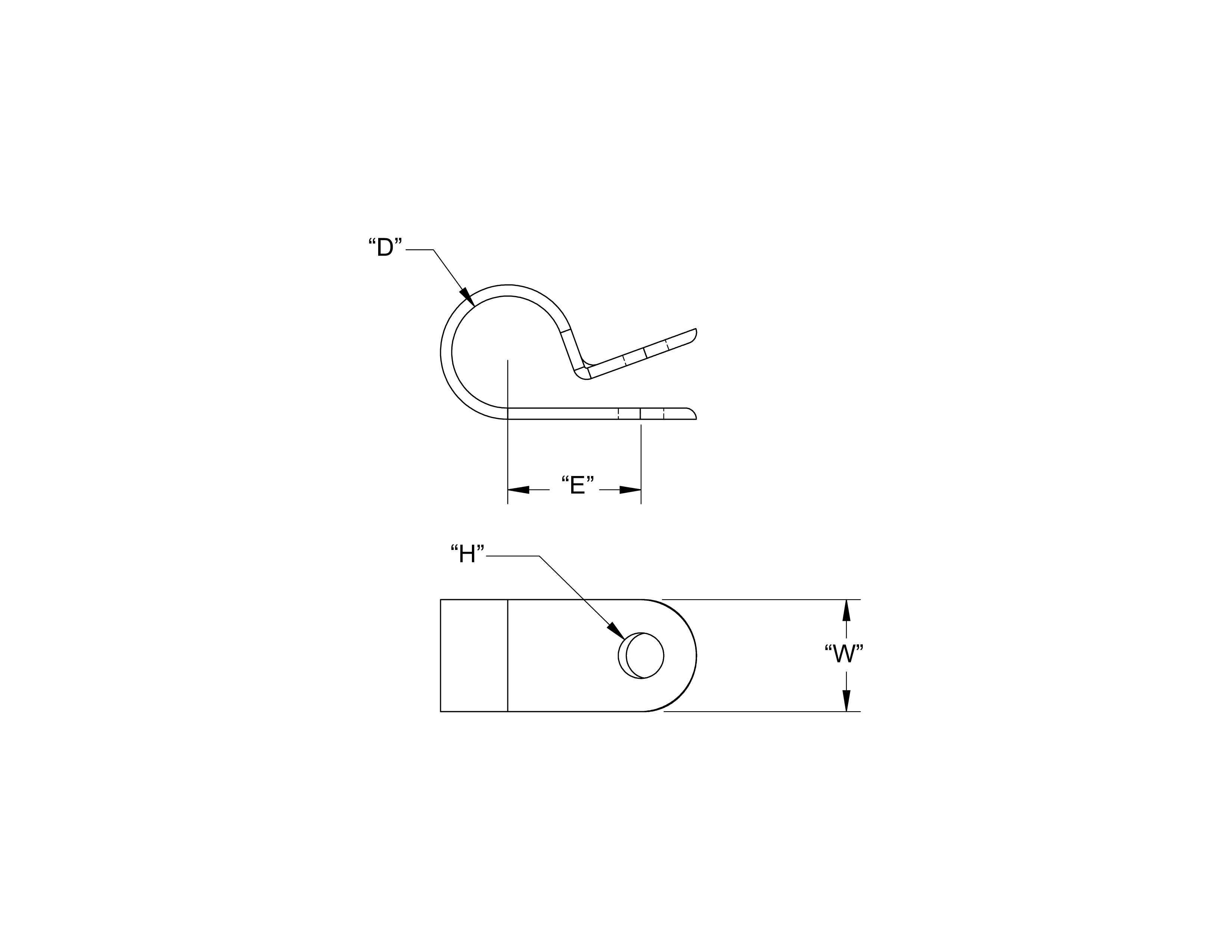

Standard Cable Clamps DimensionsStandard Cable Clamps Dimensions
May also be available in Nylon, PVC, Polypropylene, Phenolic, PTFE, G10, Kel-F®, Delrin/Acetal, Neoprene, Mylar, Glass-Filled Nylon, Peek, CPVC, ABS, PVDF / Kynar, Isoplast, Polycarbonate, Polyethylene, or Ultem®

Standard Cable Clamps Variations

Description D E H W Quote
Std. Cable Clamp 0.125 0.329 0.14 0.375 Request Quote
Std. Cable Clamp 0.1875 0.43 0.14 0.375 Request Quote
Std. Cable Clamp 0.1875 0.378 0.14 0.375 Request Quote
Std. Cable Clamp 0.25 0.41 0.14 0.375 Request Quote
Std. Cable Clamp 0.3125 0.495 0.14 0.375 Request Quote
Std. Cable Clamp 0.375 0.595 0.14 0.375 Request Quote
Std. Cable Clamp 0.4375 0.574 0.14 0.375 Request Quote
Std. Cable Clamp 0.5 0.605 0.14 0.375 Request Quote
Std. Cable Clamp 0.125 0.329 0.167 0.375 Request Quote
Std. Cable Clamp 0.1875 0.43 0.167 0.375 Request Quote
Std. Cable Clamp 0.1875 0.378 0.167 0.375 Request Quote
Std. Cable Clamp 0.25 0.41 0.167 0.375 Request Quote
Std. Cable Clamp 0.3125 0.495 0.167 0.375 Request Quote
Std. Cable Clamp 0.375 0.595 0.167 0.375 Request Quote
Std. Cable Clamp 0.4375 0.574 0.167 0.375 Request Quote
Std. Cable Clamp 0.5 0.605 0.167 0.375 Request Quote
Std. Cable Clamp 0.125 0.329 0.203 0.375 Request Quote
Std. Cable Clamp 0.1875 0.43 0.203 0.375 Request Quote
Std. Cable Clamp 0.1875 0.378 0.203 0.375 Request Quote
Std. Cable Clamp 0.25 0.41 0.203 0.375 Request Quote
Std. Cable Clamp 0.3125 0.495 0.203 0.375 Request Quote
Std. Cable Clamp 0.375 0.595 0.203 0.375 Request Quote
Std. Cable Clamp 0.4375 0.574 0.203 0.375 Request Quote
Std. Cable Clamp 0.5 0.605 0.203 0.375 Request Quote
Std. Cable Clamp 0.5625 0.606 0.203 0.375 Request Quote
Std. Cable Clamp 0.625 0.678 0.203 0.375 Request Quote
!
